Product Details

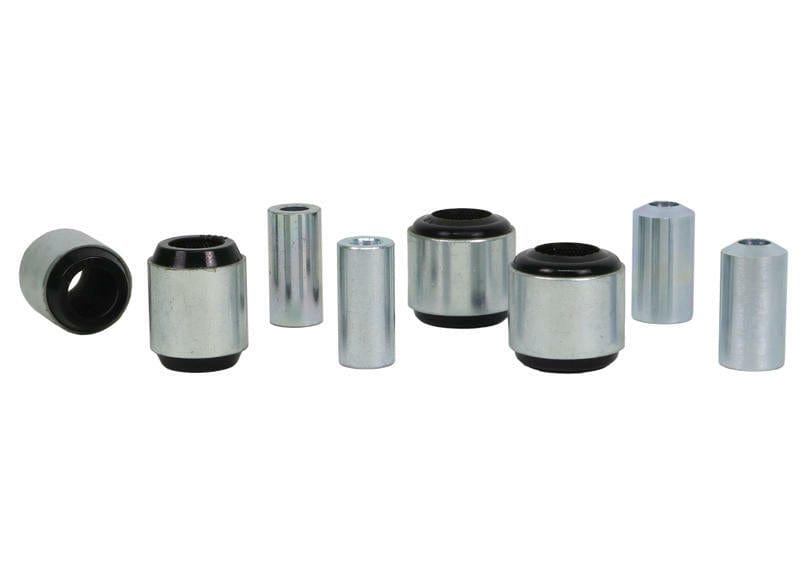

This Whiteline Rear Control Arm Upper Rear Bushing fits the 2014-2016 BMW 228i 2 Series. Whiteline's note for this fit: Fits OEM Arm 33-32-6-792-543 (Left) and 33-32-6-792-544 (Right). Chassis code: F22/F23. Included: 4 shell bushings and 4 tubes. Order it as part number W63593. Position: rear.
Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.
Expect a moderate job of about 2 hours. An alignment is required after installation. Working on the same car? We also list Adjustable Rear Sway Bar Link, Rear Subframe Mount Bushing, and Front Sway Bar Link Assembly for the 228i 2 Series.
Features
- Material: Made from polyurethane.
- Corrosion protection: A protective plating covers the metal components to guard against corrosion.
- Install guide: An install guide comes in the box.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Bonded design: A bonded design adds strength for high load applications.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
Specifications
| Part Number | W63593 |
| Part Name | Control Arm Bushing |
| Vehicle | 2014-2016 BMW 228i 2 Series |
| Chassis Code | F22/F23 |
| Drivetrain | RWD |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 38 mm |
| Bushing 2 Inner Diameter | 12.2 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Fits OEM Arm 33-32-6-792-543 (Left) and 33-32-6-792-544 (Right) |
