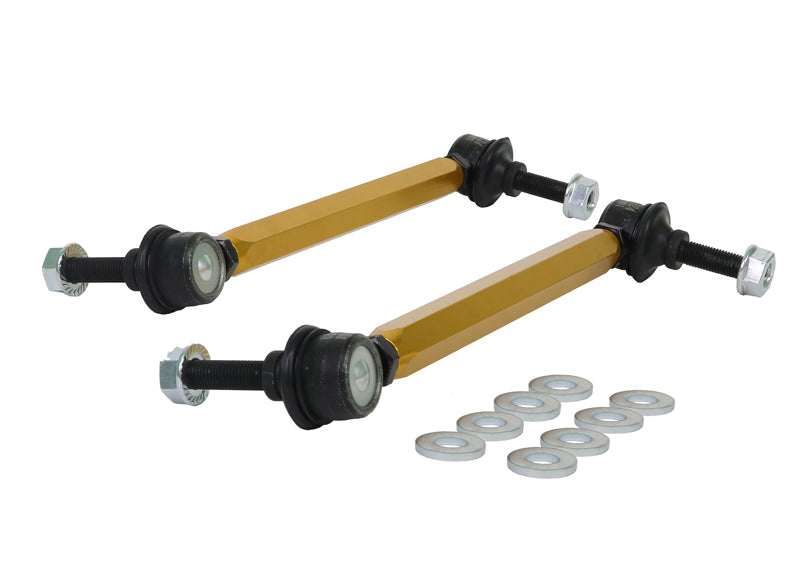

This Whiteline Front Sway Bar Link Assembly fits the 2014-2016 BMW 228i 2 Series (F22/F23). You receive 2 links. Part number KLC140-255. Placement: front. Chassis code: F22/F23. Application note: Adjustable extra heavy duty.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment. To go with it on the 228i 2 Series, see Adjustable Rear Sway Bar Link, Rear Subframe Mount Bushing, and Rear Lower Trailing Arm Bushing.

Features

  • Construction: Made from strong, light alloy.
  • Install guide: Whiteline packs an install guide with it.
  • Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
  • Hardware: Supplied with locking nuts and washers.
  • Pre-greased: Joints arrive pre-greased and ready to install.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
Specifications
Part Number KLC140-255
Part Name Sway Bar Link
Vehicle 2014-2016 BMW 228i 2 Series
Drivetrain RWD
Chassis Code F22/F23
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 250-275 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2014BMW228iRWDAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2015BMW228iRWDAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
2016BMW228iRWDAdjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm.
