Product Details

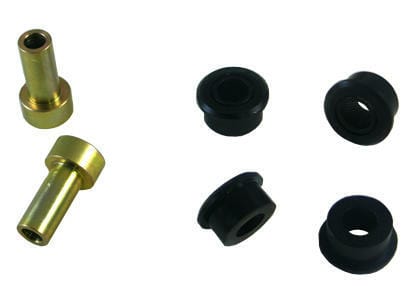

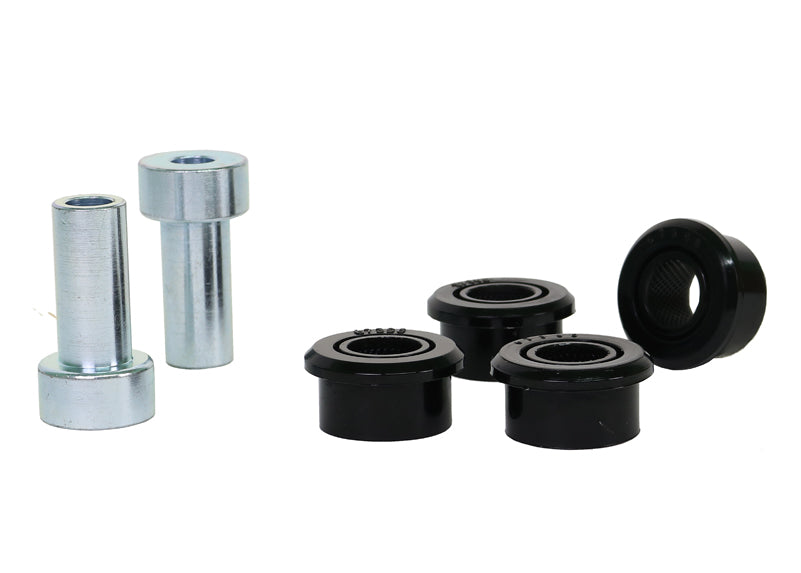

This Whiteline Rear Upper Outer Control Arm Bushing (Standard Repl.) fits the 2007 Subaru Outback 2.5i Basic (BR). Application note: Standard Replacement. Position: rear. The part number is W63397. In the box: 4 bushings and 2 tubes.
Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.
Whiteline rates the install as moderate and lists about 3 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Outback: Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Front Bushing, and 14mm Adjustable Front Camber Bolts.
Features
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Material: Polyurethane construction.
- Corrosion protection: A protective plating covers the metal components to guard against corrosion.
- Finish: Powder coat finish guards the metal against chips and corrosion.
Specifications
| Part Number | W63397 |
| Part Name | Control Arm Bushing |
| Vehicle | 2007 Subaru Outback 2.5i Basic |
| Chassis Code | BR |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 33.6 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Standard Replacement |
