Product Details

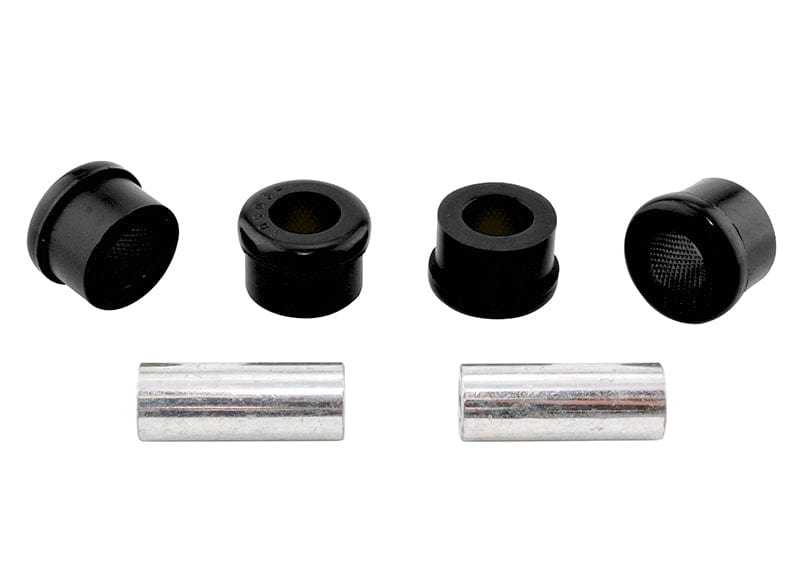

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2003-2025 Subaru Outback Base (BP/BR/BS/BT). This part is for the front of the vehicle. Whiteline part number: W0506. Included: 4 bushings and 2 tubes.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Whiteline rates the install as difficult and lists about 2.5 hours. Plan on a wheel alignment afterward. To go with it on the Outback, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Front Sway Bar Link.

Features

  • Finish: A powder coated finish resists corrosion and wear.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Material: Polyurethane construction.
Specifications
Part Number W0506
Part Name Control Arm Bushing
Vehicle 2003-2025 Subaru Outback Base
Chassis Code BP/BR/BS/BT
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 37.4 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2003SubaruOutbackAWD
2004SubaruOutbackAWD
2005SubaruOutbackAWD
2006SubaruOutbackAWD
2007SubaruOutbackAWD
2008SubaruOutbackAWD
2009SubaruOutbackAWD
2010SubaruOutbackAWD
2011SubaruOutbackAWD
2012SubaruOutbackAWD
2013SubaruOutbackAWD
2014SubaruOutbackAWD
2015SubaruOutbackAWD
2016SubaruOutbackAWD
2017SubaruOutbackAWD
2018SubaruOutbackAWD
2019SubaruOutbackAWD
2020SubaruOutbackAWD
2021SubaruOutbackAWD
2022SubaruOutbackAWD
