Product Details

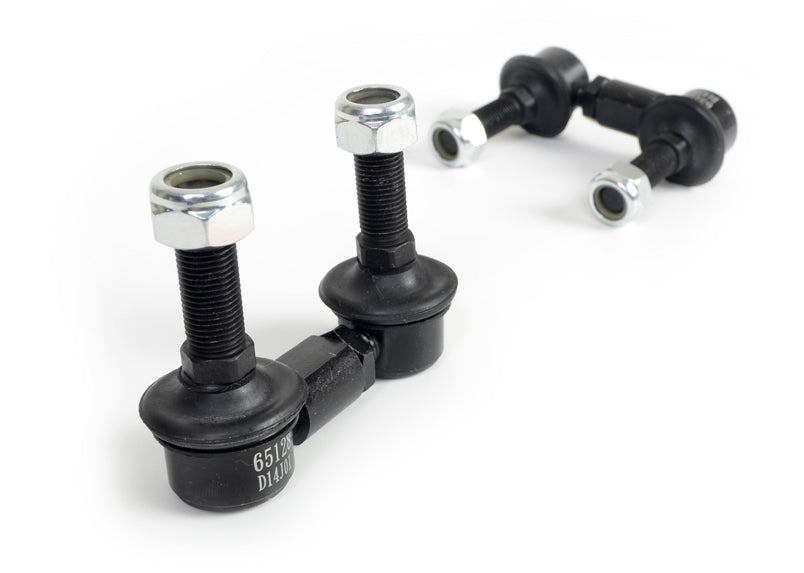

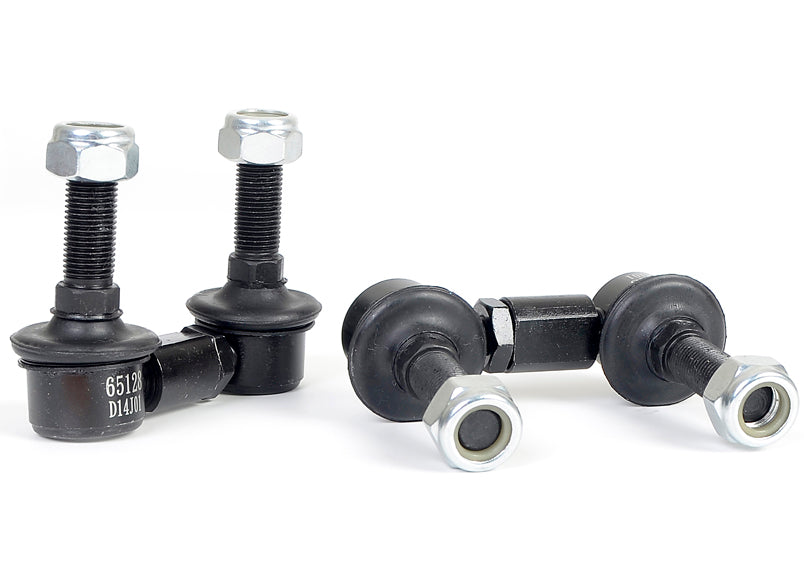

This Whiteline Adjustable Front Sway Bar Link fits the 2010-2014 Subaru Outback (BR/BS). This part is for the front of the vehicle. Order it as part number KLC172. Application note: Adjustable Extra Heavy Duty. In the box: 2 links.
A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.
Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward. To go with it on the Outback, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Heavy Duty 20mm Rear Sway Bar.
Features
- Hardware: Hardware supplied: locking nuts and washers.
- Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
- Material: Built from steel.
- Pre-greased: Joints arrive pre-greased and ready to install.
- Install guide: Step-by-step installation instructions come with it.
- Ball joints: Steel ball joint ends are built for heavy loads and free movement.
Specifications
| Part Number | KLC172 |
| Part Name | Sway Bar Link |
| Vehicle | 2010-2014 Subaru Outback |
| Chassis Code | BR/BS |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 65-75 mm |
| Locking Nuts Included | Yes |
| Material | Steel |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm. |
