Product Details

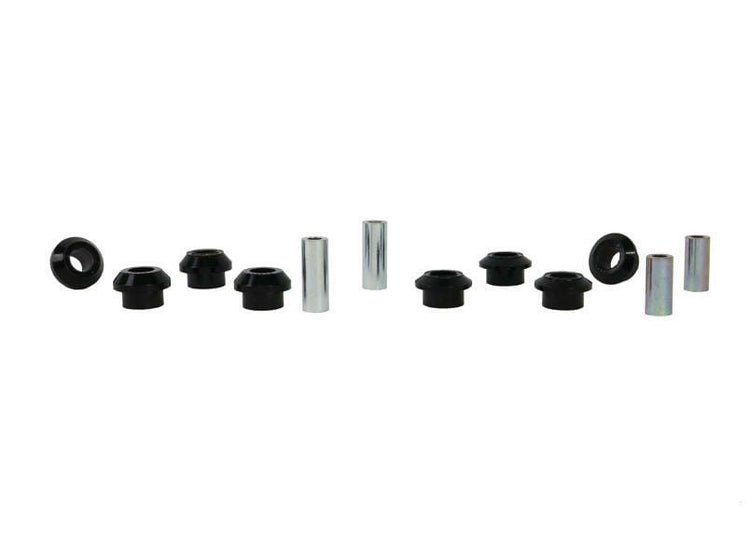

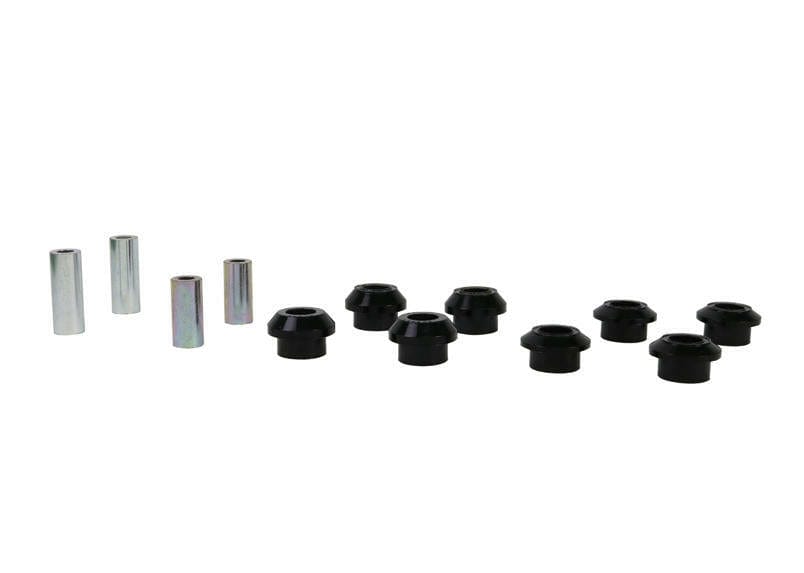

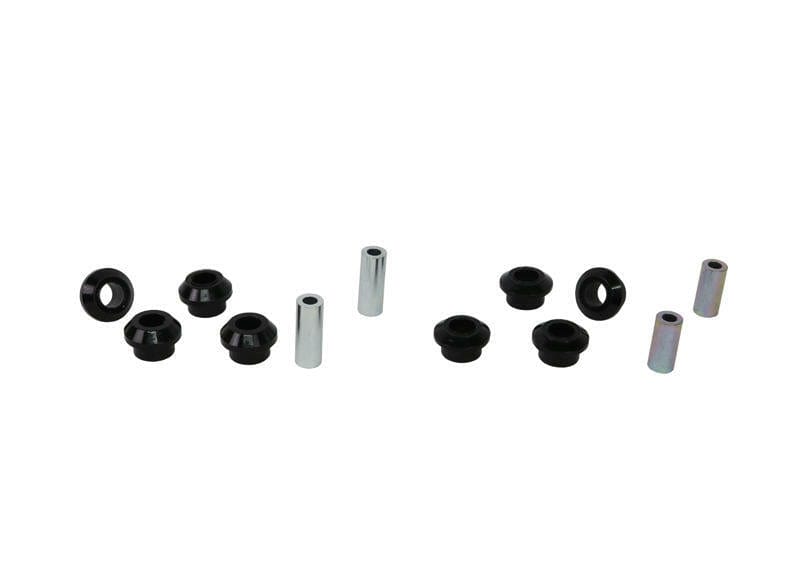

This Whiteline Rear Upper Inner Control Arm Bushing Kit (Standard Repl.) fits the 2016 Subaru BRZ Series.HyperBlue (ZC6). The part number is W63225. It goes on the rear of the vehicle. In the box: 8 bushings and 4 tubes.

Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.

Whiteline rates the install as moderate and lists about 3 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Subaru BRZ: Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Rear Bushing, and Adjustable Front Sway Bar Link.

Features

  • Material: The part is made of polyurethane.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Install guide: Step-by-step installation instructions come with it.
Specifications
Part Number W63225
Part Name Control Arm Bushing
Vehicle 2016 Subaru BRZ Series.HyperBlue
Chassis Code ZC6
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 34 mm
Bushing 2 Inner Diameter 12.3 mm
Bushing Quantity 8 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 8 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2016SubaruBRZRWD
