Product Details

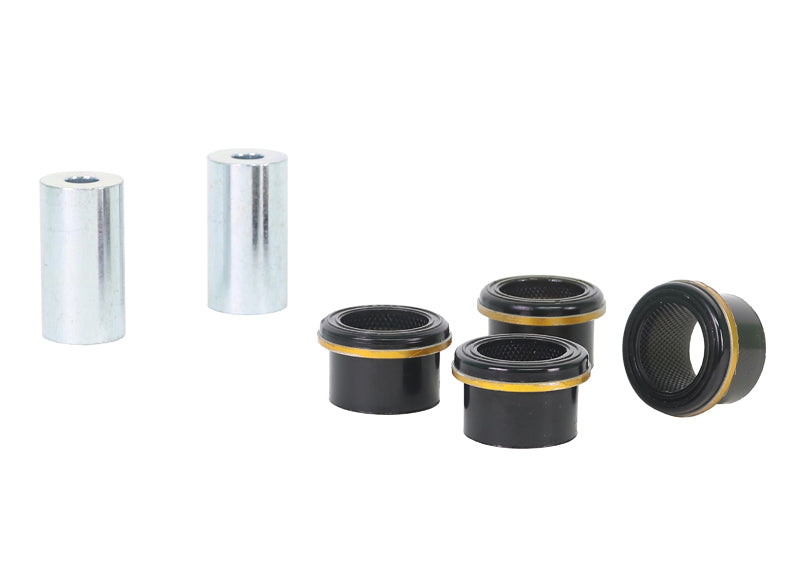

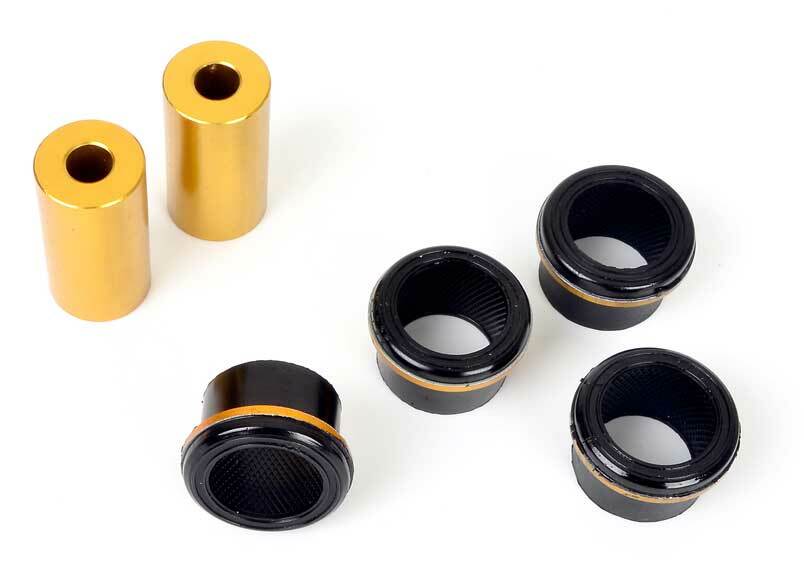

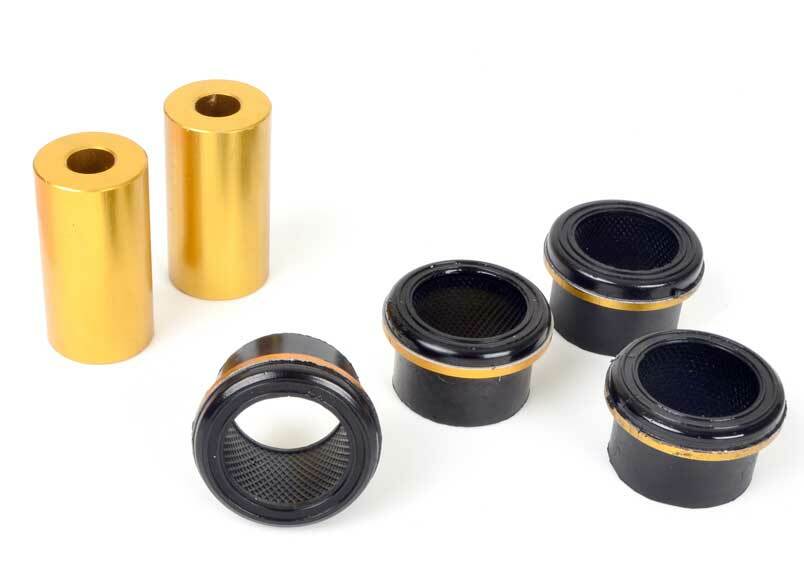

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2013-2020 and 2022-2025 Subaru BRZ Limited, Premium (ZC6/ZD8). The part number is W0509. You receive 4 bushings and 2 tubes. Whiteline's note for this fit: Recommended for motorsport use only. This part is for the front of the vehicle.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Expect a difficult job of about 2.5 hours. An alignment is required after installation. To go with it on the Subaru BRZ, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Material: The part is made of polyurethane.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Finish: The metal parts are powder coated for durability.
  • Install guide: Step-by-step installation instructions come with it.
  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Grease: Moly grease is supplied to prolong the life of the parts.
Specifications
Part Number W0509
Part Name Control Arm Bushing
Vehicle 2013-2020 and 2022-2025 Subaru BRZ Limited, Premium
Drivetrain RWD
Chassis Code ZC6/ZD8
Bushing 1 Inner Diameter 12.5 mm
Bushing 1 Outer Diameter 37.3 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Recommended for MOTORSPORT use only

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2013SubaruBRZRWDRecommended for MOTORSPORT use only
2014SubaruBRZRWDRecommended for MOTORSPORT use only
2015SubaruBRZRWDRecommended for MOTORSPORT use only
2016SubaruBRZRWDRecommended for MOTORSPORT use only
2017SubaruBRZRWDRecommended for MOTORSPORT use only
2018SubaruBRZRWDRecommended for MOTORSPORT use only
2019SubaruBRZRWDRecommended for MOTORSPORT use only
2020SubaruBRZRWDRecommended for MOTORSPORT use only
2022SubaruBRZRWDRecommended for MOTORSPORT use only
2023SubaruBRZRWDRecommended for MOTORSPORT use only
2024SubaruBRZRWDRecommended for MOTORSPORT use only
2025SubaruBRZRWDRecommended for MOTORSPORT use only
