Product Details

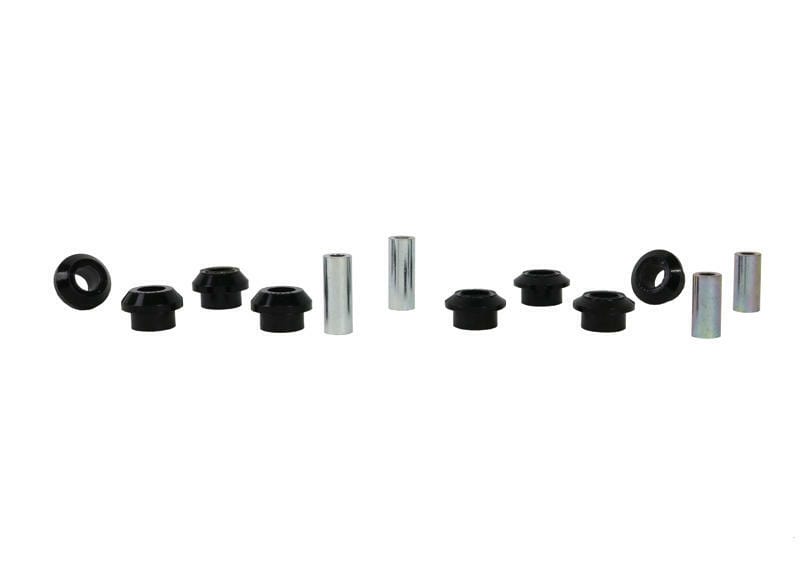

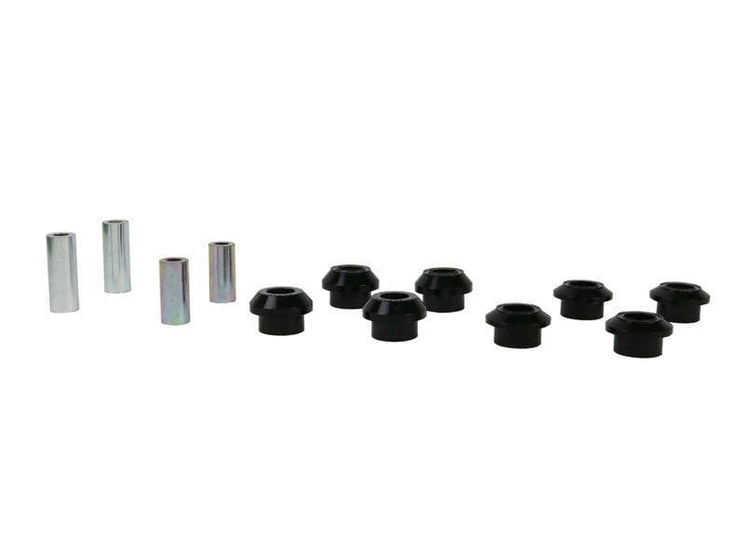

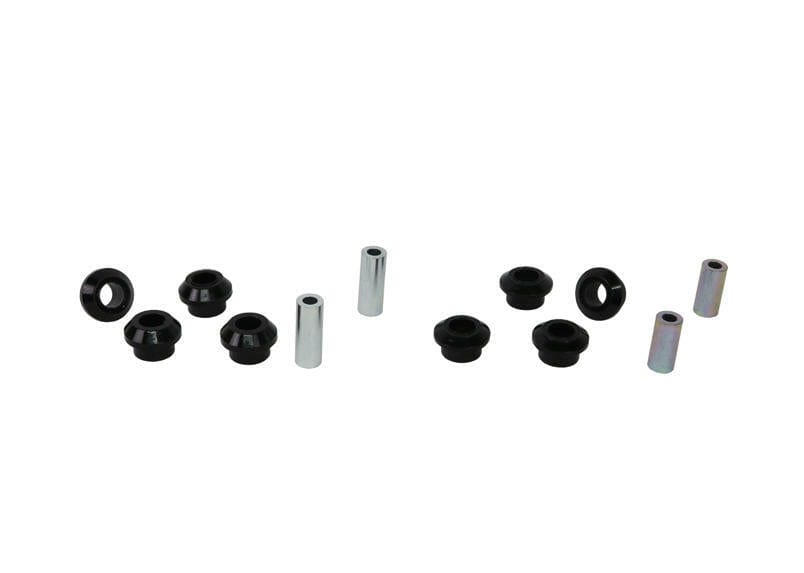

This Whiteline Rear Upper Inner Control Arm Bushing Kit (Standard Repl.) fits the 2013-2016 Scion FR-S Base (ZN6). The kit contains 8 bushings and 4 tubes. This part is for the rear of the vehicle. Part number W63225.

Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.

Whiteline rates the install as moderate and lists about 3 hours. An alignment is required after installation. Other Whiteline parts we list for the FR-S: Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Rear Bushing, and 14mm Adjustable Front Camber Bolts.

Features

  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Install guide: Step-by-step installation instructions come with it.
  • Material: The part is made of polyurethane.
Specifications
Part Number W63225
Part Name Control Arm Bushing
Vehicle 2013-2016 Scion FR-S Base
Chassis Code ZN6
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 34 mm
Bushing 2 Inner Diameter 12.3 mm
Bushing Quantity 8 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 8 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2013ScionFR-SRWD
2014ScionFR-SRWD
2015ScionFR-SRWD
2016ScionFR-SRWD
