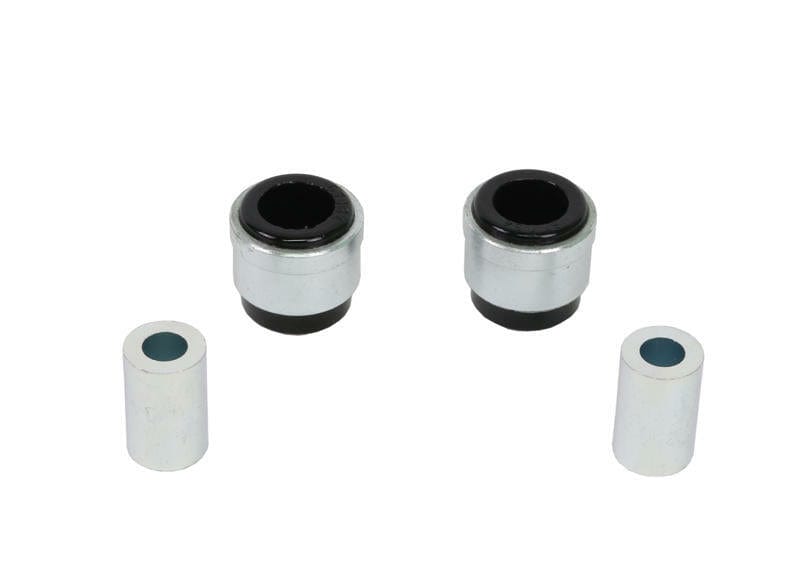

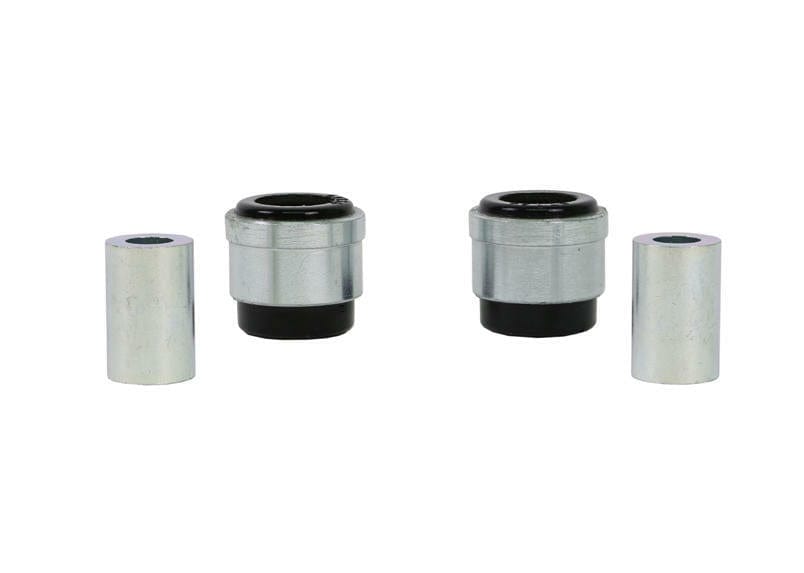

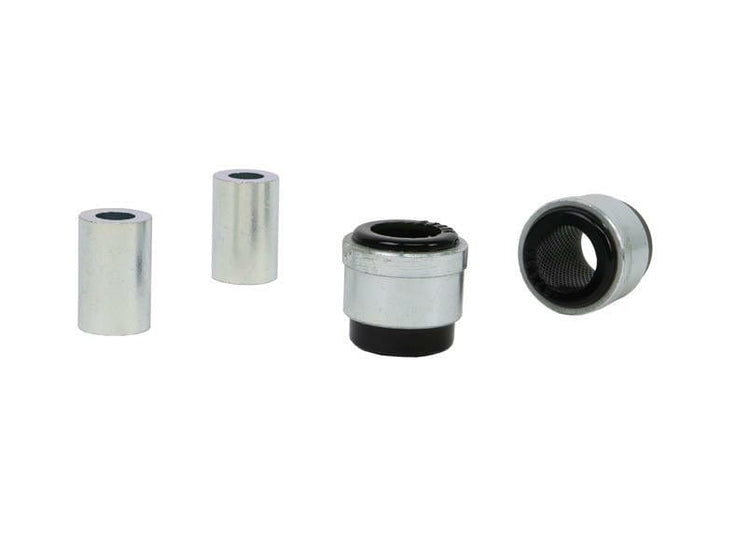

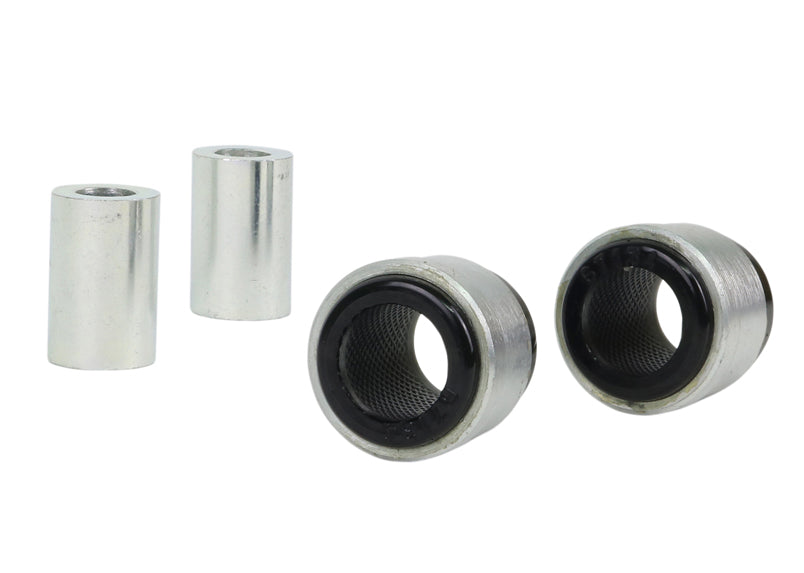

This Whiteline Rear Upper Inner Control Arm Bushing (Standard Repl.) fits the 2008-2013 Volvo C70 T5 (P1). The part number is W63322. You receive 2 shell bushings and 2 tubes. It goes on the rear of the vehicle. Application note: Standard Replacement: suits cast arms.

Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.

Whiteline rates the install as moderate and lists about 3 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Volvo C70: Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Rear Bushing, and Adjustable Front Sway Bar Link.

Features

  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Material: Made from polyurethane.
  • Bonded design: A bonded design adds strength for high load applications.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Finish: The metal parts are powder coated for durability.
Specifications
Part Number W63322
Part Name Control Arm Bushing
Vehicle 2008-2013 Volvo C70 T5
Chassis Code P1
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 38 mm
Bushing 2 Outer Diameter 36 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Standard Replacement - suits cast arms

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008VolvoC70FWDStandard Replacement - suits cast arms
2009VolvoC70FWDStandard Replacement - suits cast arms
2010VolvoC70FWDStandard Replacement - suits cast arms
2011VolvoC70FWDStandard Replacement - suits cast arms
2012VolvoC70FWDStandard Replacement - suits cast arms
2013VolvoC70FWDStandard Replacement - suits cast arms
