Product Details

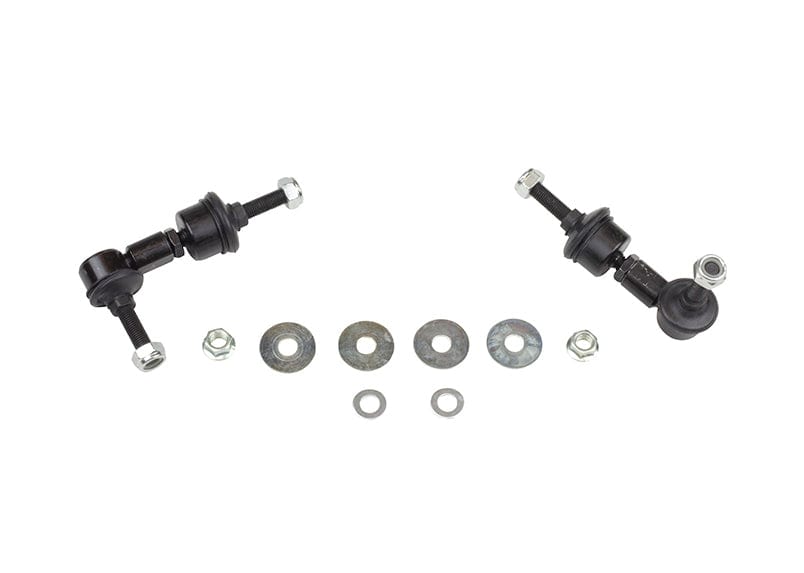

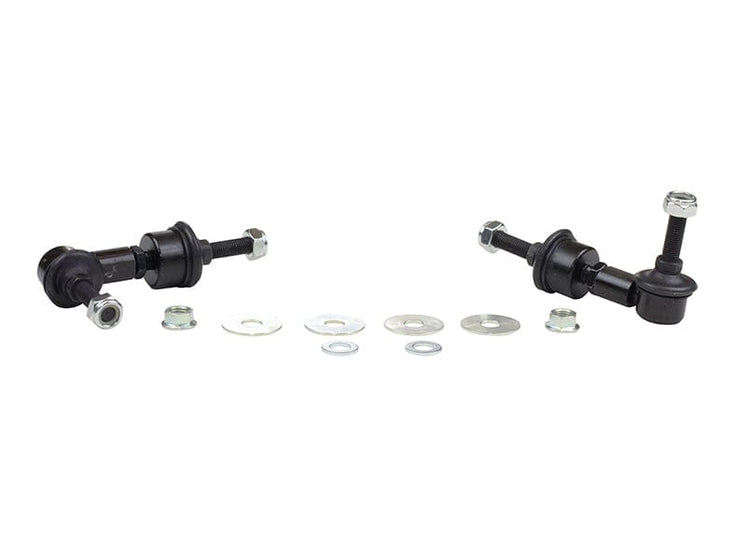

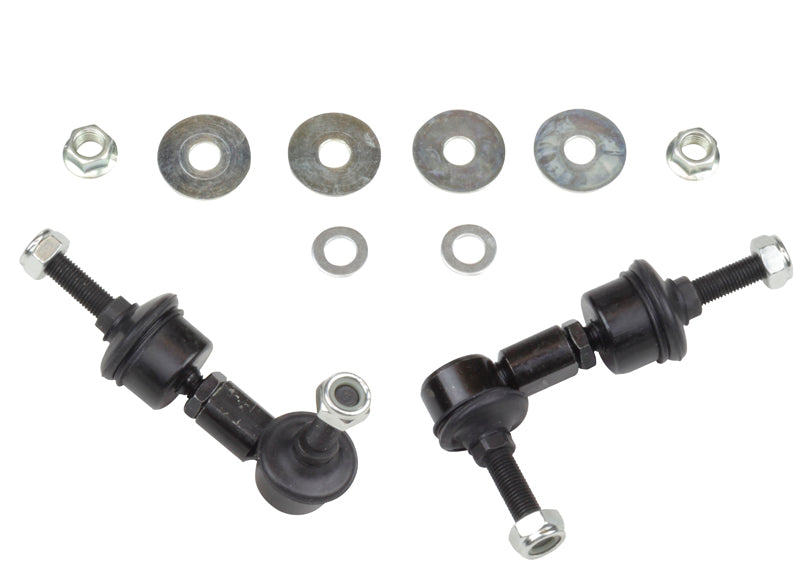

Made to fit the 2004 and 2006-2013 Volvo C70 Base (P1/P3), the Adjustable Rear Sway Bar Link from Whiteline. Part number KLC157. Placement: rear. You receive 2 links. Whiteline's note for this fit: Adjustable Extra Heavy Duty.

A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward. To go with it on the Volvo C70, see Adjustable Rear Upper Control Arm Set, Adjustable Front Sway Bar Link, and Front Control Arm Lower Inner Front Bushing.

Features

  • Hardware: Hardware supplied: locking nuts and washers.
  • Rigid design: A stiffer design than the factory part gives a more immediate response.
  • Install guide: An install guide comes in the box.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Material: Steel construction.
Specifications
Part Number KLC157
Part Name Sway Bar Link
Vehicle 2004 and 2006-2013 Volvo C70 Base
Drivetrain FWD
Chassis Code P1/P3
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 85-95 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004VolvoC70FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2006VolvoC70FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2007VolvoC70FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2008VolvoC70FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2009VolvoC70FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2010VolvoC70FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2011VolvoC70FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2012VolvoC70FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2013VolvoC70FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
