Product Details

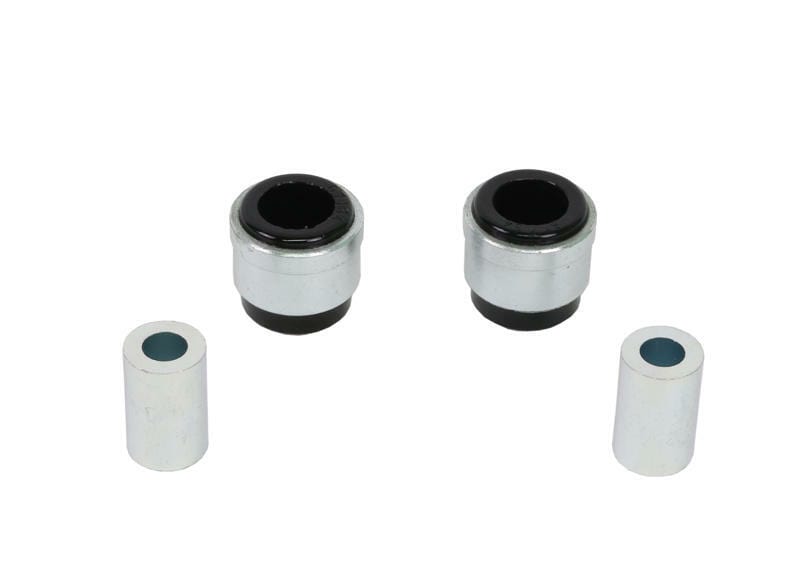

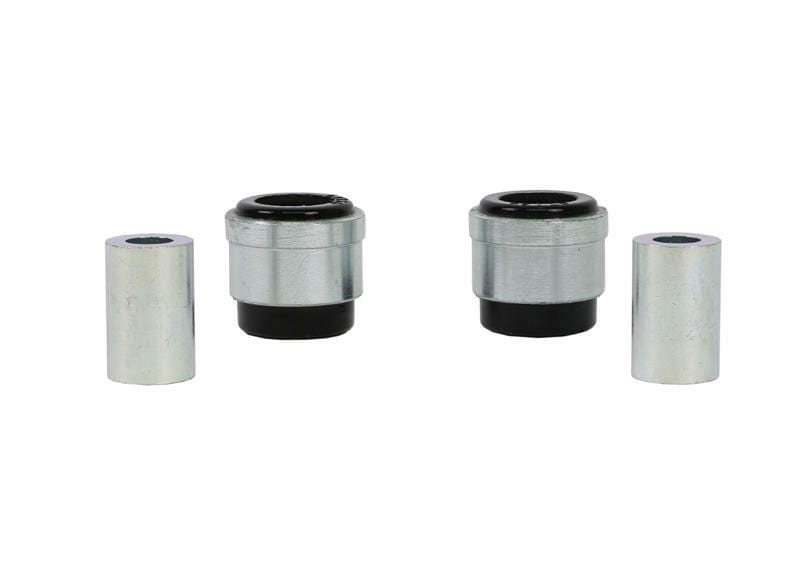

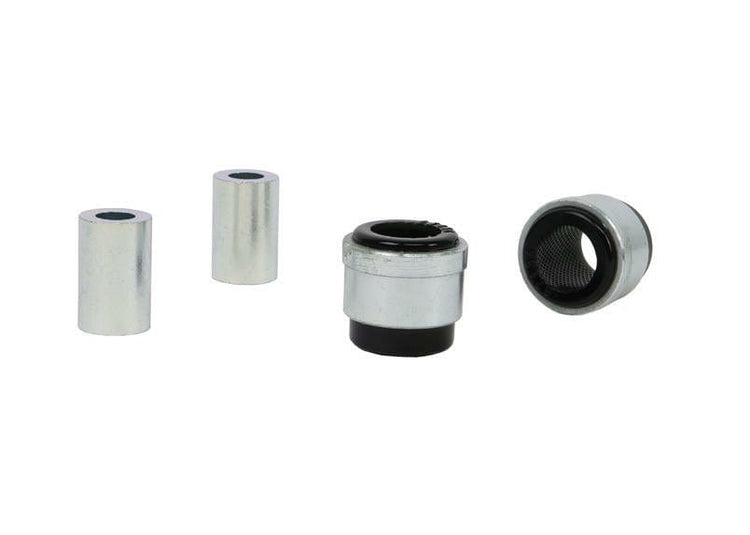

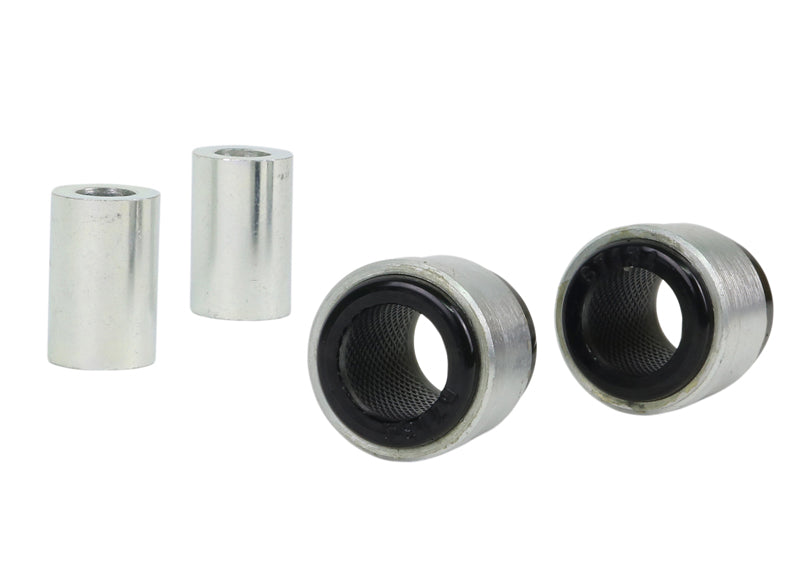

This Whiteline Rear Upper Inner Control Arm Bushing (Standard Repl.) fits the 2006-2010 Volvo S40 2.4i (P1). In the box: 2 shell bushings and 2 tubes. Whiteline part number: W63322. This part is for the rear of the vehicle. Application note: Standard Replacement: suits cast arms.

Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.

Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Rear Bushing, and Adjustable Front Sway Bar Link for the Volvo S40.

Features

  • Material: Polyurethane construction.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Bonded design: The bushing is bonded for extra strength under heavy loads.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
Part Number W63322
Part Name Control Arm Bushing
Vehicle 2006-2010 Volvo S40 2.4i
Drivetrain FWD/AWD
Chassis Code P1
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 38 mm
Bushing 2 Outer Diameter 36 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Standard Replacement - suits cast arms

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006VolvoS40FWDStandard Replacement - suits cast arms
2006VolvoS40AWDStandard Replacement - suits cast arms
2007VolvoS40FWDStandard Replacement - suits cast arms
2007VolvoS40AWDStandard Replacement - suits cast arms
2008VolvoS40FWDStandard Replacement - suits cast arms
2008VolvoS40AWDStandard Replacement - suits cast arms
2009VolvoS40FWDStandard Replacement - suits cast arms
2009VolvoS40AWDStandard Replacement - suits cast arms
2010VolvoS40FWDStandard Replacement - suits cast arms
2010VolvoS40AWDStandard Replacement - suits cast arms
