Product Details

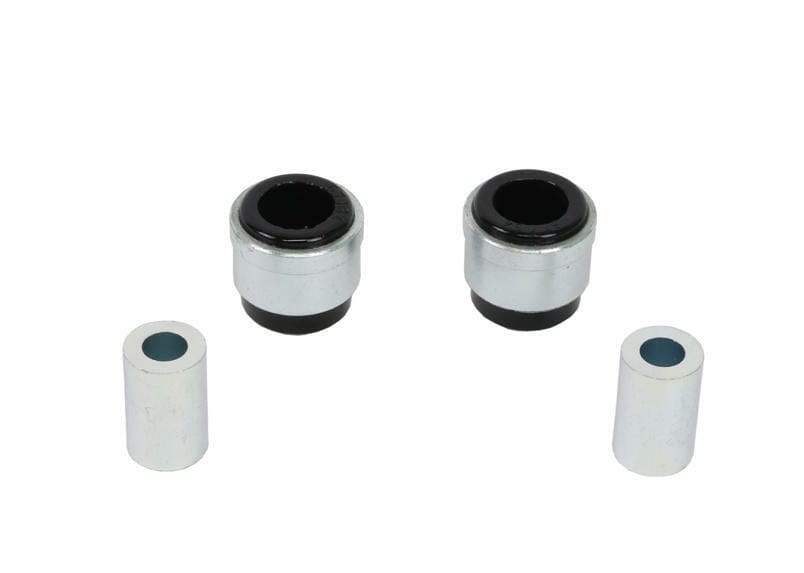

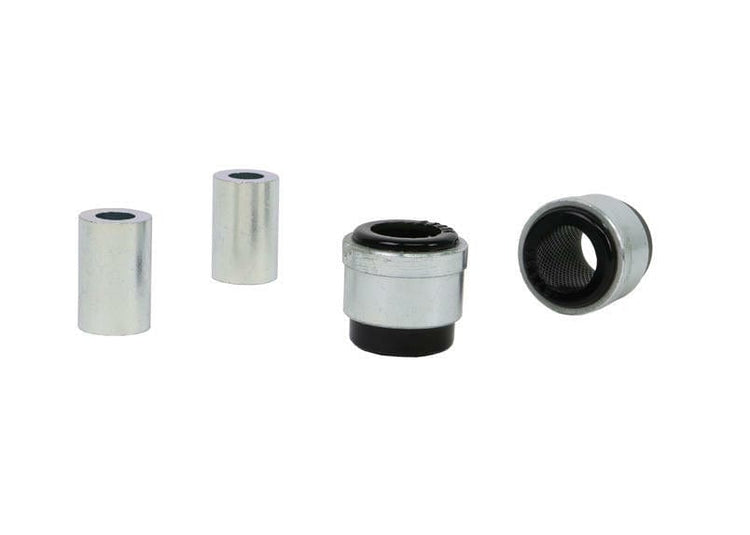

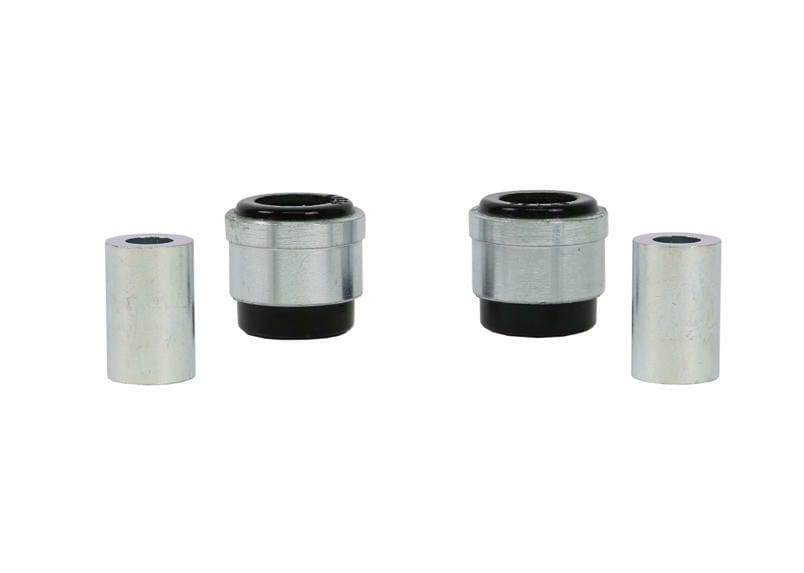

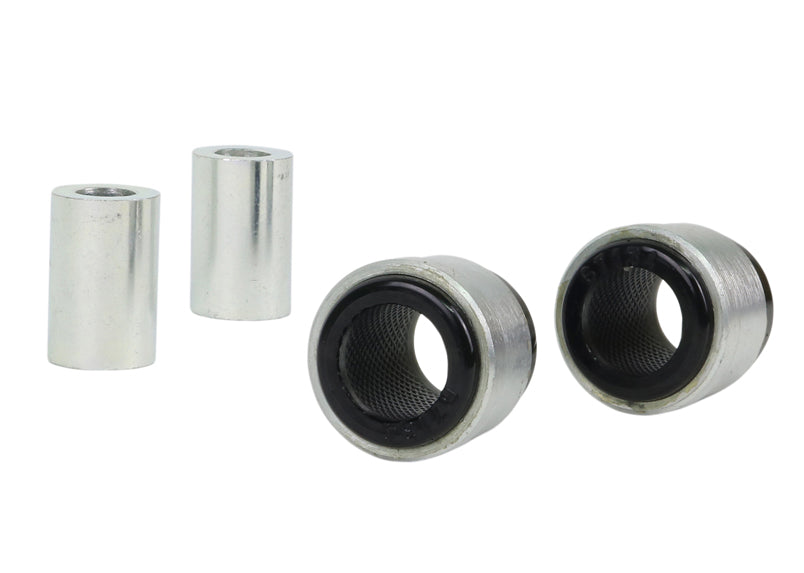

This Whiteline Rear Upper Inner Control Arm Bushing (Standard Repl.) fits the 2004-2011 Volvo S40 T5 (P1). Order it as part number W63322. Chassis code: P1. This part is for the rear of the vehicle. Whiteline's note for this fit: Standard Replacement: suits cast arms. In the box: 2 shell bushings and 2 tubes.

Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.

Whiteline rates the install as moderate and lists about 3 hours. Get the car aligned once it is back on the ground. To go with it on the Volvo S40, see Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Rear Bushing, and Adjustable Front Sway Bar Link.

Features

  • Bonded design: A bonded design adds strength for high load applications.
  • Material: Built from polyurethane.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
Specifications
Part Number W63322
Part Name Control Arm Bushing
Vehicle 2004-2011 Volvo S40 T5
Drivetrain FWD/AWD
Chassis Code P1
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 38 mm
Bushing 2 Outer Diameter 36 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Standard Replacement - suits cast arms

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004VolvoS40FWDStandard Replacement - suits cast arms
2004VolvoS40AWDStandard Replacement - suits cast arms
2005VolvoS40FWDStandard Replacement - suits cast arms
2005VolvoS40AWDStandard Replacement - suits cast arms
2006VolvoS40FWDStandard Replacement - suits cast arms
2006VolvoS40AWDStandard Replacement - suits cast arms
2007VolvoS40FWDStandard Replacement - suits cast arms
2007VolvoS40AWDStandard Replacement - suits cast arms
2008VolvoS40FWDStandard Replacement - suits cast arms
2008VolvoS40AWDStandard Replacement - suits cast arms
2009VolvoS40FWDStandard Replacement - suits cast arms
2009VolvoS40AWDStandard Replacement - suits cast arms
2010VolvoS40FWDStandard Replacement - suits cast arms
2010VolvoS40AWDStandard Replacement - suits cast arms
2011VolvoS40FWDStandard Replacement - suits cast arms
2011VolvoS40AWDStandard Replacement - suits cast arms
