Product Details

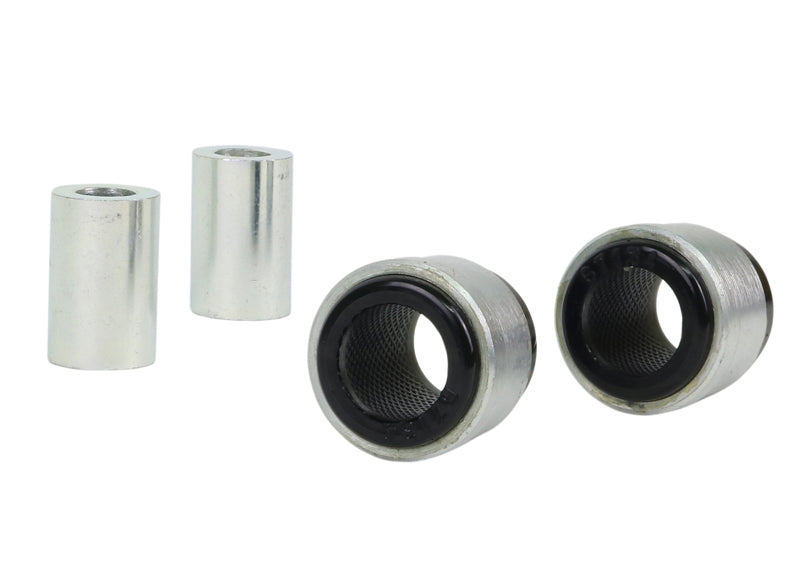

This Whiteline Rear Upper Inner Control Arm Bushing (Standard Repl.) fits the 2002-2006 Ford Focus ZX5 (C170). Placement: rear. Application note: Standard Replacement: suits cast arms. Order it as part number W63322. In the box: 2 shell bushings and 2 tubes.

Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.

Whiteline rates the install as moderate and lists about 3 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Focus: Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Heavy Duty Blade Adjustable 22mm Rear Sway Bar.

Features

  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Bonded design: A bonded design adds strength for high load applications.
  • Material: Built from polyurethane.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Finish: A powder coated finish resists corrosion and wear.
Specifications
Part Number W63322
Part Name Control Arm Bushing
Vehicle 2002-2006 Ford Focus ZX5
Chassis Code C170
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 38 mm
Bushing 2 Outer Diameter 36 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Standard Replacement - suits cast arms

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2002FordFocusFWDStandard Replacement - suits cast arms
2003FordFocusFWDStandard Replacement - suits cast arms
2004FordFocusFWDStandard Replacement - suits cast arms
2005FordFocusFWDStandard Replacement - suits cast arms
2006FordFocusFWDStandard Replacement - suits cast arms
