Product Details

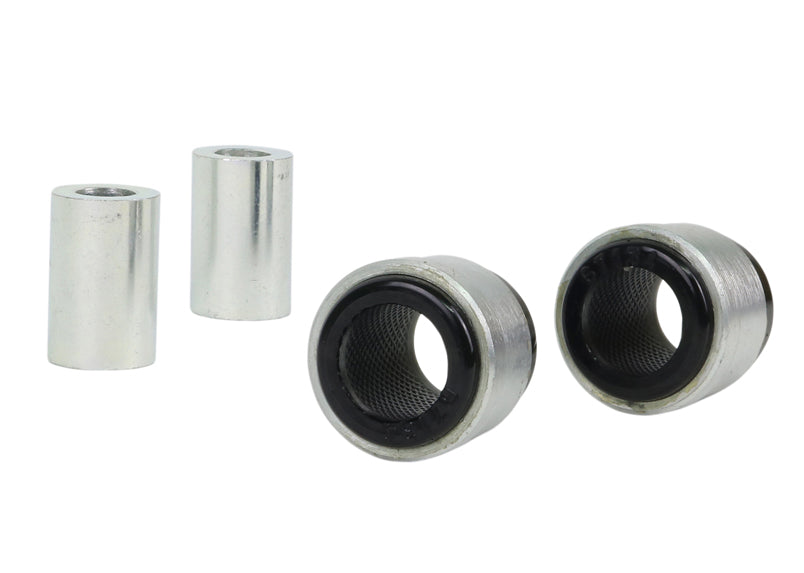

This Whiteline Rear Upper Inner Control Arm Bushing (Standard Repl.) fits the 2000-2004 Ford Focus LX, ZTS (C170). In the box: 2 shell bushings and 2 tubes. Whiteline's note for this fit: Standard Replacement: suits cast arms. This part is for the rear of the vehicle. Whiteline part number: W63322.

Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.

Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Focus: Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Heavy Duty Blade Adjustable 22mm Rear Sway Bar.

Features

  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Material: The part is made of polyurethane.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Bonded design: The bushing is bonded for extra strength under heavy loads.
Specifications
Part Number W63322
Part Name Control Arm Bushing
Vehicle 2000-2004 Ford Focus LX, ZTS
Chassis Code C170
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 38 mm
Bushing 2 Outer Diameter 36 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Standard Replacement - suits cast arms

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2000FordFocusFWDStandard Replacement - suits cast arms
2001FordFocusFWDStandard Replacement - suits cast arms
2002FordFocusFWDStandard Replacement - suits cast arms
2003FordFocusFWDStandard Replacement - suits cast arms
2004FordFocusFWDStandard Replacement - suits cast arms
