Product Details

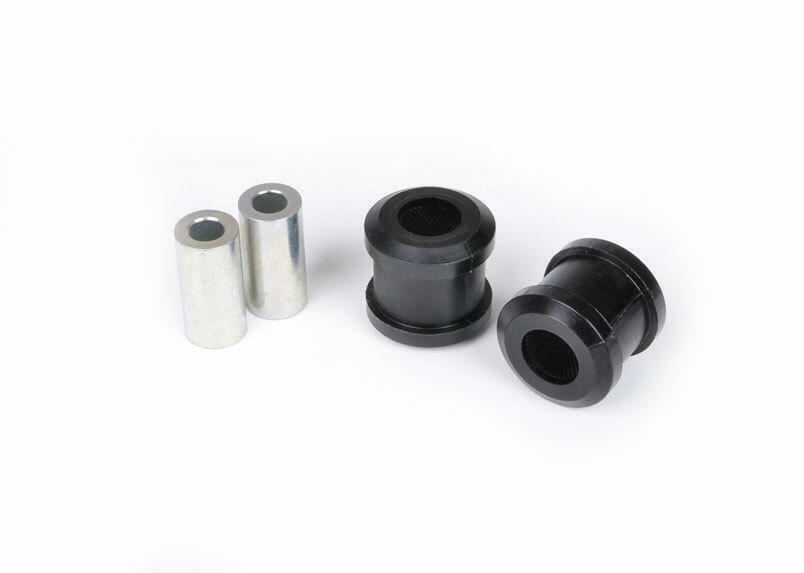

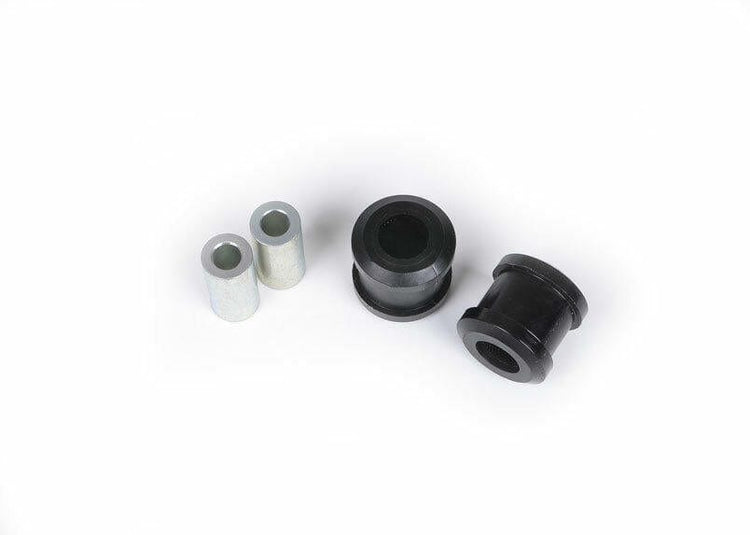

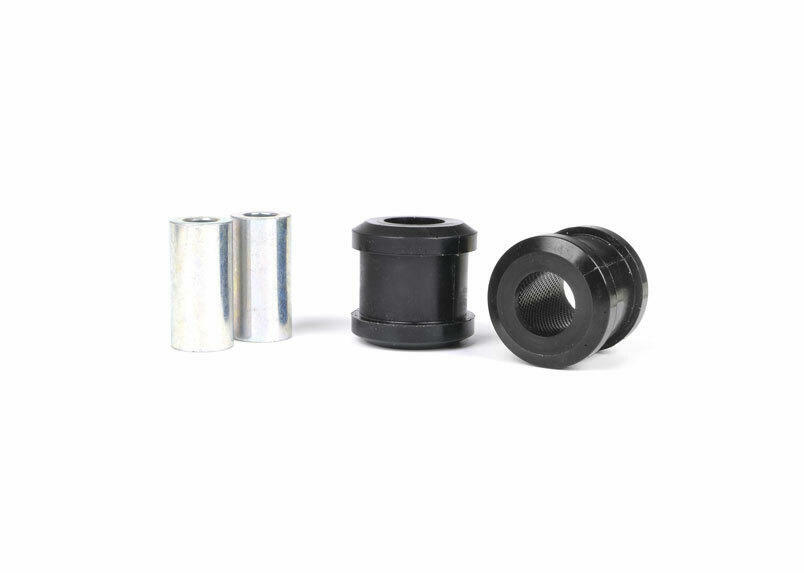

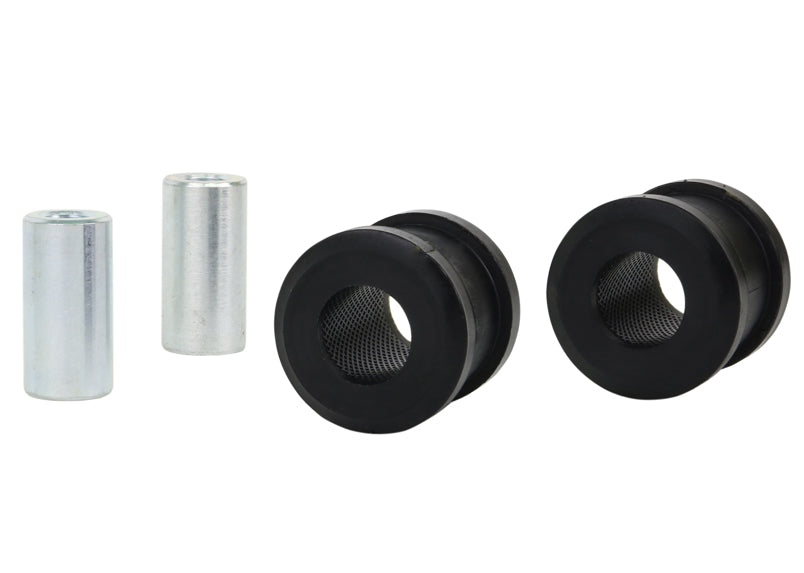

This Whiteline Rear Upper Inner Control Arm Bushing fits the 2008 Volkswagen Eos Turbo, VR6 (1F). In the box: 2 bushings and 2 tubes. Part number W63549. It goes on the rear of the vehicle.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a moderate job of about 3 hours. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link for the Volkswagen Eos.

Features

  • Material: The part is made of polyurethane.
  • Finish: A powder coated finish resists corrosion and wear.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
Specifications
Part Number W63549
Part Name Control Arm Bushing
Vehicle 2008 Volkswagen Eos Turbo, VR6
Chassis Code 1F
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 40.3 mm
Bushing Quantity 2 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008VolkswagenEosFWD
