Product Details

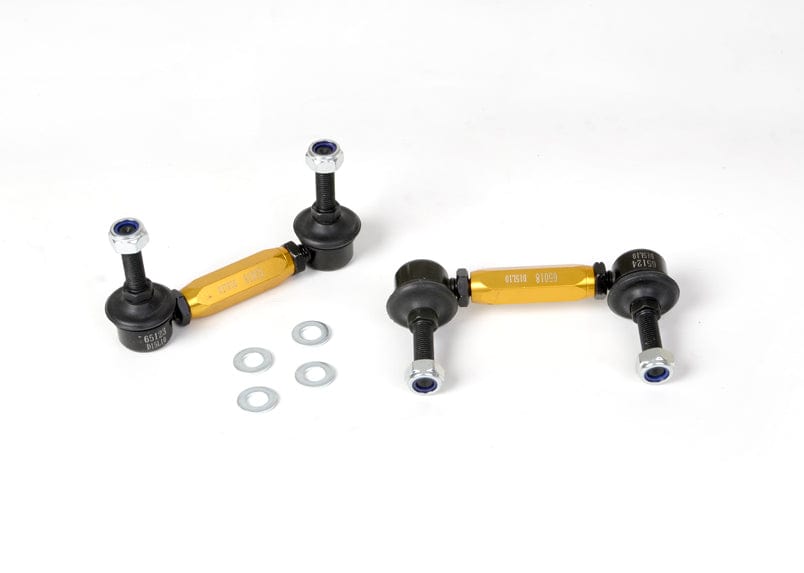

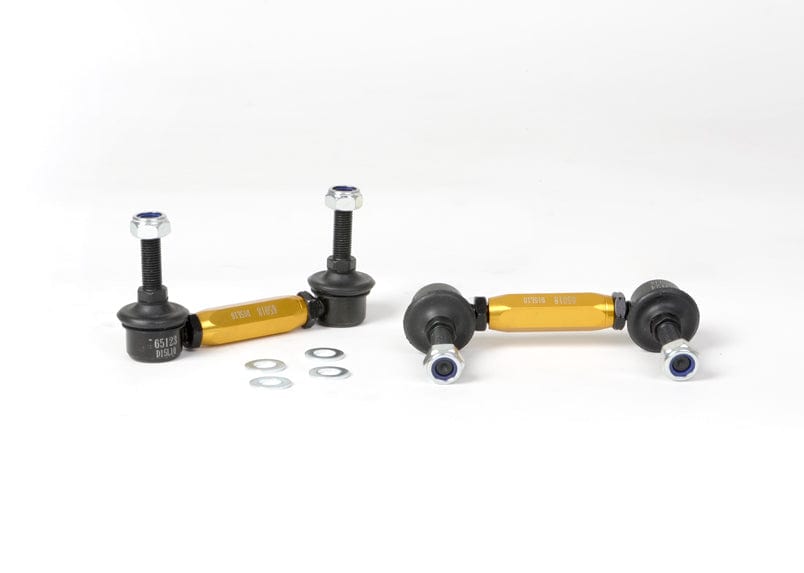

This Whiteline Adjustable Rear Sway Bar Link fits the 2008-2013 Volkswagen Eos Lux (1F). It goes on the rear of the vehicle. Application note: Suits models with control arm link mount: adjustable extra heavy duty. In the box: 2 links. Whiteline part number: KLC141.

The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Installation is rated easy, with about 1 hour of work listed. A wheel alignment is not required. We also list Adjustable Rear Upper Control Arm Set, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit for the Volkswagen Eos.

Features

  • Material: Steel construction.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Install guide: An install guide comes in the box.
  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
  • Pre-greased: Joints arrive pre-greased and ready to install.
Specifications
Part Number KLC141
Part Name Sway Bar Link
Vehicle 2008-2013 Volkswagen Eos Lux
Chassis Code 1F
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 2 Links
Length 115-140 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Suits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008VolkswagenEosFWDSuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
2009VolkswagenEosFWDSuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
2010VolkswagenEosFWDSuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
2011VolkswagenEosFWDSuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
2012VolkswagenEosFWDSuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
2013VolkswagenEosFWDSuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
