Product Details

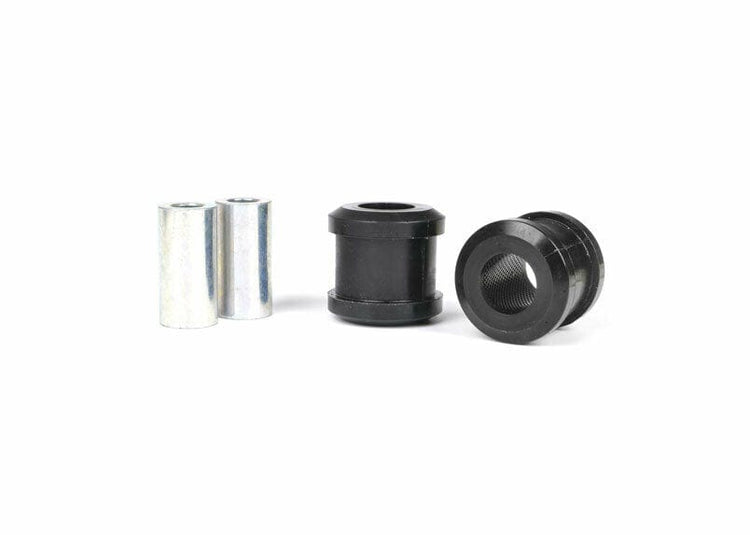

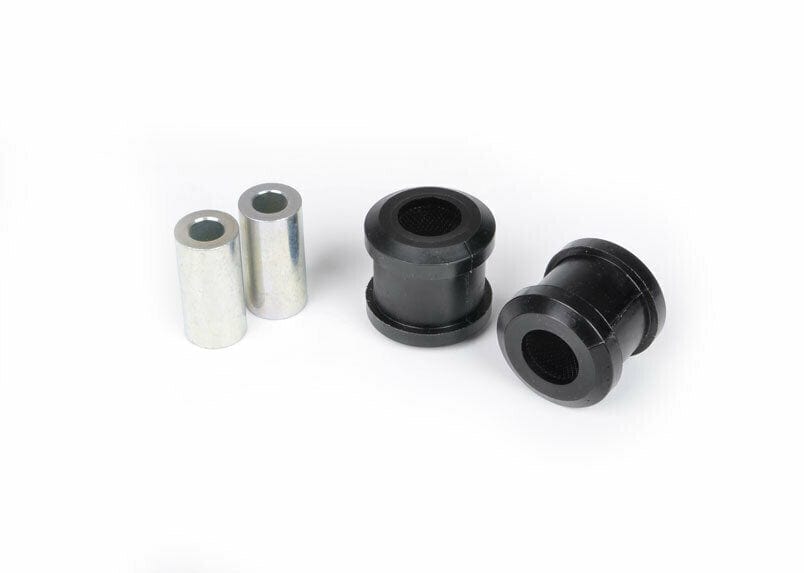

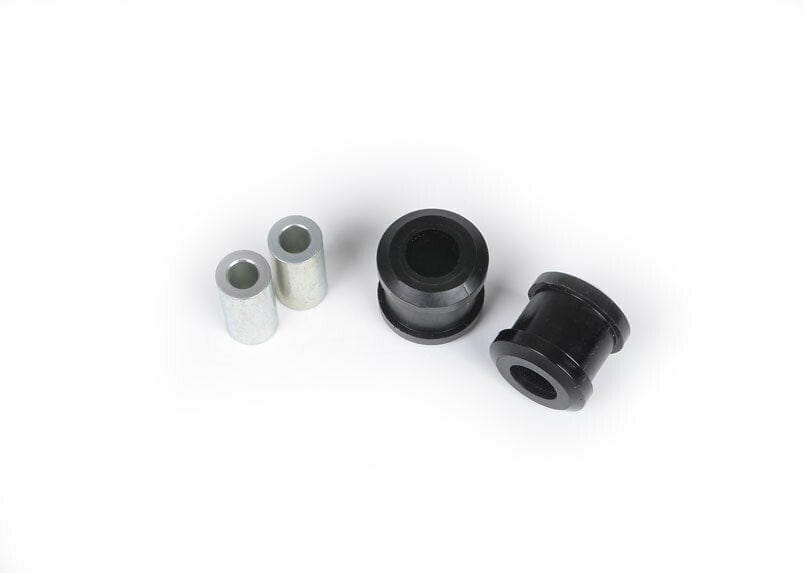

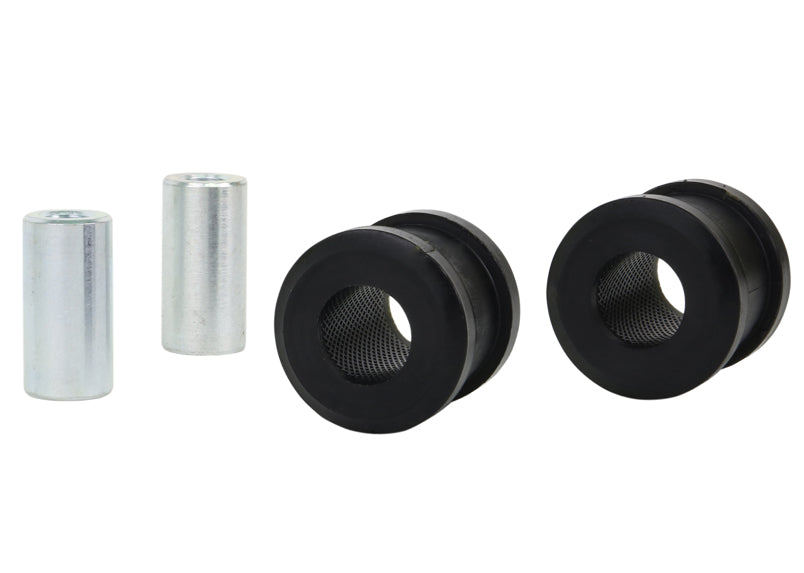

This Whiteline Rear Upper Inner Control Arm Bushing fits the 2008-2013 Volkswagen Eos Lux (1F). This part is for the rear of the vehicle. In the box: 2 bushings and 2 tubes. Part number W63549.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as moderate and lists about 3 hours. An alignment is required after installation. Other Whiteline parts we list for the Volkswagen Eos: Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Finish: A powder coated finish resists corrosion and wear.
  • Material: Polyurethane construction.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
Specifications
Part Number W63549
Part Name Control Arm Bushing
Vehicle 2008-2013 Volkswagen Eos Lux
Chassis Code 1F
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 40.3 mm
Bushing Quantity 2 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008VolkswagenEosFWD
2009VolkswagenEosFWD
2010VolkswagenEosFWD
2011VolkswagenEosFWD
2012VolkswagenEosFWD
2013VolkswagenEosFWD
