Product Details

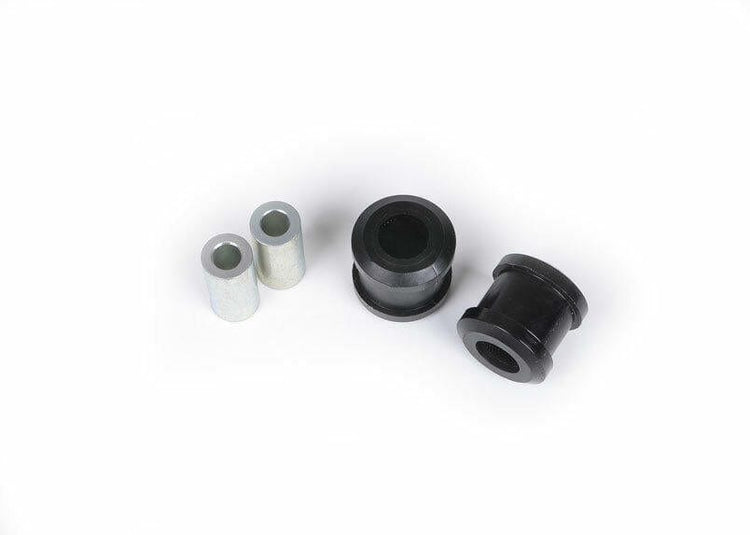

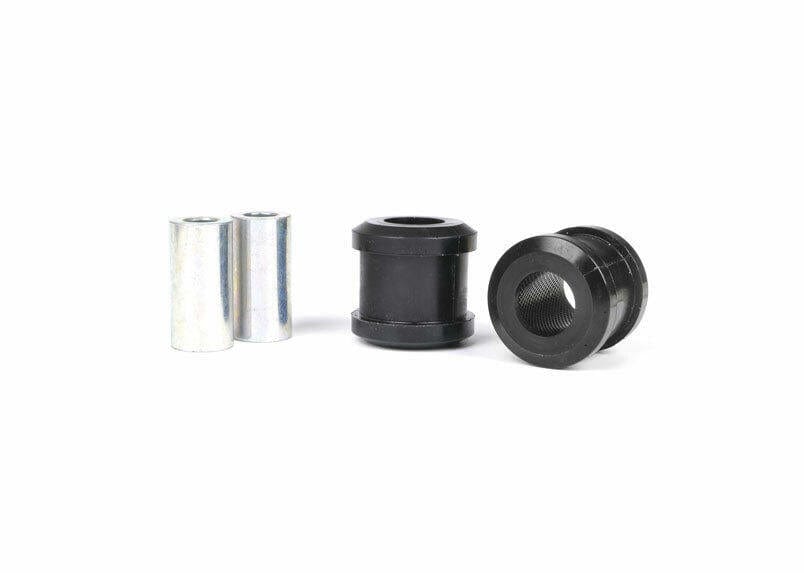

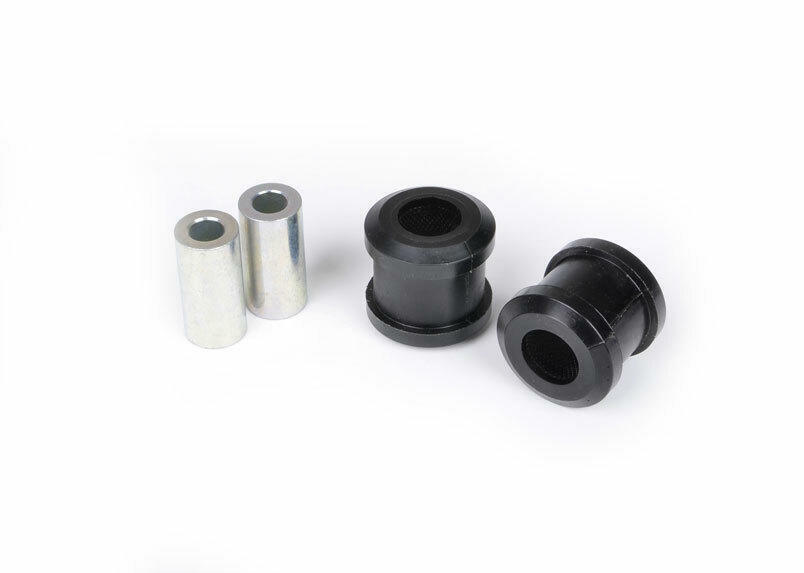

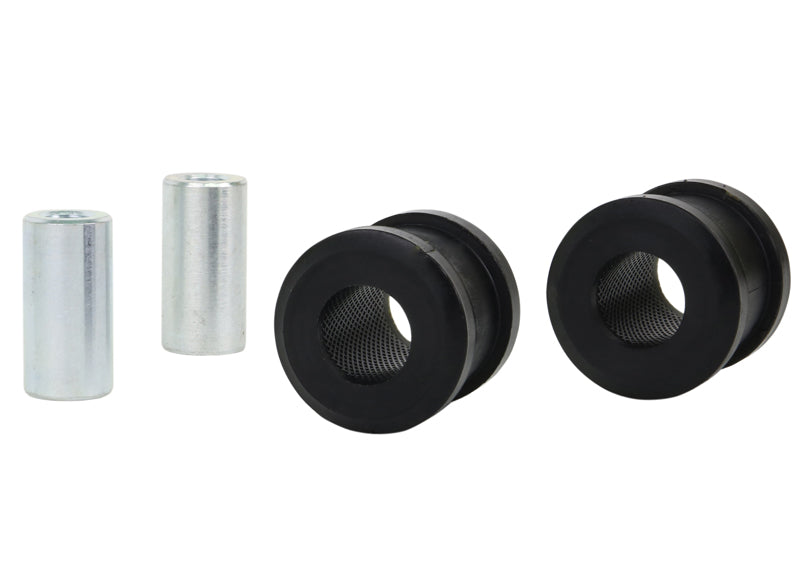

This Whiteline Rear Upper Inner Control Arm Bushing fits the 2008-2009 Volkswagen Rabbit S (1K). Part number W63549. This part is for the rear of the vehicle. The kit contains 2 bushings and 2 tubes.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated moderate, with about 3 hours of work listed. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Rabbit: Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Material: The part is made of polyurethane.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
Specifications
Part Number W63549
Part Name Control Arm Bushing
Vehicle 2008-2009 Volkswagen Rabbit S
Chassis Code 1K
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 40.3 mm
Bushing Quantity 2 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008VolkswagenRabbitFWD
2009VolkswagenRabbitFWD
