Product Details

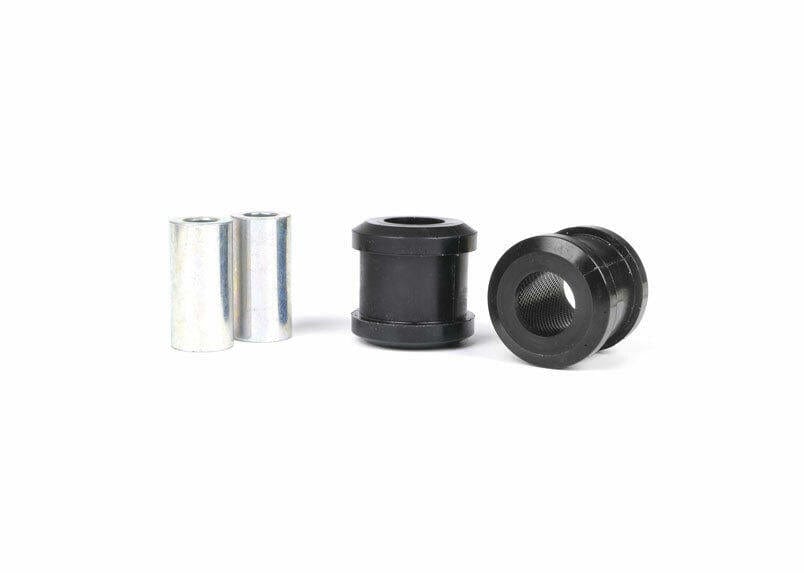

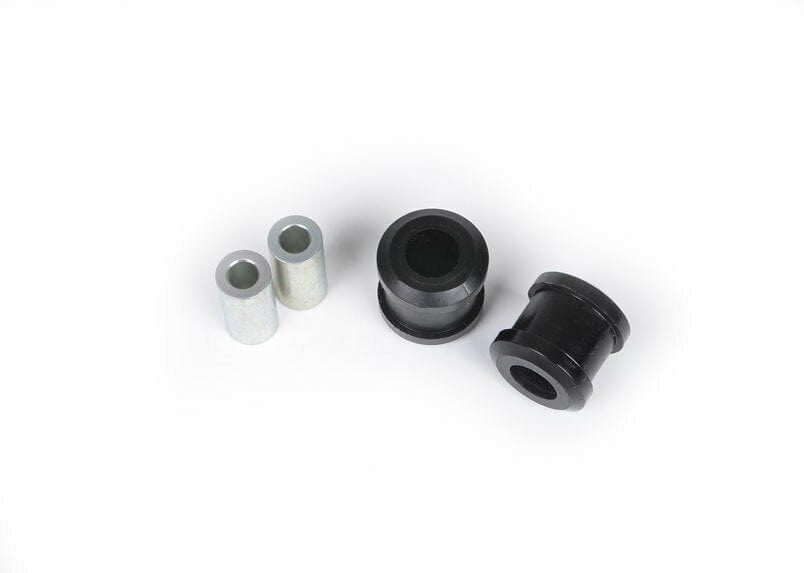

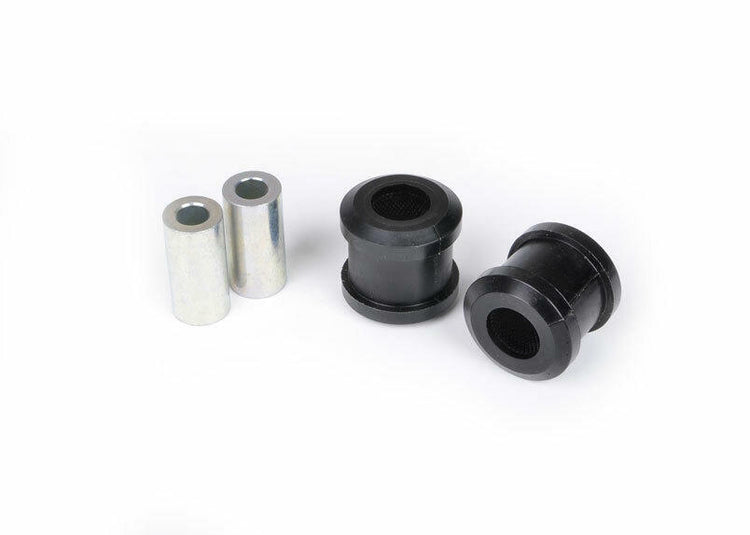

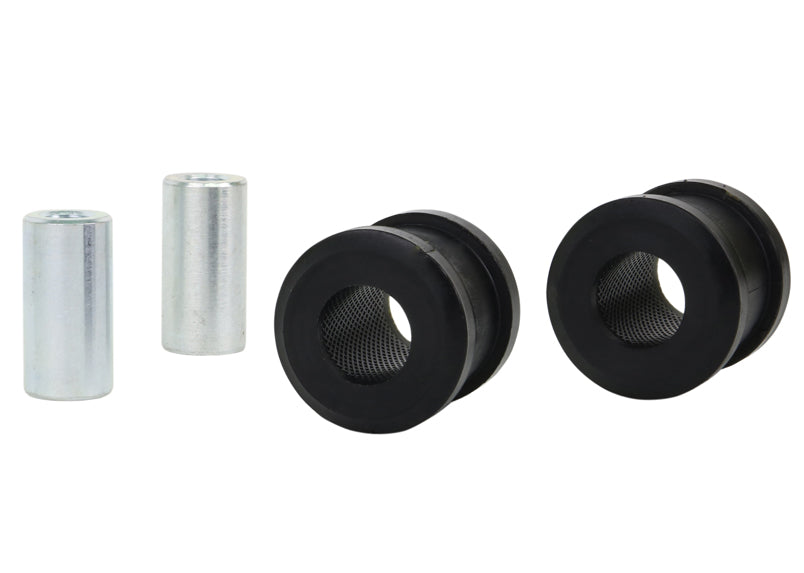

This Whiteline Rear Upper Inner Control Arm Bushing fits the 2007 Volkswagen Eos 2.0T, 3.2, Base (1F). Position: rear. In the box: 2 bushings and 2 tubes. Part number W63549.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Whiteline rates the install as moderate and lists about 3 hours. An alignment is required after installation. Other Whiteline parts we list for the Volkswagen Eos: Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Material: Made from polyurethane.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
Specifications
Part Number W63549
Part Name Control Arm Bushing
Vehicle 2007 Volkswagen Eos 2.0T, 3.2, Base
Chassis Code 1F
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 40.3 mm
Bushing Quantity 2 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007VolkswagenEosFWD
