Product Details

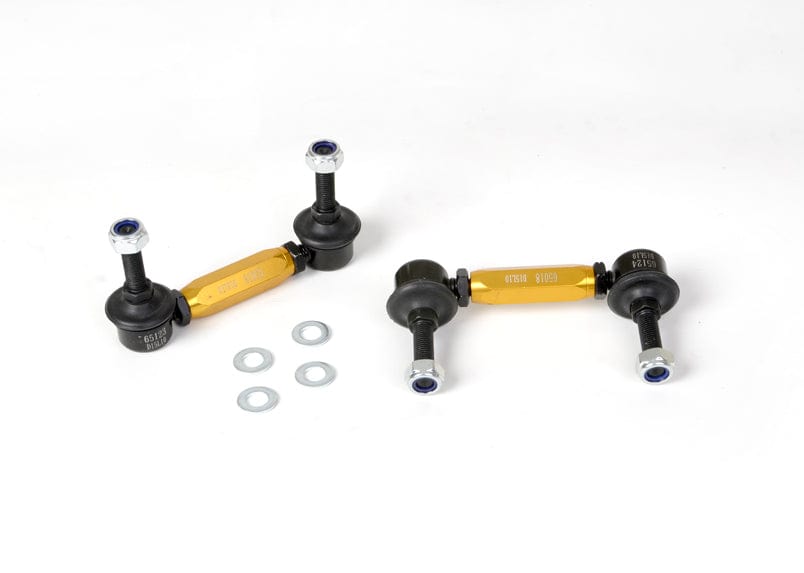

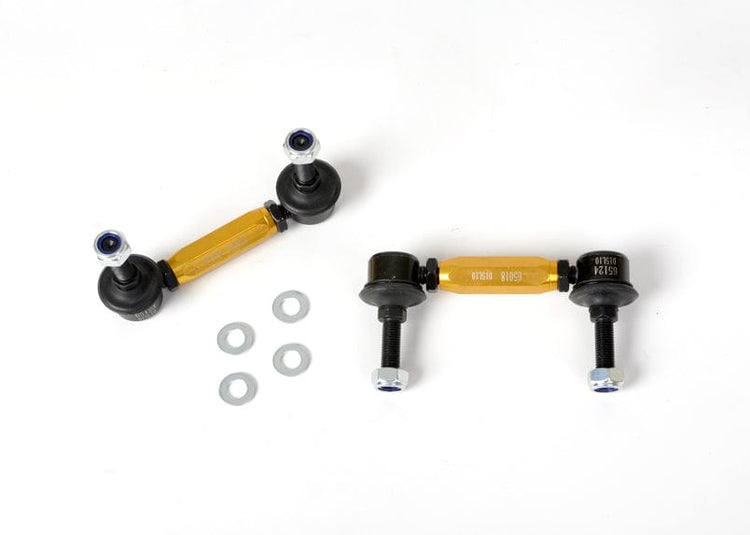

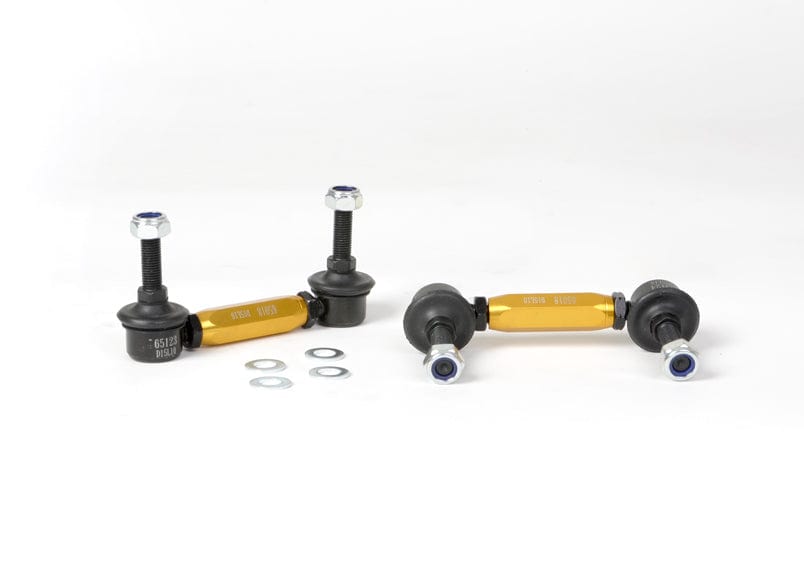

This Whiteline Adjustable Rear Sway Bar Link fits the 2007 Volkswagen Eos 2.0T, 3.2, Base (1F). Placement: rear. In the box: 2 links. The part number is KLC141. Application note: Suits models with control arm link mount: adjustable extra heavy duty.

A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Expect an easy job of about 1 hour. A wheel alignment is not required. To go with it on the Volkswagen Eos, see Adjustable Rear Upper Control Arm Set, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Material: Built from steel.
  • Hardware: The kit includes locking nuts and washers.
  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
  • Pre-greased: Joints arrive pre-greased and ready to install.
  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
Specifications
Part Number KLC141
Part Name Sway Bar Link
Vehicle 2007 Volkswagen Eos 2.0T, 3.2, Base
Chassis Code 1F
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 2 Links
Length 115-140 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Suits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007VolkswagenEosFWDSuits models with control arm link mount - adjustable extra heavy duty. Length 110-135mm
