Product Details

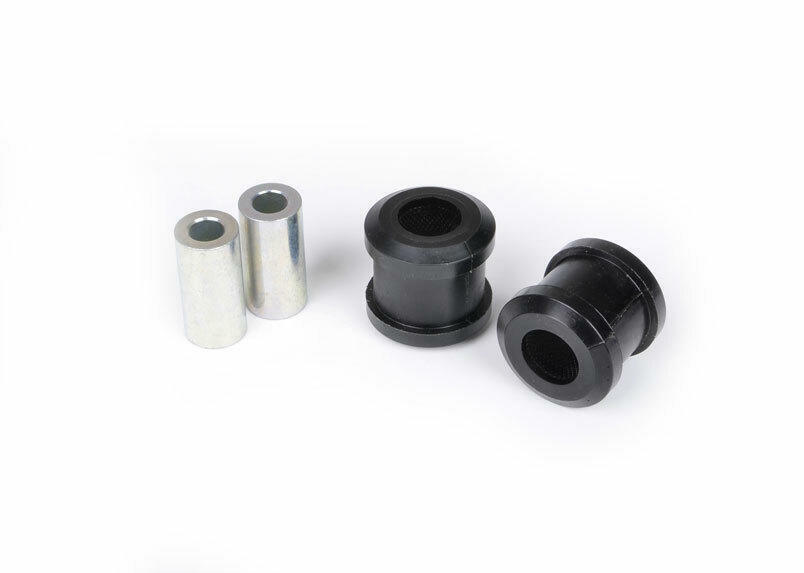

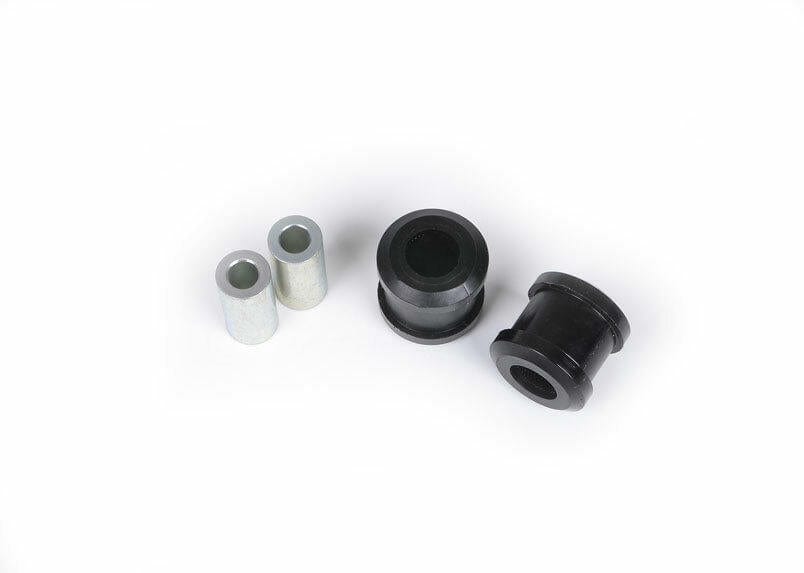

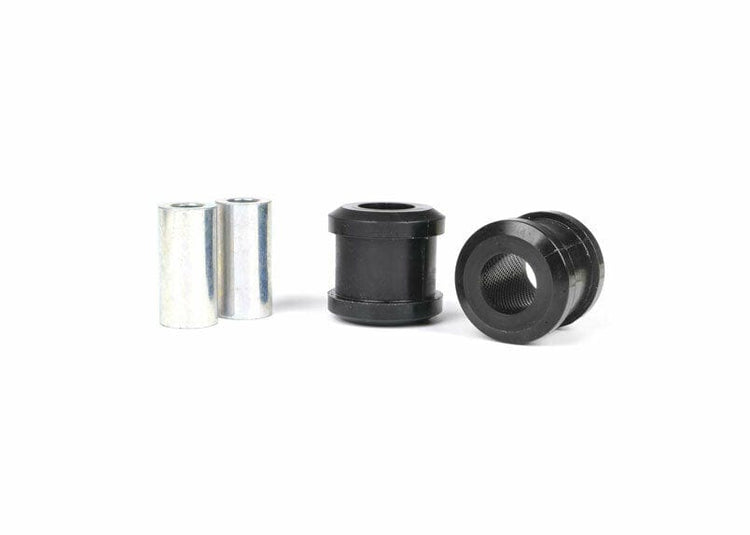

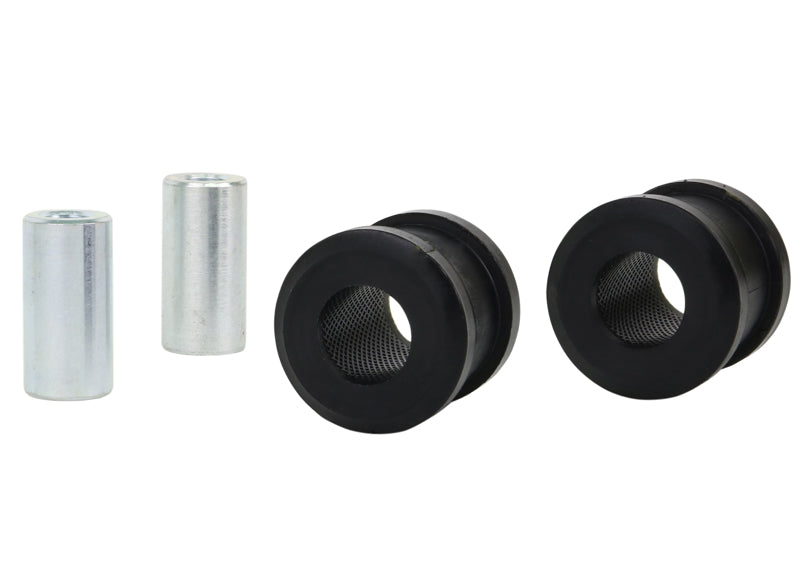

This Whiteline Rear Upper Inner Control Arm Bushing fits the 2005 Volkswagen Jetta GL, GL TDI, GLS, GLS TDI (1K). The part number is W63549. Included: 2 bushings and 2 tubes. It goes on the rear of the vehicle.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated moderate, with about 3 hours of work listed. An alignment is required after installation. Other Whiteline parts we list for the Jetta: Front and Rear Sway Bar Kit, Adjustable Rear Sway Bar Link Kit, and Front Steering Rack And Pinion Mount Bushing.

Features

  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Material: Built from polyurethane.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
Specifications
Part Number W63549
Part Name Control Arm Bushing
Vehicle 2005 Volkswagen Jetta GL, GL TDI, GLS, GLS TDI
Chassis Code 1K
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 40.3 mm
Bushing Quantity 2 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005VolkswagenJettaFWD
