Product Details

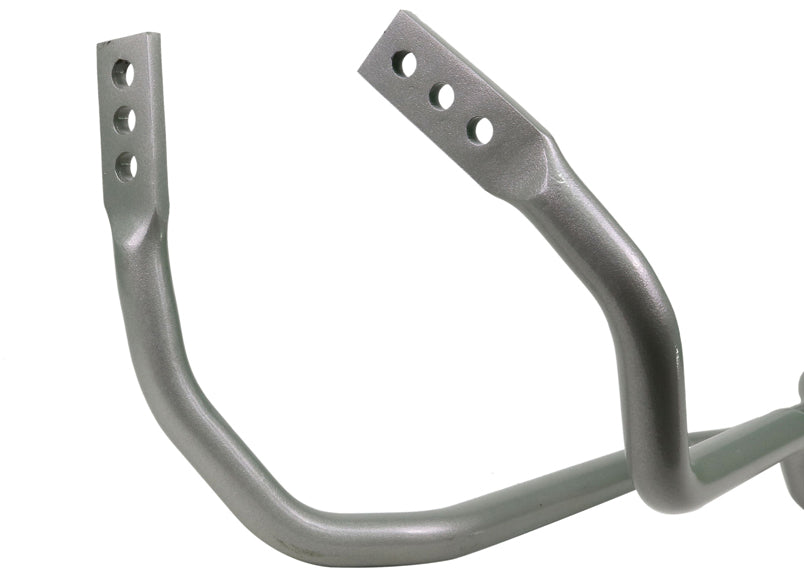

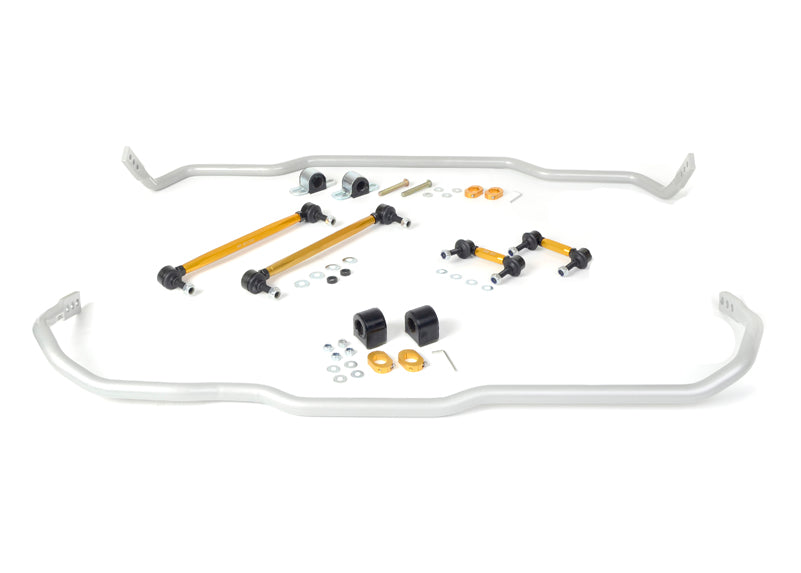

Engineered to 'Activate More Grip', BWK002 is a packaged solution to your 2005-2018 Volkswagen Jetta (1K/5K) designed to improve performance and enhance the driving experience of your vehicle. Boasting a 24mm 3 point adjustable front sway bar and 24mm 3 point adjustable rear sway bar, the kit is completed with high quality Sway Bar Links and mounting accessories that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this Whiteline Sway Bar Kit.
Standard Features
- Eliminate sway bar preload during installation and allow for on-car length adjustment of up to 25mm center to center.
- Featuring premium anodized alloy materials, Whiteline alloy products are anodized providing a long-lasting protective barrier to corrosion and wear but they look great too.
- Forged ends ensure maximum strength and performance of the sway bar at the sway bar link mounting point.
- Install guide included providing detailed instructions on how to install your new Whiteline purchase.
- Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
- Whiteline Sway Bar Mounts utilize the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.
- Whiteline Sway Bars are principally designed to reduce body roll or sway while cornering.
- Heavy duty ball joints adjust and rotate to any angular combination for ease of fitment and optimum performance.
- Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
- Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
- By eliminating flex associated with original equipment, these high strength links are engineered to improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
- DIY Lateral locks prevent shifting or sideways movement of the sway bar under lateral (cornering) loads.
- Manufactured from high quality alloy and include heavy duty steel ball joint ends ensuring maximum strength and durability.
Specifications
| Part Number | BWK002 |
| Part Name | Sway Bars |
| Vehicle | 2005-2018 Volkswagen Jetta |
| Chassis Code | 1K/5K |
| Bushing Material | Polyurethane |
| Sway Bar Adjustable - Front | Yes |
| Sway Bar Diameter - Front | 24 mm |
| Sway Bar Included - Front | Yes |
| Sway Bar Links Included - Front | Yes |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 4 |
| Kit Contents | 2 Sway Bars, 4 Links, 4 Bushings, 2 Saddles, 4 Lateral Locks, 2 Spacers, 2 Bolts, 22 Washers, 4 Nuts |
| Sway Bar Adjustable - Rear | Yes |
| Sway Bar Diameter - Rear | 24 mm |
| Sway Bar Included - Rear | Yes |
| Sway Bar Links Included - Rear | Yes |
| Vehicle Placement | Front and Rear |
| Wheel Alignment Required | Yes |
| Notes | Sway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip |
Vehicle Fitment
- 2005 Volkswagen Jetta (1K/5K)
- 2006 Volkswagen Jetta (1K/5K)
- 2007 Volkswagen Jetta (1K/5K)
- 2008 Volkswagen Jetta (1K/5K)
- 2009 Volkswagen Jetta (1K/5K)
- 2010 Volkswagen Jetta (1K/5K)
- 2011 Volkswagen Jetta (1K/5K)
- 2012 Volkswagen Jetta (1K/5K)
- 2013 Volkswagen Jetta (1K/5K)
- 2014 Volkswagen Jetta (1K/5K)
- 2015 Volkswagen Jetta (1K/5K)
- 2016 Volkswagen Jetta (1K/5K)
- 2017 Volkswagen Jetta (1K/5K)
- 2018 Volkswagen Jetta (1K/5K)
