Product Details

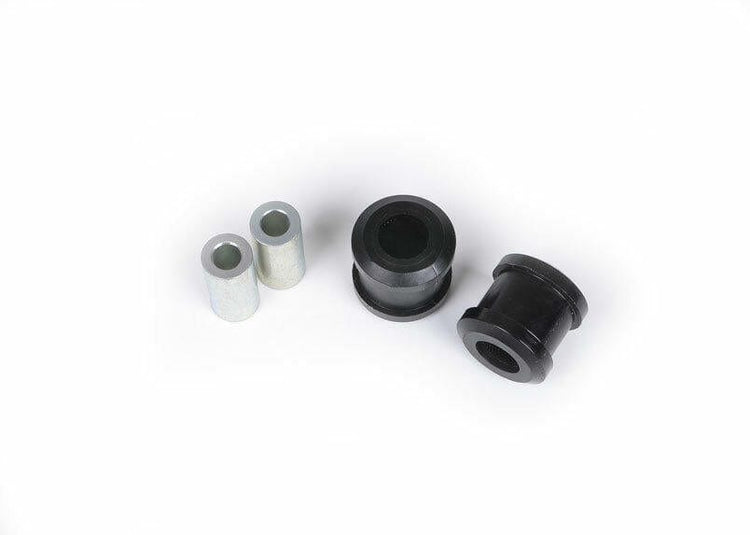

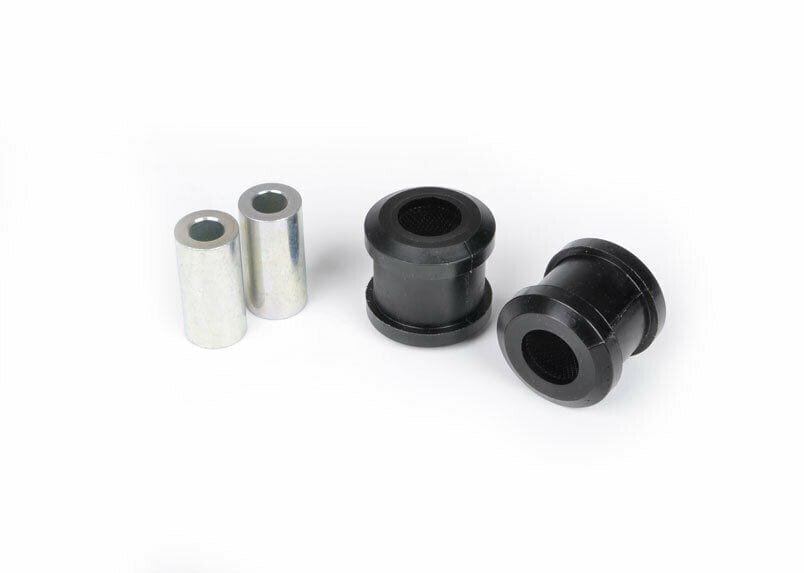

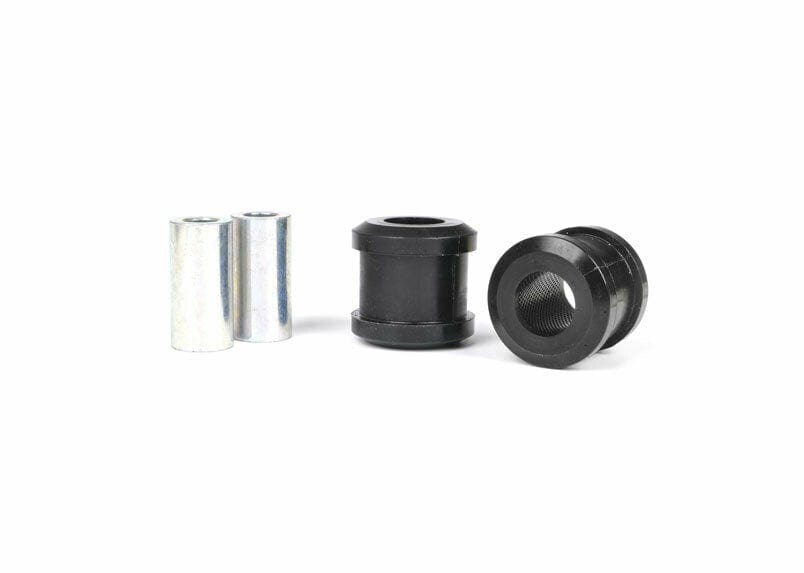

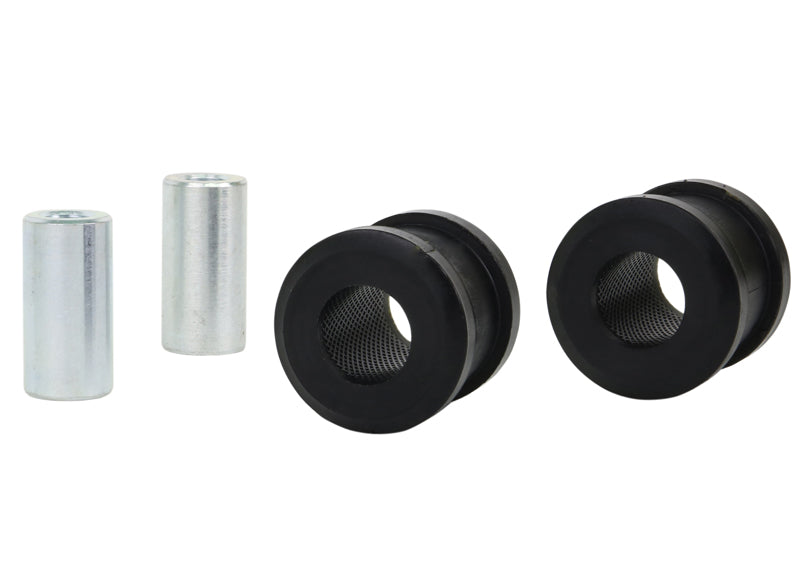

This Whiteline Rear Upper Inner Control Arm Bushing fits the 2005-2007 Volkswagen Jetta 2.5 (1K). The part number is W63549. Position: rear. You receive 2 bushings and 2 tubes.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated moderate, with about 3 hours of work listed. Plan on a wheel alignment afterward. To go with it on the Jetta, see Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.
Features
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
- Material: Built from polyurethane.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Finish: The metal parts are powder coated for durability.
Specifications
| Part Number | W63549 |
| Part Name | Control Arm Bushing |
| Vehicle | 2005-2007 Volkswagen Jetta 2.5 |
| Chassis Code | 1K |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 40.3 mm |
| Bushing Quantity | 2 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
