Product Details

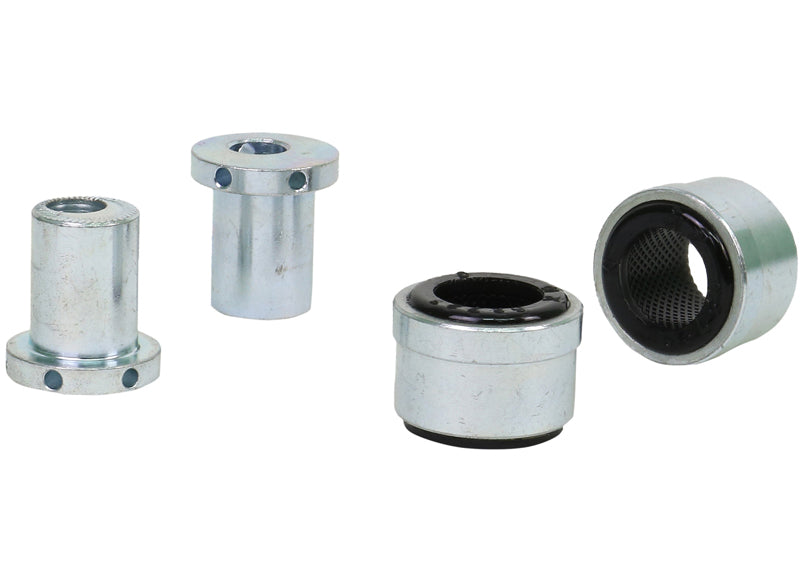

This Whiteline Rear Upper Inner Control Arm Bushing Kit fits the 2002-2004 Ford Focus SVT, ZTW (C170). In the box: 2 shell bushings and 2 tubes. Application note: Suits cast arm. On-car adjustable allows +/-1.0 degrees Camber. Part number KCA394. Position: rear.

Lowering a car or fitting wider tires can push camber out of the range an alignment shop can correct with factory parts. This offset bushing moves the arm's pivot point to give the technician more to work with, while also replacing the soft rubber that was there.

Expect a moderate job of about 2 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Focus: Adjustable Front Sway Bar Link, Rear Sway Bar Link, and Heavy Duty Blade Adjustable 22mm Rear Sway Bar.

Features

  • Camber adjustment: Designed to optimize camber alignment and offset the effect of body roll and tire roll in corners.
  • Material: Polyurethane construction.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Install guide: An install guide comes in the box.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Grease: Moly grease is supplied to prolong the life of the parts.
Specifications
Part Number KCA394
Part Name Control Arm Bushing
Vehicle 2002-2004 Ford Focus SVT, ZTW
Chassis Code C170
Bushing 1 Inner Diameter 12 mm
Bushing 1 Outer Diameter 38 mm
Bushing 2 Outer Diameter 36.2 mm
Bushing Quantity 2 Shell Bushings
Grade Type Performance
Inside Diameter 12.2 mm
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 38 mm
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Suits cast arm. On-car adjustable allows +/-1.0Degree Camber;

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2002FordFocusFWDSuits cast arm. On-car adjustable allows +/-1.0Degree Camber;
2003FordFocusFWDSuits cast arm. On-car adjustable allows +/-1.0Degree Camber;
2004FordFocusFWDSuits cast arm. On-car adjustable allows +/-1.0Degree Camber;
