Product Details

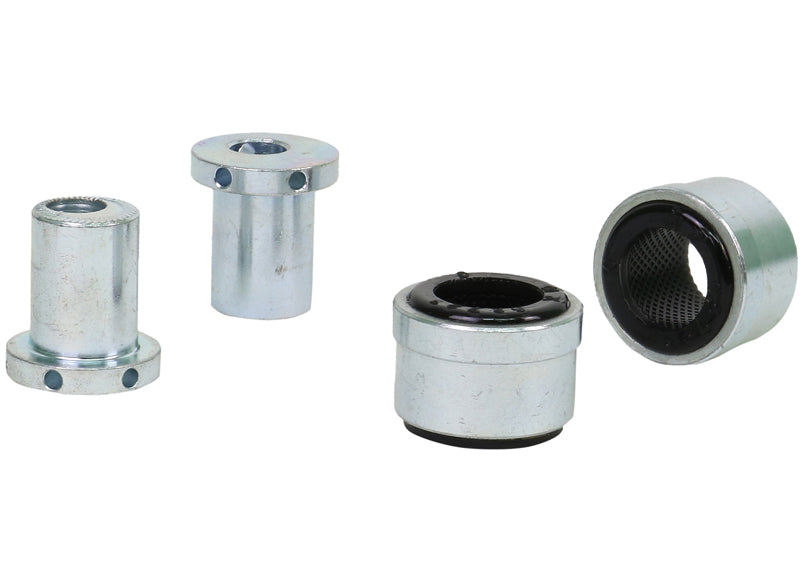

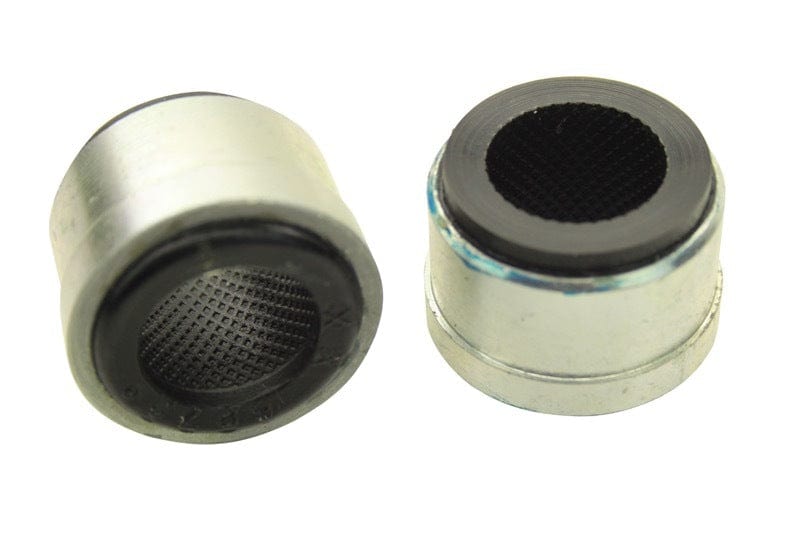

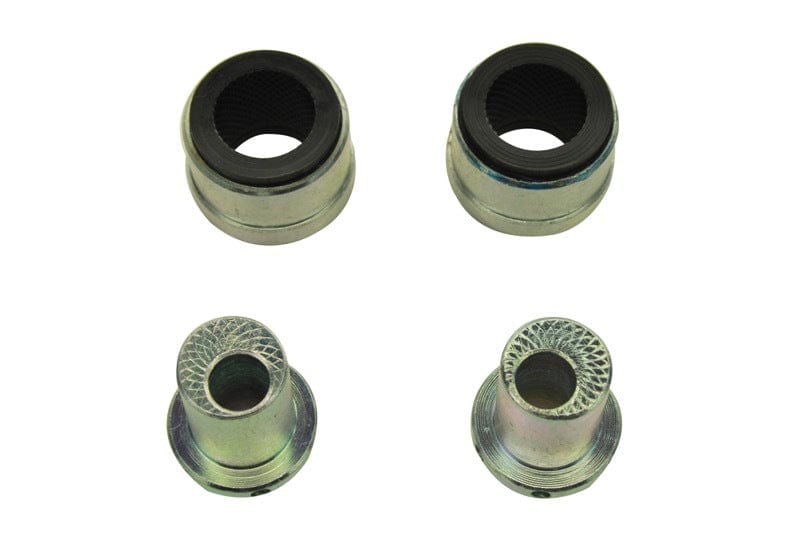

This Whiteline Rear Upper Inner Control Arm Bushing Kit fits the 2000-2006 Ford Focus ZX3 (C170). Application note: Suits cast arm. On-car adjustable allows +/-1.0 degrees Camber. In the box: 2 shell bushings and 2 tubes. This part is for the rear of the vehicle. The part number is KCA394.

Most factory control arm bushings are centered and fixed. An offset one is built so the arm sits at a slightly different angle, which changes camber, and the firmer material stops that setting drifting under load.

Expect a moderate job of about 2 hours. Get the car aligned once it is back on the ground. We also list Adjustable Front Sway Bar Link, Rear Sway Bar Link, and Heavy Duty Blade Adjustable 22mm Rear Sway Bar for the Focus.

Features

  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Camber adjustment: Helps hold the tire flatter on the road by correcting camber changes through roll.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Bonded design: A bonded design adds strength for high load applications.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
Specifications
Part Number KCA394
Part Name Control Arm Bushing
Vehicle 2000-2006 Ford Focus ZX3
Chassis Code C170
Bushing 1 Inner Diameter 12 mm
Bushing 1 Outer Diameter 38 mm
Bushing 2 Outer Diameter 36.2 mm
Bushing Quantity 2 Shell Bushings
Grade Type Performance
Inside Diameter 12.2 mm
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 38 mm
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Suits cast arm. On-car adjustable allows +/-1.0Degree Camber;

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2000FordFocusFWDSuits cast arm. On-car adjustable allows +/-1.0Degree Camber;
2001FordFocusFWDSuits cast arm. On-car adjustable allows +/-1.0Degree Camber;
2002FordFocusFWDSuits cast arm. On-car adjustable allows +/-1.0Degree Camber;
2003FordFocusFWDSuits cast arm. On-car adjustable allows +/-1.0Degree Camber;
2004FordFocusFWDSuits cast arm. On-car adjustable allows +/-1.0Degree Camber;
2005FordFocusFWDSuits cast arm. On-car adjustable allows +/-1.0Degree Camber;
2006FordFocusFWDSuits cast arm. On-car adjustable allows +/-1.0Degree Camber;
