Product Details

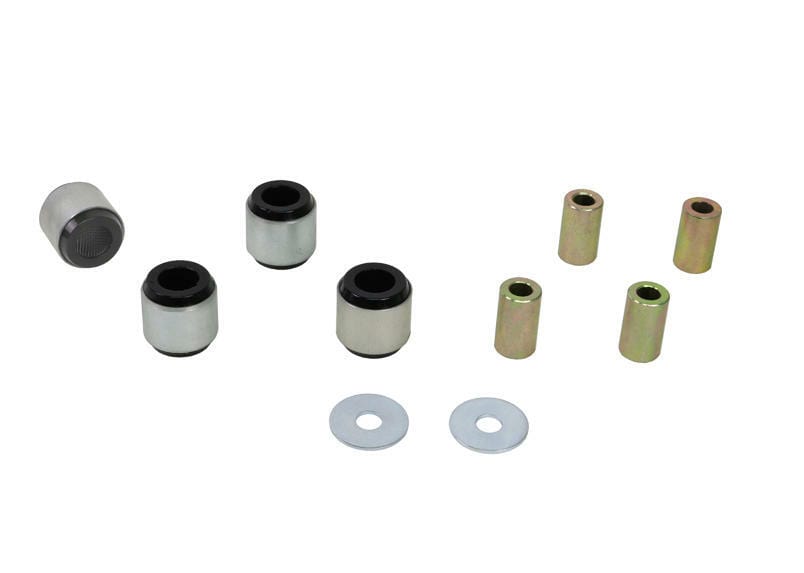

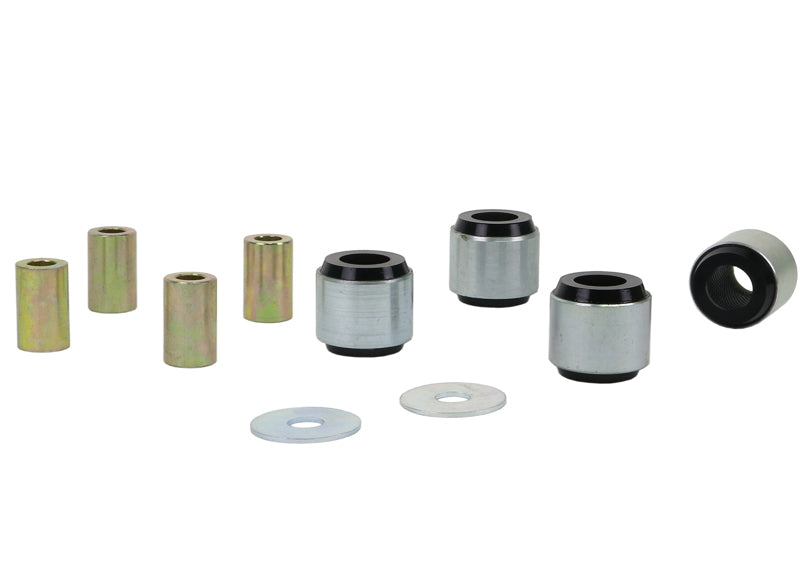

This Whiteline Rear Control Arm Upper Front Bushing (Standard Repl.) fits the 2006-2008 Dodge Magnum SRT8 (LX). Whiteline's note for this fit: Standard Replacements. Qty 2 needed per vehicle. Placement: rear. The part number is W63340. The kit contains 4 shell bushings, 4 tubes, and 2 washers.

A fresh control arm bushing is one of the more cost-effective ways to bring a tired suspension back. It swaps the worn factory part for one that holds the arm steady again while keeping the ride close to stock.

Expect a moderate job of about 3 hours. An alignment is required after installation. To go with it on the Magnum, see Front and Rear Sway Bar Kit, Rear Subframe Mount Bushing, and Front Lower Radius Arm Bushing.

Features

  • Finish: A powder coated finish resists corrosion and wear.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Bonded design: A bonded design adds strength for high load applications.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Material: Made from polyurethane.
Specifications
Part Number W63340
Part Name Control Arm Bushing
Vehicle 2006-2008 Dodge Magnum SRT8
Drivetrain RWD/AWD
Chassis Code LX
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 39.5 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Shell Bushings, 4 Tubes, 2 Washers
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Standard Replacements. Qty 2 needed per vehicle.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006DodgeMagnumRWDStandard Replacements. Qty 2 needed per vehicle.
2006DodgeMagnumAWDStandard Replacements. Qty 2 needed per vehicle.
2007DodgeMagnumRWDStandard Replacements. Qty 2 needed per vehicle.
2007DodgeMagnumAWDStandard Replacements. Qty 2 needed per vehicle.
2008DodgeMagnumRWDStandard Replacements. Qty 2 needed per vehicle.
2008DodgeMagnumAWDStandard Replacements. Qty 2 needed per vehicle.
