Whiteline Rear Control Arm Upper Front Bushing for 2009-2013 BMW 328i xDrive 3 Series (E90/E91/E92/E93) W63403
Whiteline Rear Control Arm Upper Front Bushing for the BMW 328i xDrive 3 Series

Whiteline

|

SKU: W63403

Whiteline Rear Control Arm Upper Front Bushing for 2009-2013 BMW 328i xDrive 3 Series (E90/E91/E92/E93)

$75.49

MSRP $83.88 You save $8.39

Ask a question
In stock, ready to ship

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In-Stock: 1 business day
  • Out of Stock: 3-4 weeks
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

Lifetime Manufacturer Warranty

All Whiteline products, except those listed below, are covered by a lifetime warranty against manufacturing defects in material and workmanship, valid for the original vehicle the product was installed on.

Whiteline Ball Joints, Tie Rod Ends, Bearings, Links and Springs are covered for 3 years or 60,000 km (36,000 miles), whichever comes first.

Exclusions
The warranty does not cover:

  • Incorrect installation or misuse.
  • Modification or alteration of parts.
  • Damage due to competition, motorsport, or off-road use.
  • Wear and tear from normal use.
  • Accidental or collision damage.

More Information

Product Details

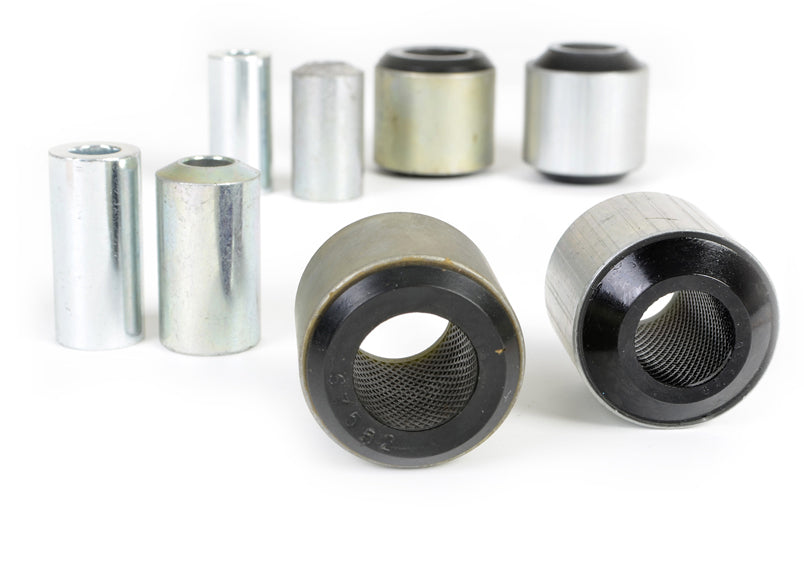

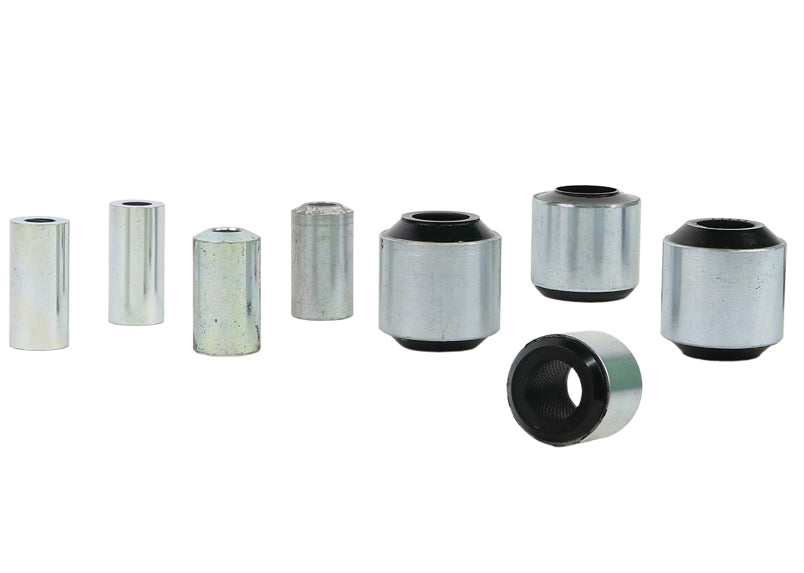

This Whiteline Rear Control Arm Upper Front Bushing fits the 2009-2013 BMW 328i xDrive 3 Series. Application note: Fits OEM Arm 33-32-2-406-289. The part number is W63403. It is listed for the E90/E91/E92/E93 chassis. Position: rear. Included: 4 shell bushings and 4 tubes.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the 328i xDrive 3 Series, see Adjustable Front Sway Bar Link, Rear Subframe Mount Bushing, and Front and Rear Essential Vehicle Kit.

Features

  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Install guide: Step-by-step installation instructions come with it.
Specifications
Part Number W63403
Part Name Control Arm Bushing
Vehicle 2009-2013 BMW 328i xDrive 3 Series
Chassis Code E90/E91/E92/E93
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 45.4 mm
Bushing 2 Inner Diameter 12.2 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Shell Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Fits OEM Arm 33-32-2-406-289
Fitment for 328i control arm bushings

Fits the 2009-2013 BMW 328i xDrive 3 Series. Each model year is listed below.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009BMW328iAWDFits OEM Arm 33-32-2-406-289
2010BMW328iAWDFits OEM Arm 33-32-2-406-289
2011BMW328iAWDFits OEM Arm 33-32-2-406-289
2012BMW328iAWDFits OEM Arm 33-32-2-406-289
2013BMW328iAWDFits OEM Arm 33-32-2-406-289
