Product Details

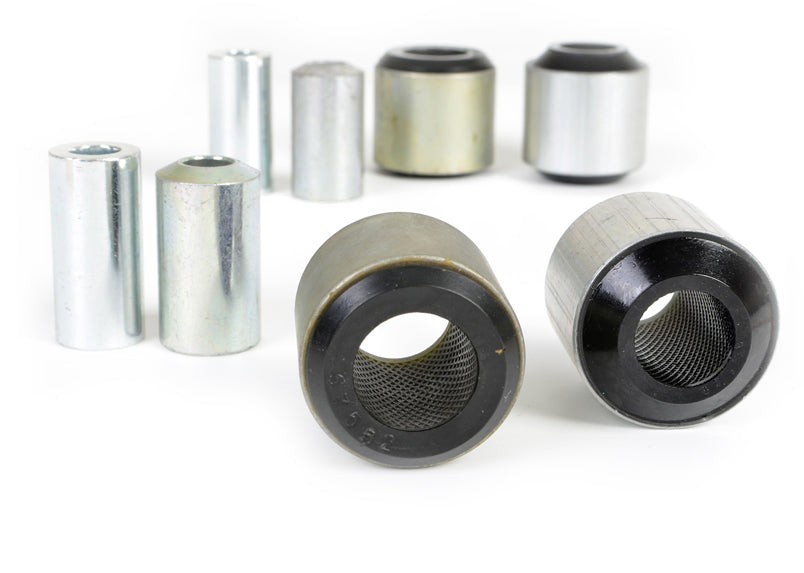

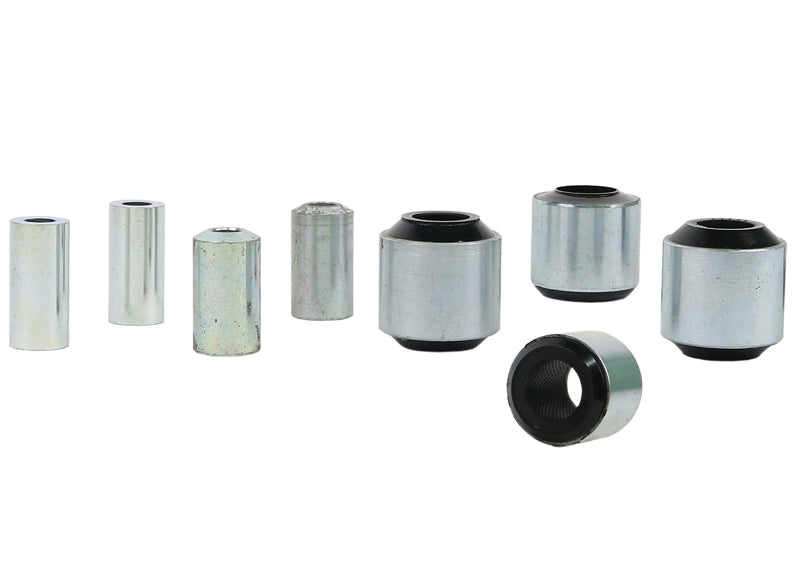

This Whiteline Rear Control Arm Upper Front Bushing fits the 2007-2013 BMW 335i 3 Series. You receive 4 shell bushings and 4 tubes. Part number W63403. Application note: Fits OEM Arm 33-32-2-406-289. This part is for the rear of the vehicle.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as moderate and lists about 3 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the 335i 3 Series: Adjustable Front Sway Bar Link, Rear Subframe Mount Bushing, and Heavy Duty 20mm Rear Sway Bar.
Features
- Grease: Supplied with molybdenum disulfide grease for extended service life.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Material: Made from polyurethane.
- Install guide: An install guide comes in the box.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Finish: Powder coat finish guards the metal against chips and corrosion.
Specifications
| Part Number | W63403 |
| Part Name | Control Arm Bushing |
| Vehicle | 2007-2013 BMW 335i 3 Series |
| Chassis Code | E90/E91/E92/E93 |
| Drivetrain | RWD |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 45.4 mm |
| Bushing 2 Inner Diameter | 12.2 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Fits OEM Arm 33-32-2-406-289 |
Fitment for 335i control arm bushings
Fits the 2007-2013 BMW 335i 3 Series. Each model year is listed below.
