Product Details

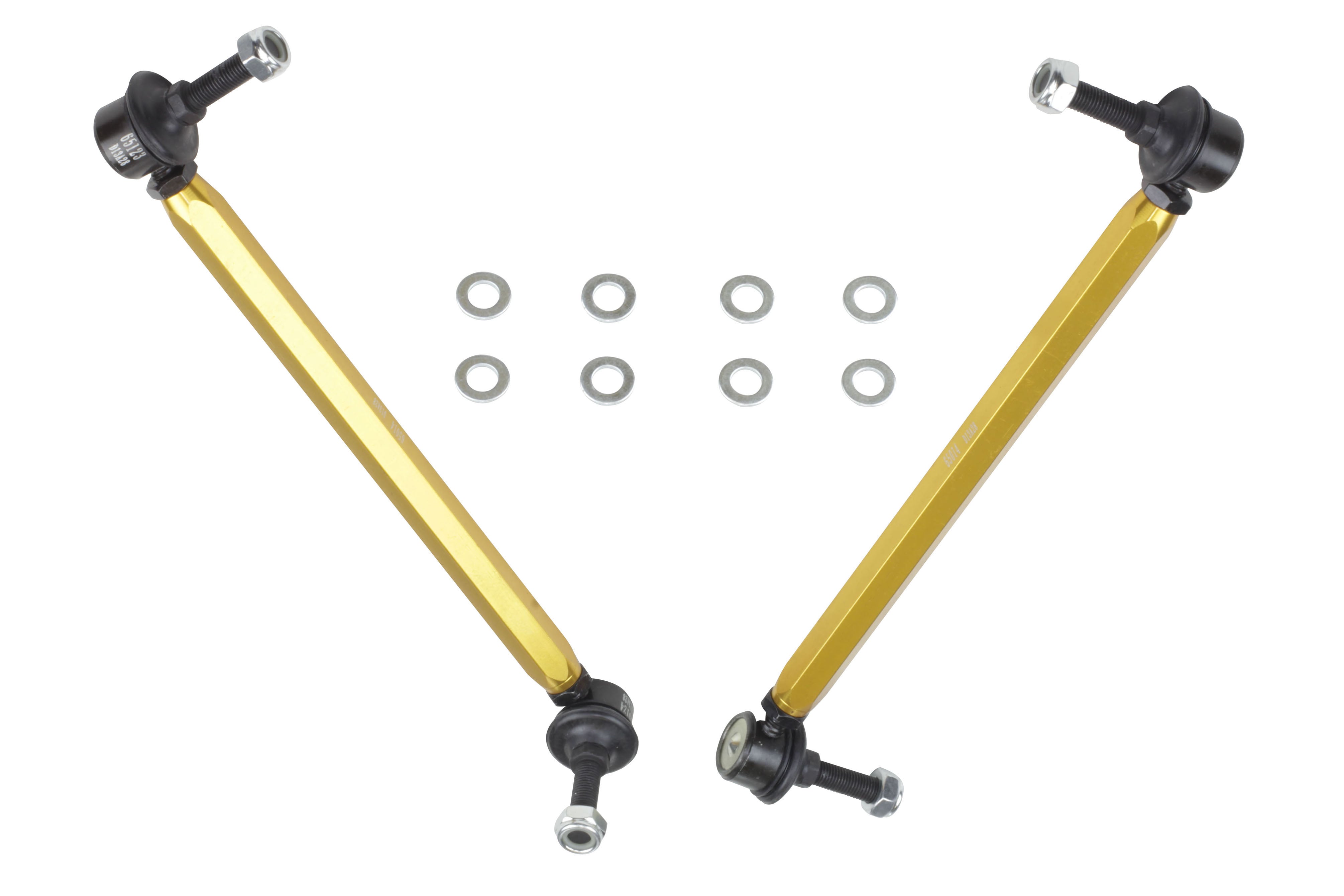

This Whiteline Adjustable Front Sway Bar Link fits the 2007-2013 BMW 335i 3 Series (E90/E91/E92/E93). Whiteline part number: KLC154. In the box: 2 links and 8 washers. Position: front. Application note: Adjustable extra heavy duty.

Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this front link is built to keep that connection firm. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward. Other Whiteline parts we list for the 335i 3 Series: Rear Subframe Mount Bushing, Heavy Duty 20mm Rear Sway Bar, and Front and Rear Essential Vehicle Kit.

Features

  • Install guide: Step-by-step installation instructions come with it.
  • Hardware: Supplied with locking nuts and washers.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
  • Preload-free setup: Setting the length on the car lets the bar rest without preload.
  • Construction: Alloy construction keeps the weight down while handling the loads.
Specifications
Part Number KLC154
Part Name Sway Bar Link
Vehicle 2007-2013 BMW 335i 3 Series
Chassis Code E90/E91/E92/E93
Drivetrain RWD
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links, 8 Washers
Length 290-315 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable extra heavy duty. Length 290-315mm. Bolt diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007BMW335iRWDAdjustable extra heavy duty. Length 290-315mm. Bolt diameter 10mm.
2008BMW335iRWDAdjustable extra heavy duty. Length 290-315mm. Bolt diameter 10mm.
2009BMW335iRWDAdjustable extra heavy duty. Length 290-315mm. Bolt diameter 10mm.
2010BMW335iRWDAdjustable extra heavy duty. Length 290-315mm. Bolt diameter 10mm.
2011BMW335iRWDAdjustable extra heavy duty. Length 290-315mm. Bolt diameter 10mm.
2012BMW335iRWDAdjustable extra heavy duty. Length 290-315mm. Bolt diameter 10mm.
2013BMW335iRWDAdjustable extra heavy duty. Length 290-315mm. Bolt diameter 10mm.
