Product Details

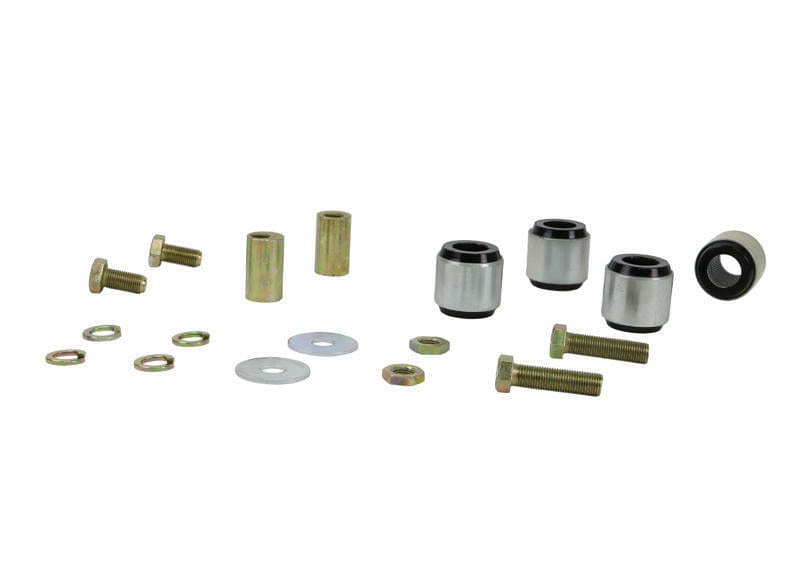

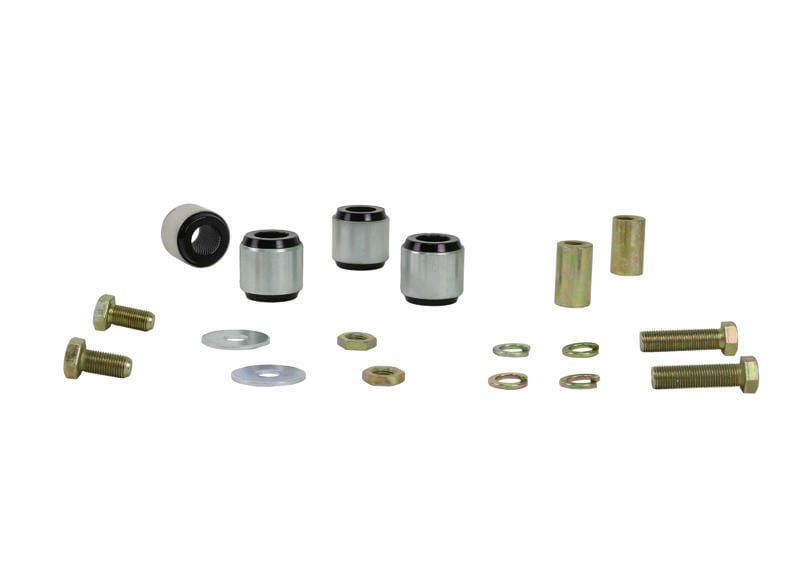

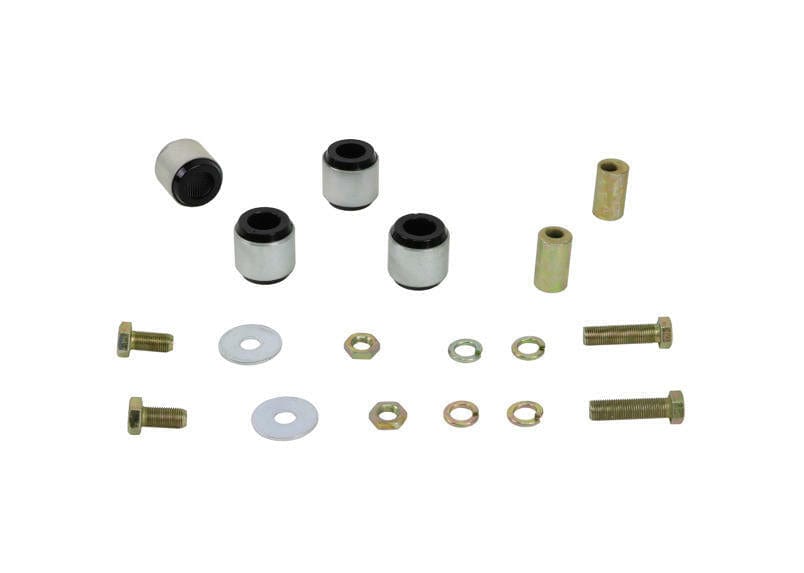

This Whiteline Rear Control Arm Upper Front Bushing fits the 2005-2010 Chrysler 300 SRT8 C (LX). Order it as part number W63342. Application note: Adds +/- 0.5 degrees Camber. Qty 2 needed per vehicle. You receive 4 shell bushings and 4 tubes. It goes on the rear of the vehicle.
Most factory control arm bushings are centered and fixed. An offset one is built so the arm sits at a slightly different angle, which changes camber, and the firmer material stops that setting drifting under load.
Whiteline rates the install as moderate and lists about 3 hours. An alignment is required after installation. Other Whiteline parts we list for the 300 SRT8: Rear Subframe Mount Bushing, Front and Rear Sway Bar Kit, and Front Lower Radius Arm Bushing.
Features
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Finish: Powder coating covers the metal for protection against chips and rust.
- Bonded design: The bushing is bonded for strength where loads are highest.
- Corrosion protection: The hardware is plated to stand up to road conditions.
Specifications
| Part Number | W63342 |
| Part Name | Control Arm Bushing |
| Vehicle | 2005-2010 Chrysler 300 SRT8 C |
| Drivetrain | RWD |
| Chassis Code | LX |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 39.5 mm |
| Bushing 2 Inner Diameter | 12.2 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Adds +/- 0.5Degree Camber. Qty 2 needed per vehicle. |
