Product Details

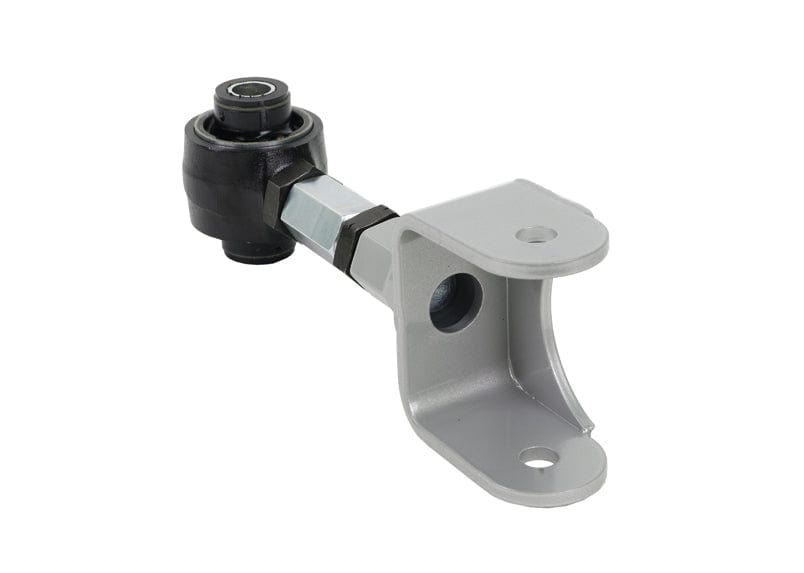

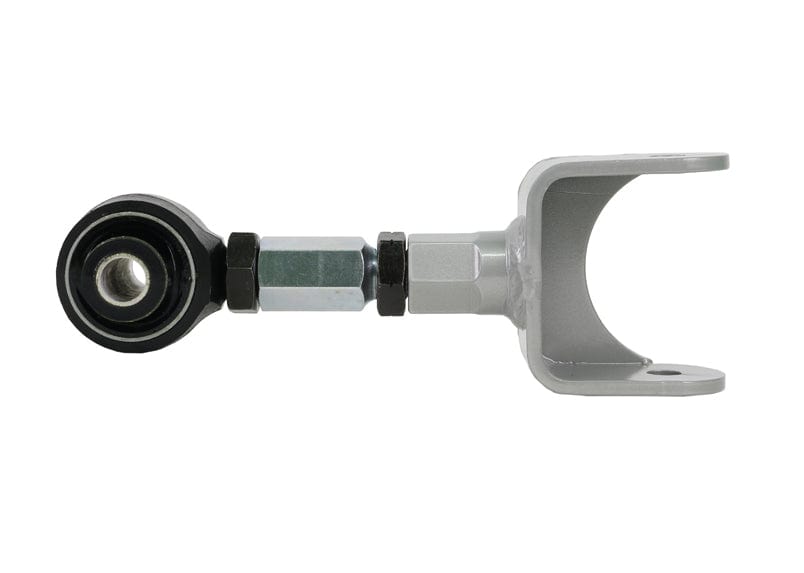

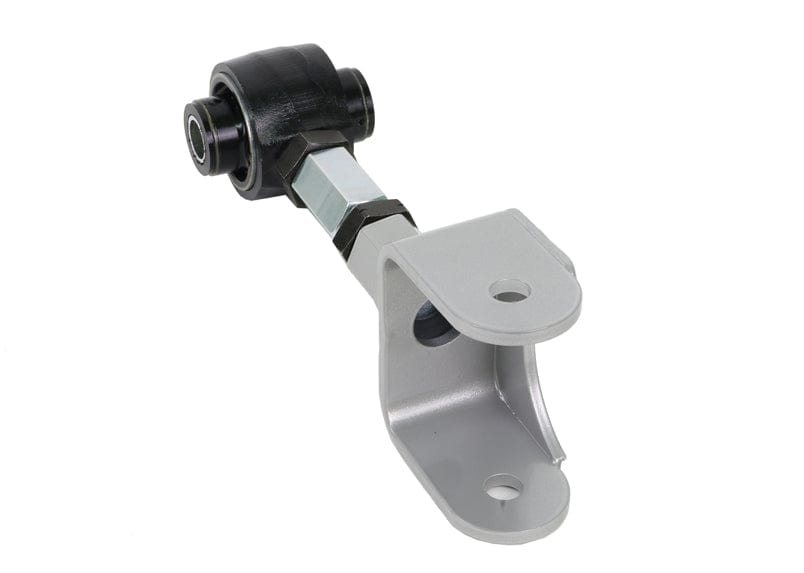

These Whiteline Rear Upper Control Arms fit the 2011-2014 Ford Mustang Base, GT, Shelby GT500 (S197). Placement: rear. In the box: 1 arm. The part number is KTA205.

These arms replace the factory rear upper arms with adjustable ones. Changing their length moves the top of the wheel in or out, so the rear alignment can be set precisely instead of being left wherever the factory parts allow.

Application note: Complete new heavy duty arms: on-car adjustable for pinion angle, recommended use with KSB729 rear chassis brace motorsport. Expect a moderate job of about 2 hours. An alignment is required after installation. To go with it on the Mustang, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Front Sway Bar Link.

Features

  • Bushing material: Polyurethane bushings flex far less than rubber ones.
  • Pinion angle: Designed to correct pinion angle to cut vibration and put power down better.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Install guide: Whiteline packs an install guide with it.
Specifications
Part Number KTA205
Part Name Control Arm
Vehicle 2011-2014 Ford Mustang Base, GT, Shelby GT500
Chassis Code S197
Adjustable Yes
Ball Joint Included No
Bushing Color Black
Bushing Material Polyurethane
Bushings Included Yes
Construction Boxed
Control Arm Color Silver
Control Arm Construction Boxed
Control Arm Material Steel
Grade Type Performance
Grease Fitting Included No
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 1 Arm
Material Steel
Pre-Assembled Yes
Set No
Suspension Grade Type Performance
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Adjustment range 221-250mm (8.73"-9.84") - complete new heavy duty arms - on-car adjustable for pinion angle - recommended use with KSB729 rear chassis brace MOTORSPORT

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2011FordMustangRWDAdjustment range 221-250mm (8.73"-9.84") - complete new heavy duty arms - on-car adjustable for pinion angle - recommended use with KSB729 rear chassis brace MOTORSPORT
2012FordMustangRWDAdjustment range 221-250mm (8.73"-9.84") - complete new heavy duty arms - on-car adjustable for pinion angle - recommended use with KSB729 rear chassis brace MOTORSPORT
2013FordMustangRWDAdjustment range 221-250mm (8.73"-9.84") - complete new heavy duty arms - on-car adjustable for pinion angle - recommended use with KSB729 rear chassis brace MOTORSPORT
2014FordMustangRWDAdjustment range 221-250mm (8.73"-9.84") - complete new heavy duty arms - on-car adjustable for pinion angle - recommended use with KSB729 rear chassis brace MOTORSPORT
