Product Details

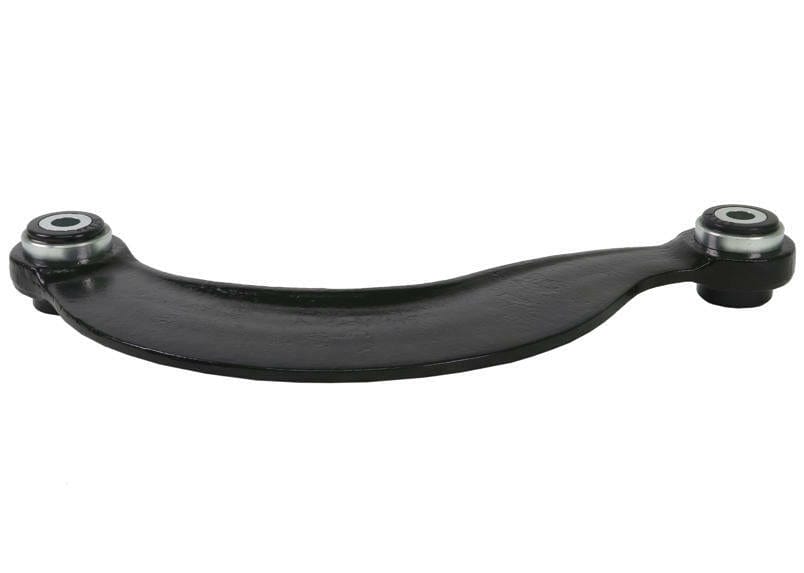

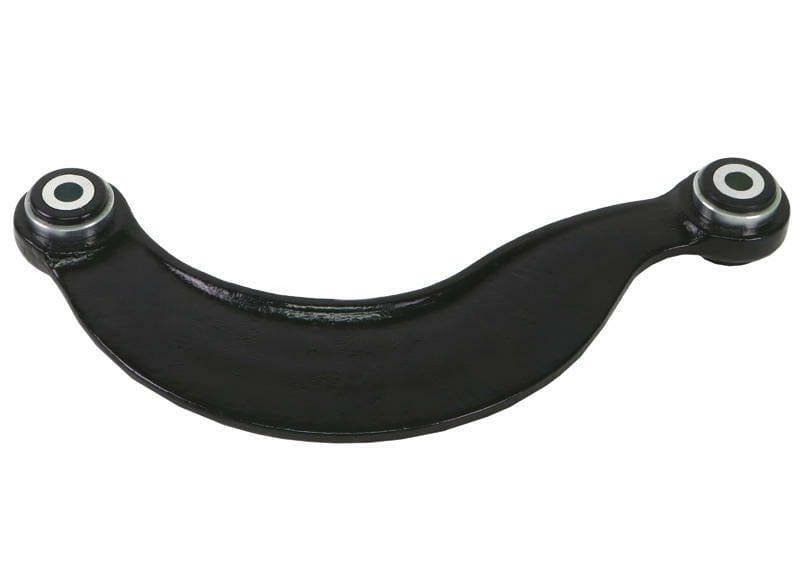

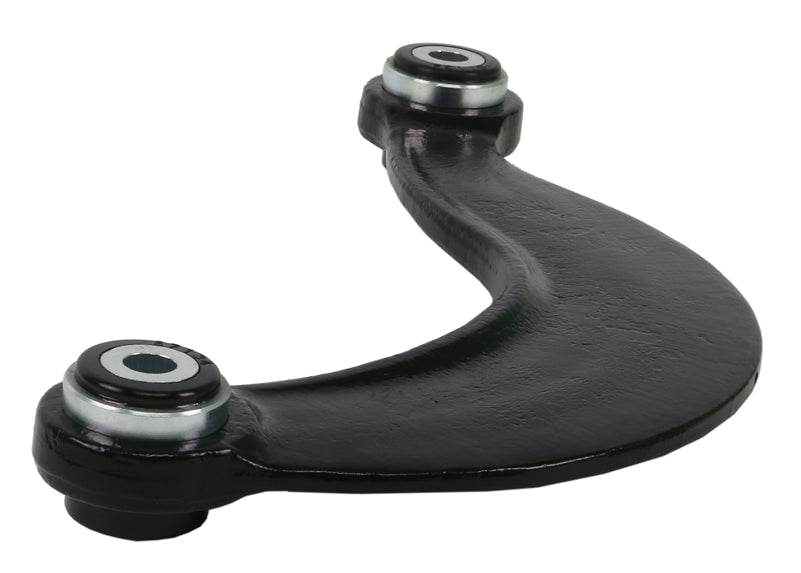

These Whiteline Rear Upper Control Arms fit the 2007-2013 Mazda 3 Mazdaspeed Base (BK/BL). Position: rear. The kit contains 1 arm. Part number WA402. Whiteline's note for this fit: Left hand or Right side only. Complete arm fitted with bushings.
The rear upper control arm helps decide how the top of the rear wheel leans, which makes it a main control for rear camber. A fixed factory arm offers little room to change that angle. This adjustable set gives the alignment shop a way to set rear camber to the target, which supports even tire wear and consistent grip.
Expect an easy job of about 2 hours. An alignment is required after installation. We also list Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit for the Mazda 3.
Features
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
- Finish: An E-coat finish protects the metal from corrosion.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Easy to fit: Designed so the install needs no specialized skills or tools.
- Corrosion protection: Plated finish keeps rust off the hardware.
Specifications
| Part Number | WA402 |
| Part Name | Control Arm |
| Vehicle | 2007-2013 Mazda 3 Mazdaspeed Base |
| Chassis Code | BK/BL |
| Adjustable | No |
| Ball Joint Included | No |
| Bushings Included | Yes |
| Grade Type | Performance |
| Installation Difficulty | Easy |
| Installation Time (hrs) | 2 |
| Kit Contents | 1 Arm |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Left hand or Right side only. Complete arm fitted with bushings |
