Product Details

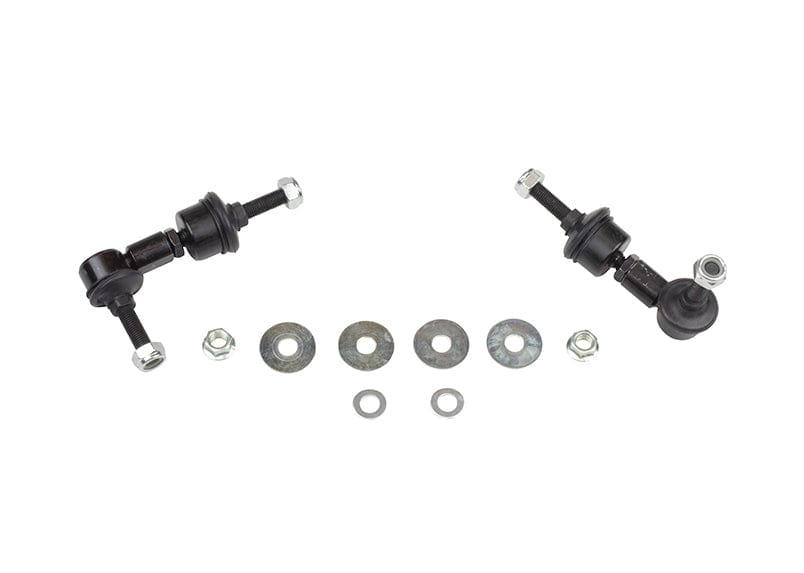

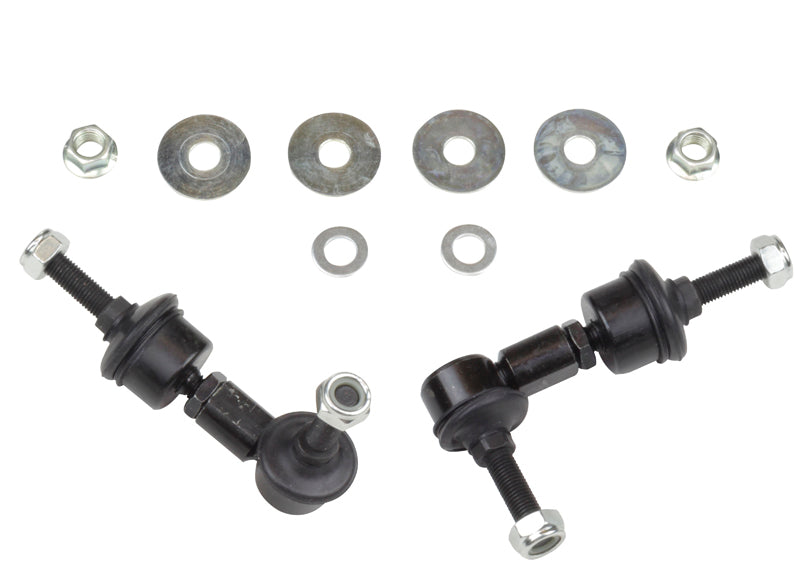

This Whiteline Adjustable Rear Sway Bar Link fits the 2004-2013 Mazda 3 i, S (BK/BL). Whiteline's note for this fit: Adjustable Extra Heavy Duty. You receive 2 links. Whiteline part number: KLC157. This part is for the rear of the vehicle.

The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Expect a moderate job of about 1 hour. It does not require a wheel alignment. To go with it on the Mazda 3, see Adjustable Rear Upper Control Arm Set, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Material: Built from steel.
  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Install guide: An install guide comes in the box.
  • Hardware: The kit includes locking nuts and washers.
  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
Specifications
Part Number KLC157
Part Name Sway Bar Link
Vehicle 2004-2013 Mazda 3 i, S
Chassis Code BK/BL
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 85-95 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004MazdaMazda 3FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2005MazdaMazda 3FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2006MazdaMazda 3FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2007MazdaMazda 3FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2008MazdaMazda 3FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2009MazdaMazda 3FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2010MazdaMazda 3FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2011MazdaMazda 3FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2012MazdaMazda 3FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
2013MazdaMazda 3FWDAdjustable Extra Heavy Duty. Length 85-95mm. Bolt Diameter 10mm.
