Product Details

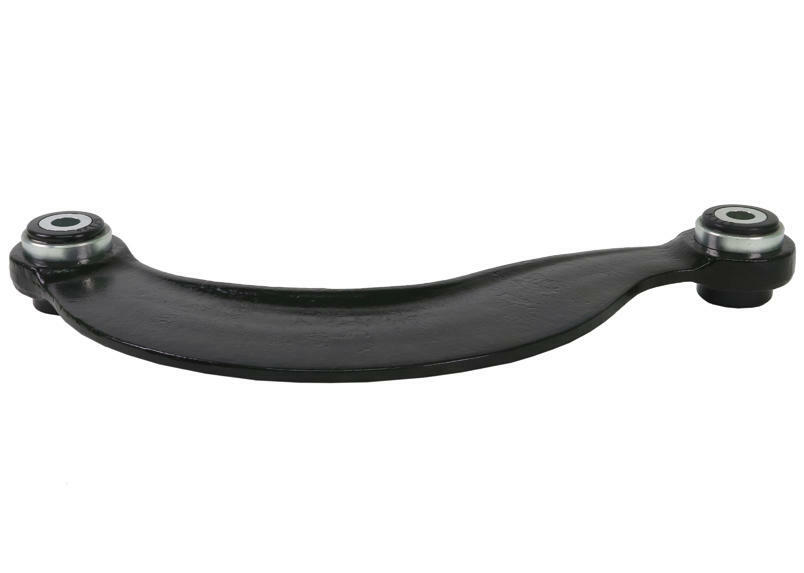

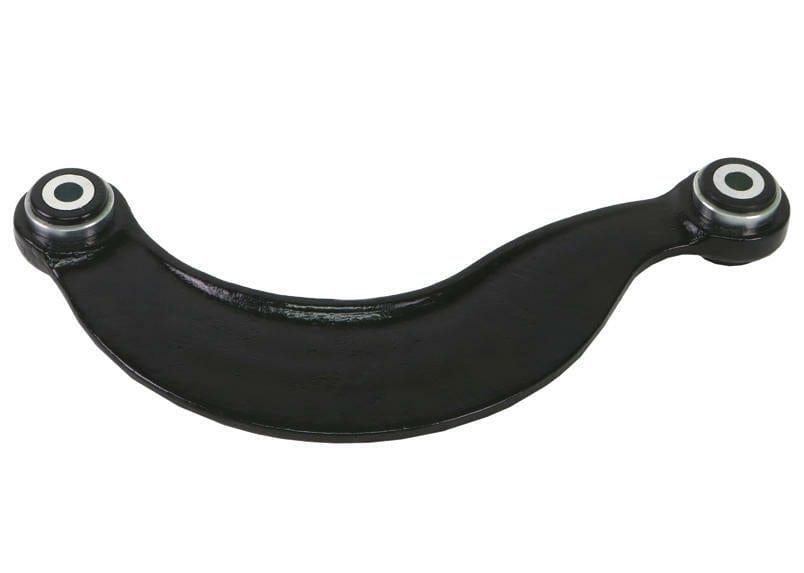

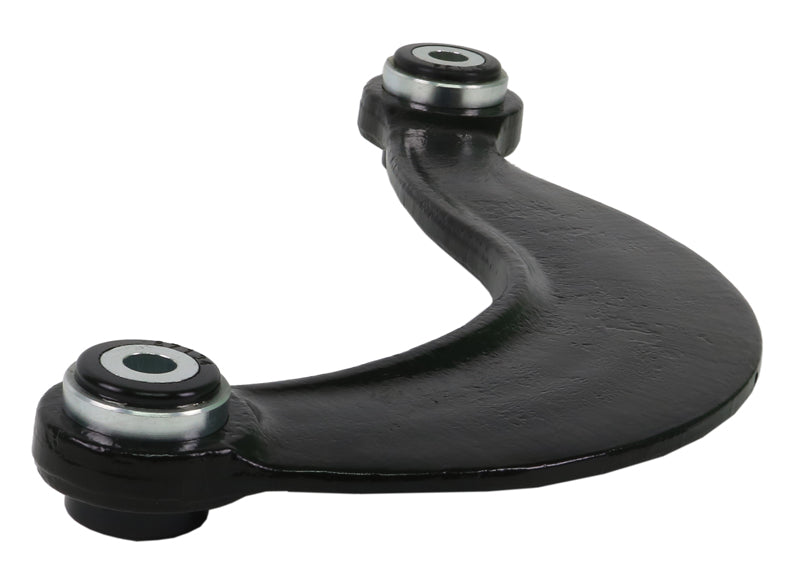

These Whiteline Rear Upper Control Arms fit the 2004-2013 Mazda 3 i, S (BK/BL). Whiteline's note for this fit: Left hand or Right side only. Complete arm fitted with bushings. Included: 1 arm. Placement: rear. Whiteline part number: WA402.

These arms replace the factory rear upper arms with adjustable ones. Changing their length moves the top of the wheel in or out, so the rear alignment can be set precisely instead of being left wherever the factory parts allow.

Expect an easy job of about 2 hours. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit for the Mazda 3.

Features

  • Bonded design: A bonded design adds strength for high load applications.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Easy to fit: Designed so the install needs no specialized skills or tools.
  • Finish: An E-coat finish protects the metal from corrosion.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
Specifications
Part Number WA402
Part Name Control Arm
Vehicle 2004-2013 Mazda 3 i, S
Chassis Code BK/BL
Adjustable No
Ball Joint Included No
Bushings Included Yes
Grade Type Performance
Installation Difficulty Easy
Installation Time (hrs) 2
Kit Contents 1 Arm
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Left hand or Right side only. Complete arm fitted with bushings

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004MazdaMazda 3FWDLeft hand or Right side only. Complete arm fitted with bushings
2005MazdaMazda 3FWDLeft hand or Right side only. Complete arm fitted with bushings
2006MazdaMazda 3FWDLeft hand or Right side only. Complete arm fitted with bushings
2007MazdaMazda 3FWDLeft hand or Right side only. Complete arm fitted with bushings
2008MazdaMazda 3FWDLeft hand or Right side only. Complete arm fitted with bushings
2009MazdaMazda 3FWDLeft hand or Right side only. Complete arm fitted with bushings
2010MazdaMazda 3FWDLeft hand or Right side only. Complete arm fitted with bushings
2011MazdaMazda 3FWDLeft hand or Right side only. Complete arm fitted with bushings
2012MazdaMazda 3FWDLeft hand or Right side only. Complete arm fitted with bushings
2013MazdaMazda 3FWDLeft hand or Right side only. Complete arm fitted with bushings
