Product Details

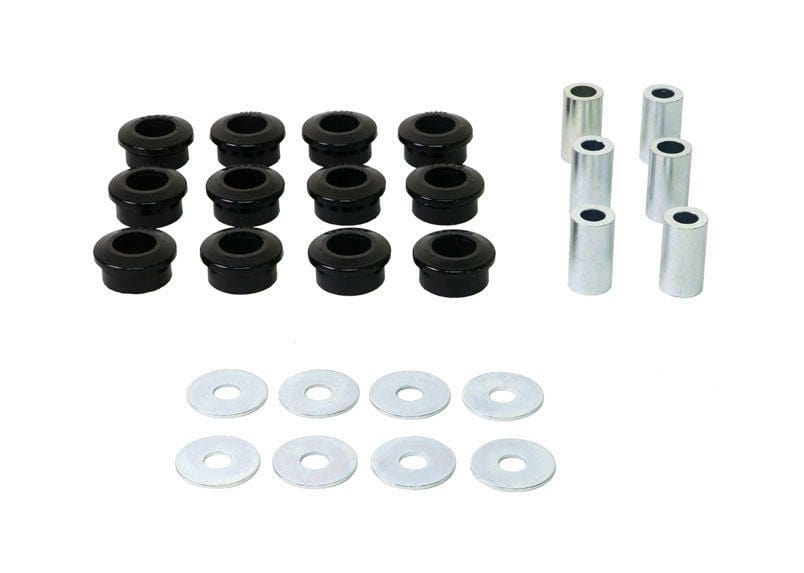

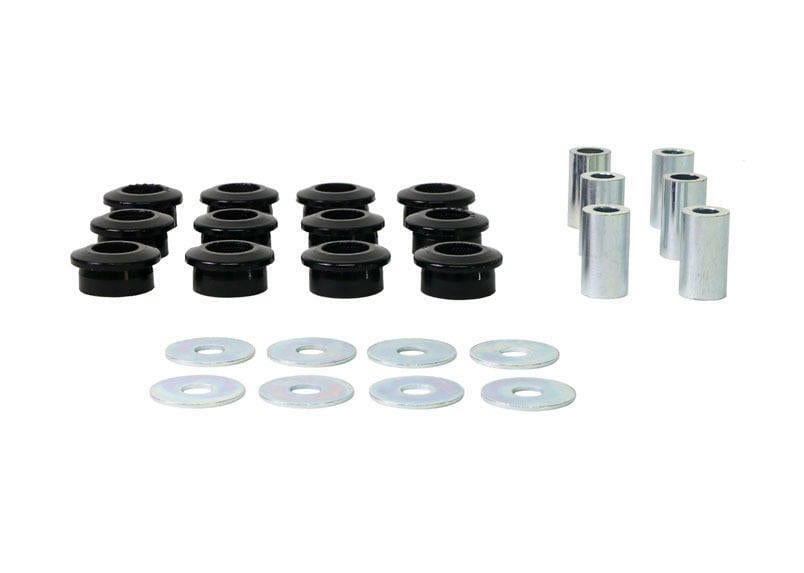

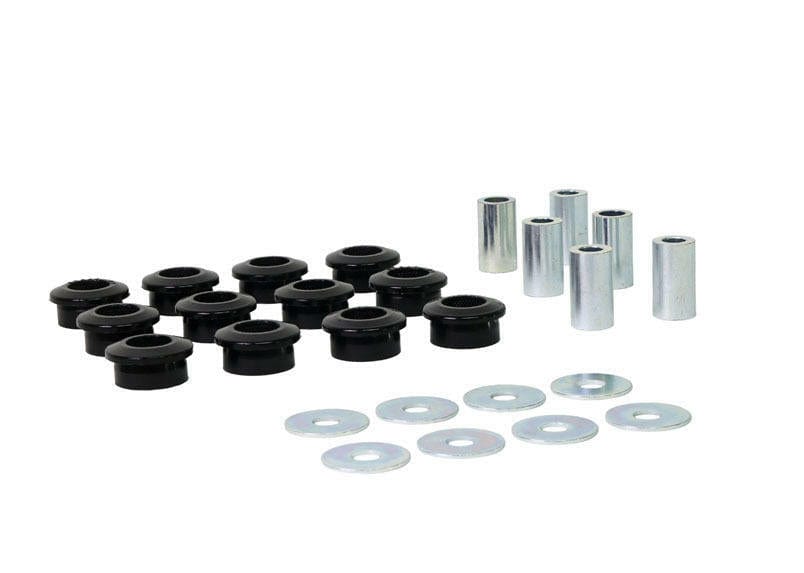

Whiteline Rear Control Arm Service Kit is made for the 2004 Subaru Outback. The chassis code on the listing is BP. Whiteline's note for this fit: Service kit to suit Whiteline control arms KTA124. The part number is KSK124. It goes on the rear of the vehicle. The kit contains 12 bushings, 6 tubes, and 8 washers.
Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.
Installation is rated moderate, with about 2 hours of work listed. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Outback: Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Front Bushing, and 14mm Adjustable Front Camber Bolts.
Features
- Material: Polyurethane construction.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
| Part Number | KSK124 |
| Part Name | Control Arm Bushing |
| Vehicle | 2004 Subaru Outback H6 35th Anniversary Edition, H6 VDC |
| Chassis Code | BP |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 35.1 mm |
| Bushing 2 Inner Diameter | 14.3 mm |
| Bushing Quantity | 12 Bushing |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 12 Bushings, 6 tubes, 8 Washers |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Service kit to suit Whiteline control arms KTA124 |
