Product Details

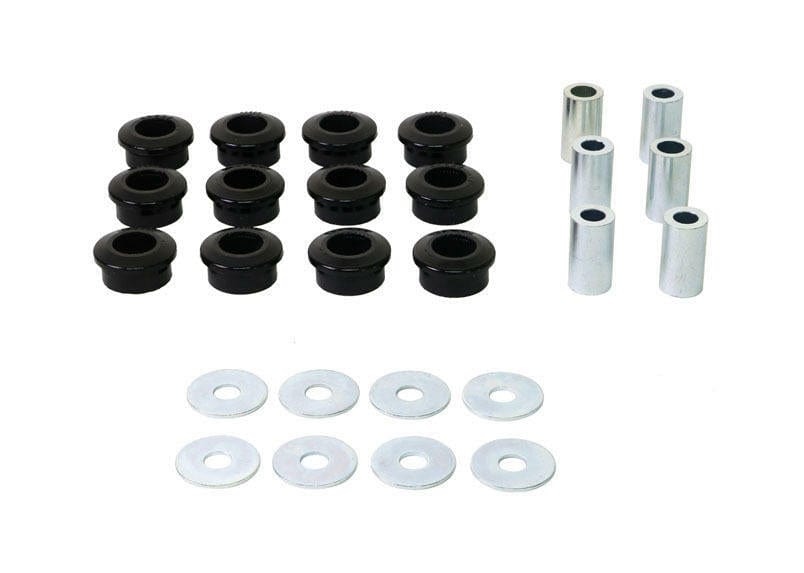

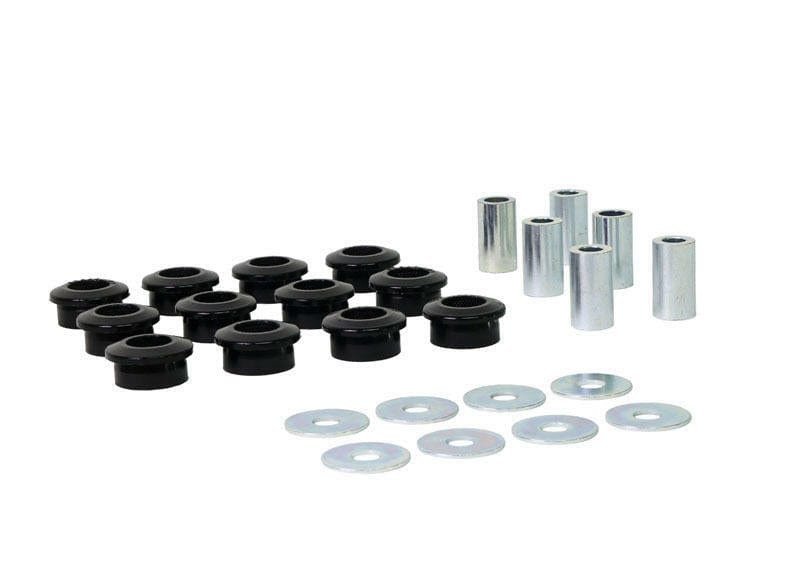

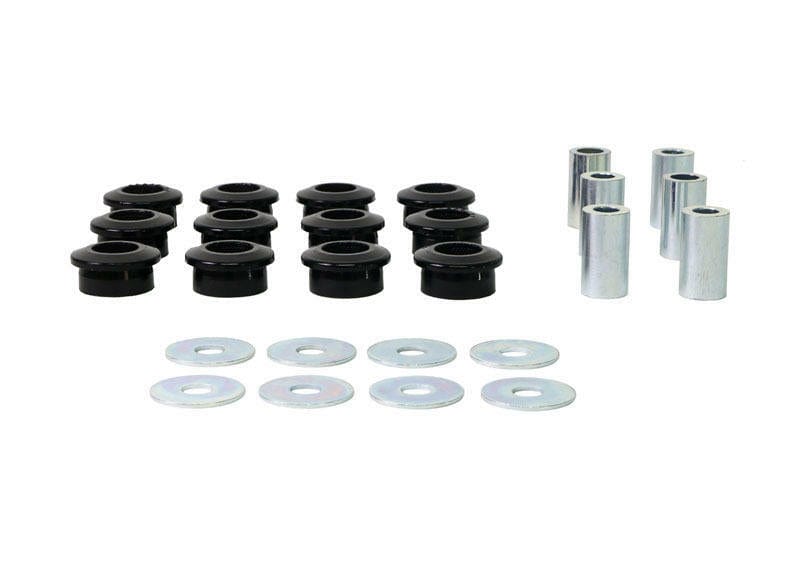

This page covers the Whiteline Rear Control Arm Service Kit for the 2002-2004 Subaru Outback H6. Whiteline part number: KSK124. Trim named on the listing: H6. It is listed for the BE/BH/BP chassis. Position: rear. In the box: 12 bushings, 6 tubes, and 8 washers. Whiteline's note for this fit: Service kit to suit Whiteline control arms KTA124.
A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated moderate, with about 2 hours of work listed. Plan on a wheel alignment afterward. To go with it on the Outback, see Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Front Bushing, and 14mm Adjustable Front Camber Bolts.
Features
- Corrosion protection: Plated finish keeps rust off the hardware.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Material: Polyurethane construction.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
Specifications
| Part Number | KSK124 |
| Part Name | Control Arm Bushing |
| Vehicle | 2002-2004 Subaru Outback H6 |
| Chassis Code | BE/BH/BP |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 35.1 mm |
| Bushing 2 Inner Diameter | 14.3 mm |
| Bushing Quantity | 12 Bushing |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 12 Bushings, 6 tubes, 8 Washers |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Service kit to suit Whiteline control arms KTA124 |
