Product Details

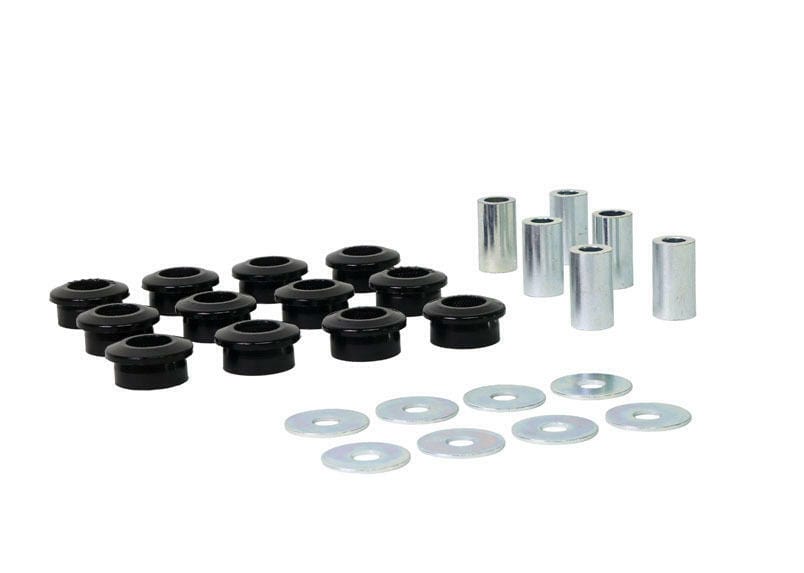

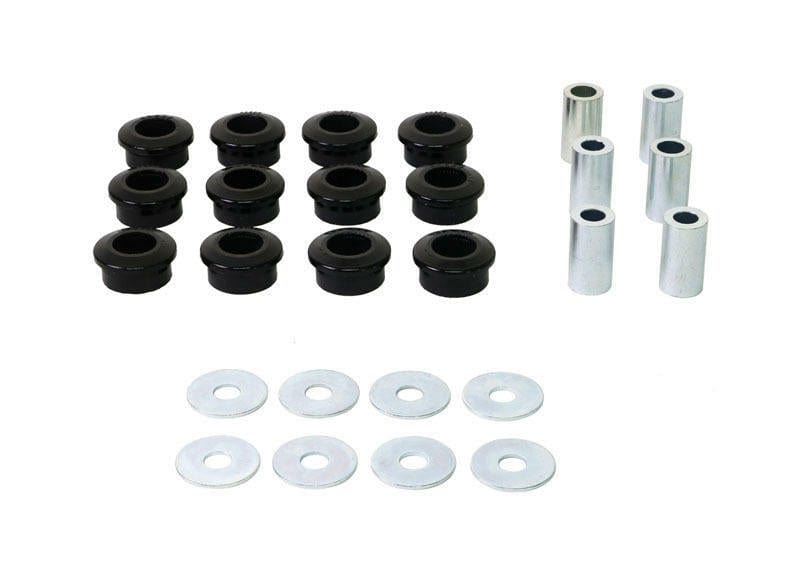

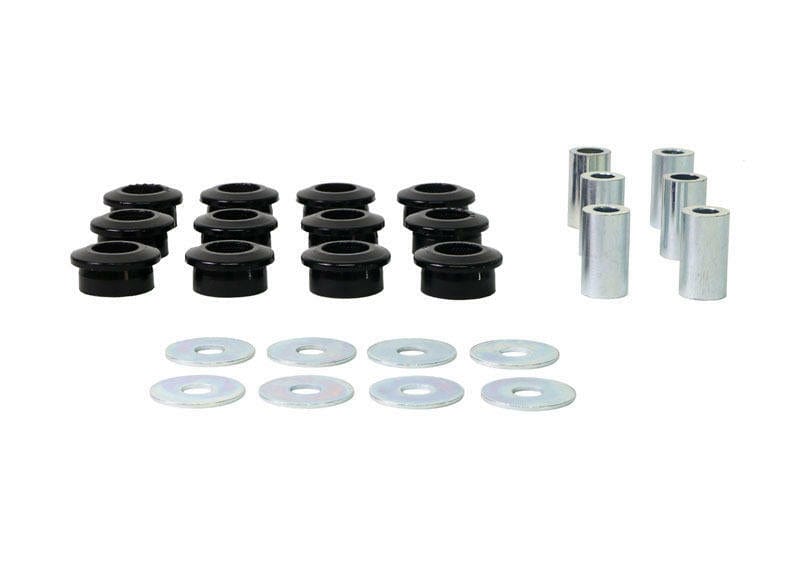

Made to fit the 2001-2004 Subaru Outback L.L. Bean (BE/BH/BP), the Rear Control Arm Service Kit from Whiteline. In the box: 12 bushings, 6 tubes, and 8 washers. The listing names the L.L. Bean trim. Position: rear. The part number is KSK124. Whiteline's note for this fit: Service kit to suit Whiteline control arms KTA124.
A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as moderate and lists about 2 hours. Get the car aligned once it is back on the ground. Working on the same car? We also list Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Front Bushing, and 14mm Adjustable Front Camber Bolts for the Outback.
Features
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Material: The part is made of polyurethane.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
Specifications
| Part Number | KSK124 |
| Part Name | Control Arm Bushing |
| Vehicle | 2001-2004 Subaru Outback L.L. Bean |
| Drivetrain | AWD |
| Chassis Code | BE/BH/BP |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 35.1 mm |
| Bushing 2 Inner Diameter | 14.3 mm |
| Bushing Quantity | 12 Bushing |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 12 Bushings, 6 tubes, 8 Washers |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Service kit to suit Whiteline control arms KTA124 |
