Product Details

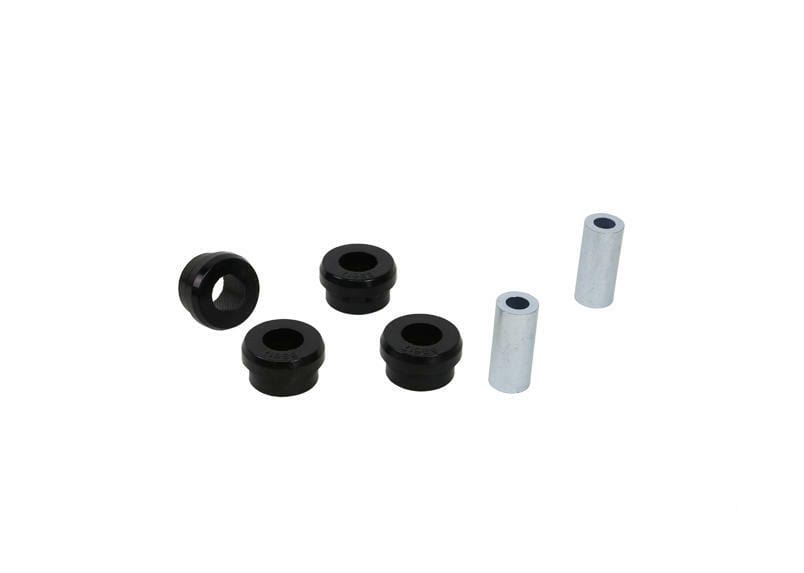

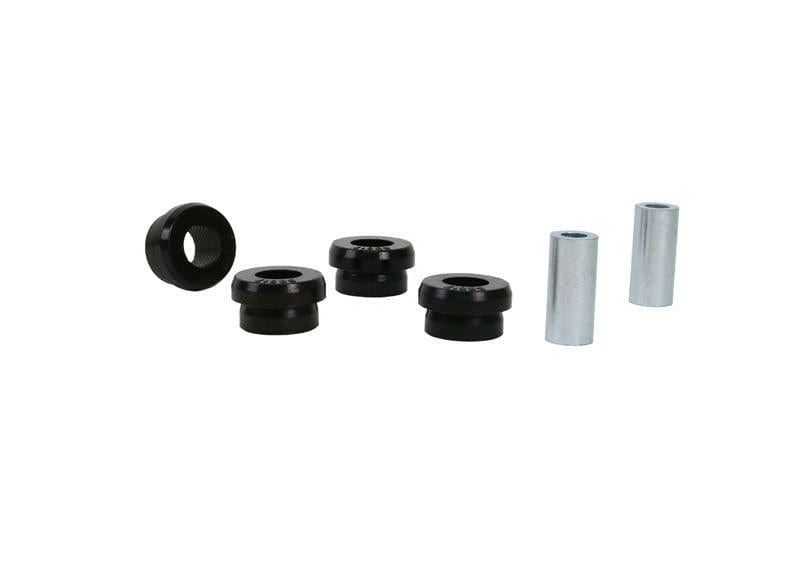

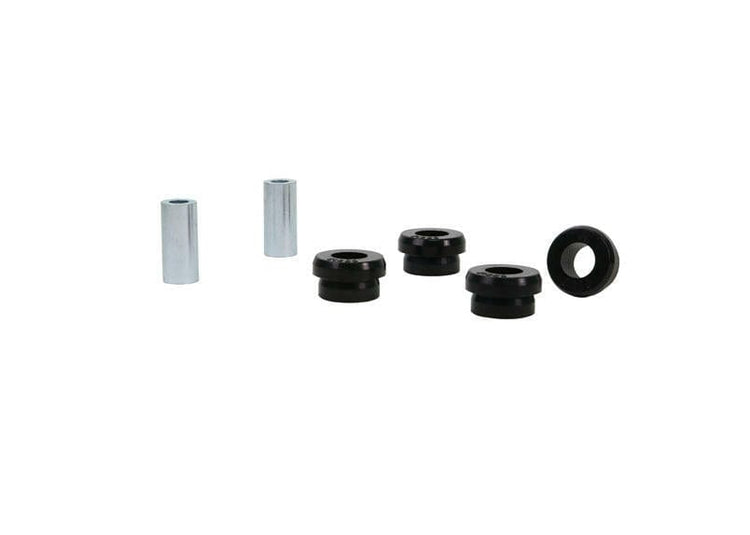

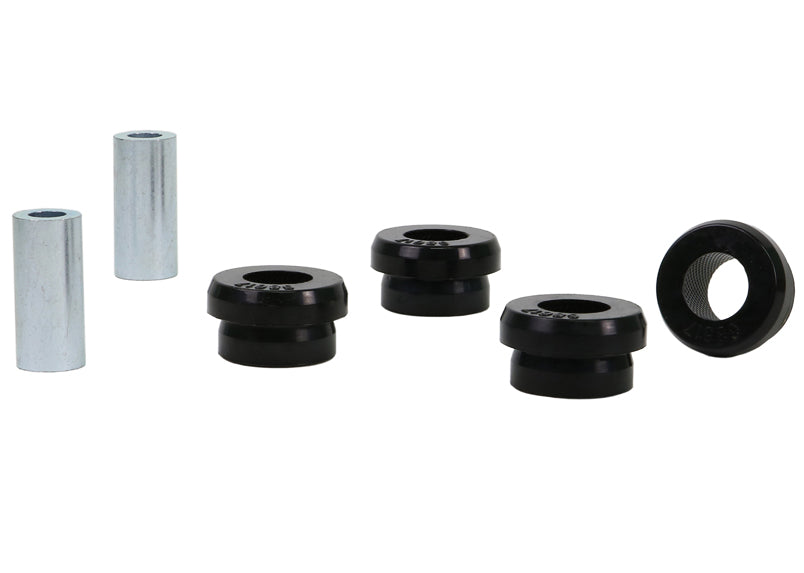

This Whiteline Rear Control Arm Lower Rear Outer Bushing fits the 2008-2016 Volkswagen Eos Komfort (1F). Position: rear. Part number W63554. You receive 4 bushings and 2 tubes.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.

Whiteline rates the install as moderate and lists about 3 hours. An alignment is required after installation. To go with it on the Volkswagen Eos, see Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Install guide: Whiteline packs an install guide with it.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Material: Built from polyurethane.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
Specifications
Part Number W63554
Part Name Control Arm Bushing
Vehicle 2008-2016 Volkswagen Eos Komfort
Chassis Code 1F
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 36.7 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008VolkswagenEosFWD
2009VolkswagenEosFWD
2010VolkswagenEosFWD
2011VolkswagenEosFWD
2012VolkswagenEosFWD
2013VolkswagenEosFWD
2014VolkswagenEosFWD
2015VolkswagenEosFWD
2016VolkswagenEosFWD
