Product Details

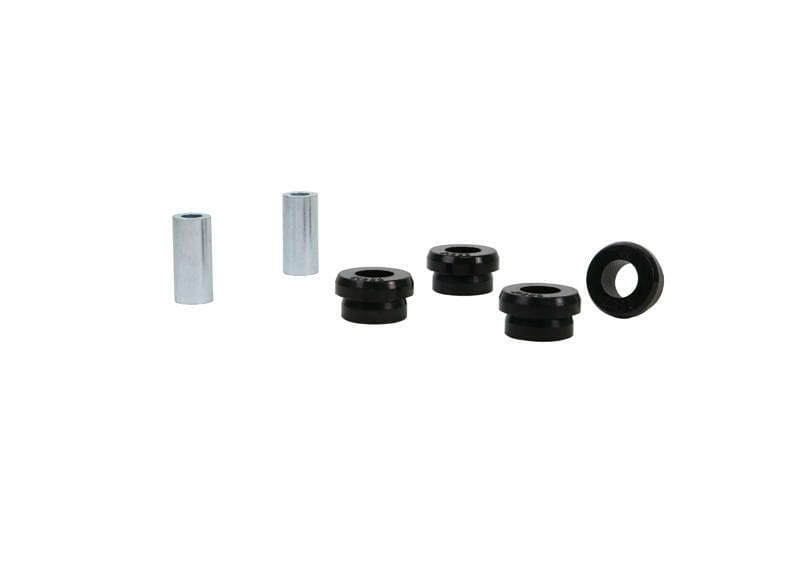

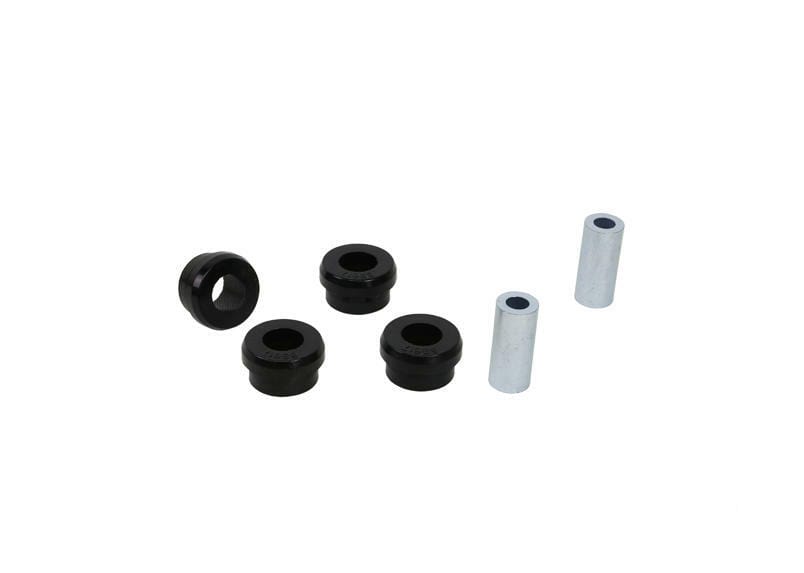

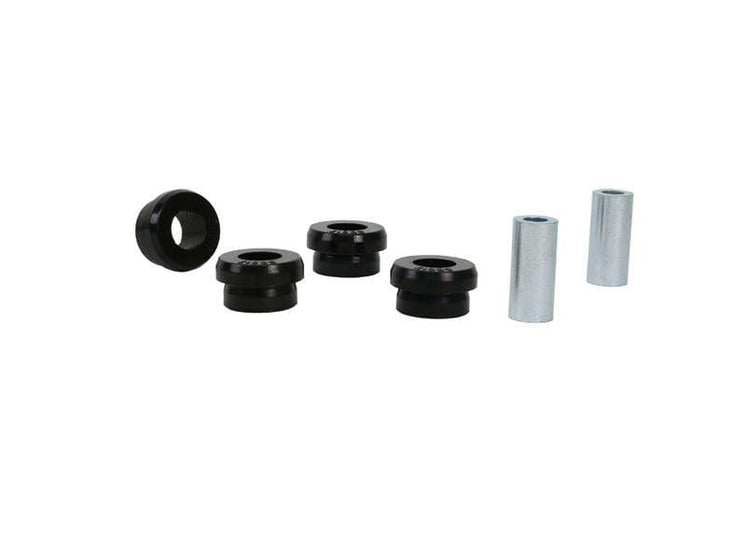

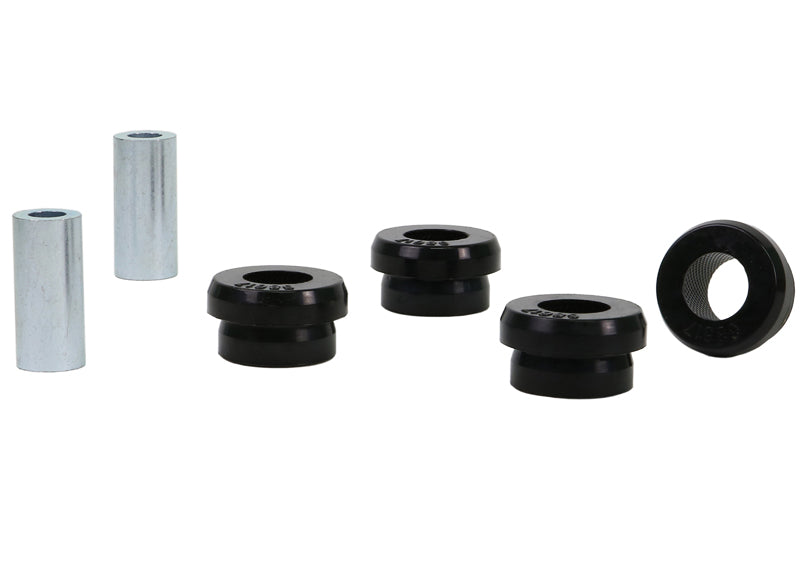

This Whiteline Rear Control Arm Lower Rear Outer Bushing fits the 2008-2013 Volkswagen Eos Lux (1F). Placement: rear. The kit contains 4 bushings and 2 tubes. Part number W63554.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.

Whiteline rates the install as moderate and lists about 3 hours. An alignment is required after installation. We also list Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link for the Volkswagen Eos.

Features

  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Install guide: An install guide comes in the box.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Material: The part is made of polyurethane.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
Specifications
Part Number W63554
Part Name Control Arm Bushing
Vehicle 2008-2013 Volkswagen Eos Lux
Chassis Code 1F
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 36.7 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008VolkswagenEosFWD
2009VolkswagenEosFWD
2010VolkswagenEosFWD
2011VolkswagenEosFWD
2012VolkswagenEosFWD
2013VolkswagenEosFWD
