Product Details

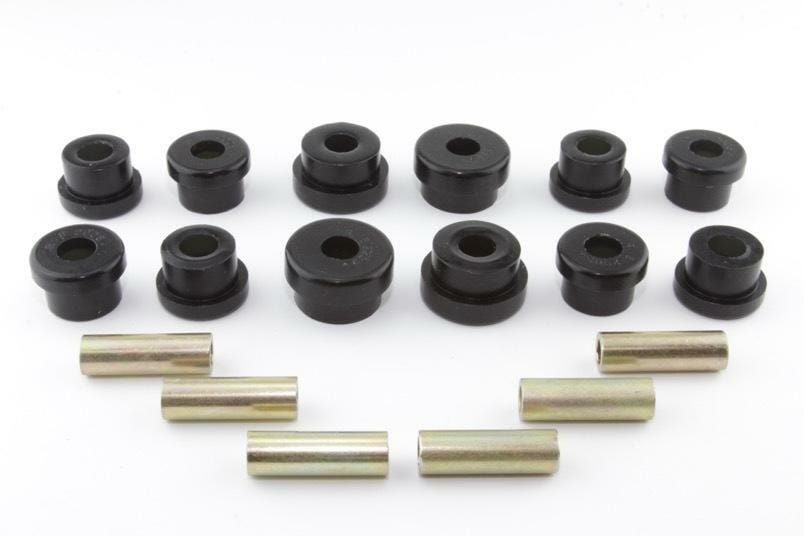

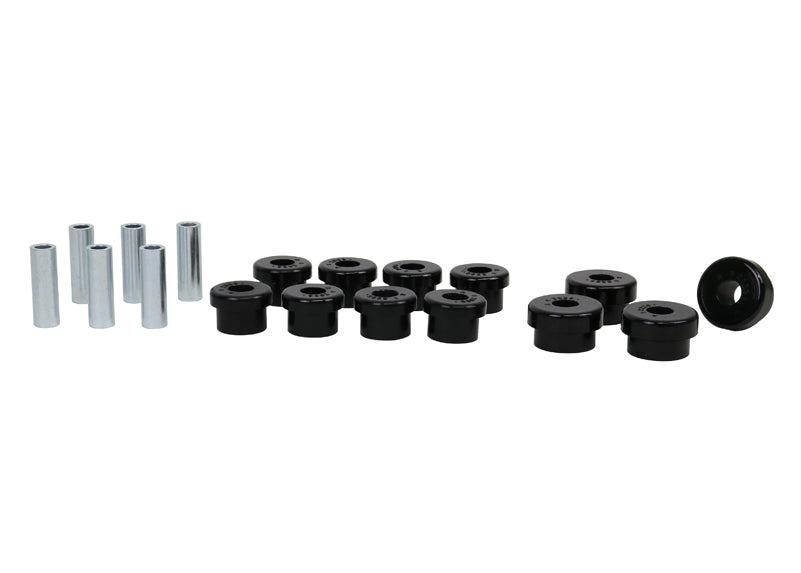

This Whiteline Rear Control Arm Lower Rear Inner and Outer Bushing fits the 1989-2000 Honda Civic Si (EF/EG/EK). Placement: rear. Application note: Suits models with cast arm: includes shock absorber to control arm bushings. Order it as part number W62005. In the box: 12 bushings and 6 tubes.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Expect a moderate job of about 4 hours. Get the car aligned once it is back on the ground. We also list Front Upper Control Arm Bushing Kit, Front Sway Bar Link Bushing (28.5mm OD), and Rear Sway Bar Link Bushing (28.5mm OD) for the Civic Si.

Features

  • Material: The part is made of polyurethane.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
Part Number W62005
Part Name Control Arm Bushing
Vehicle 1989-2000 Honda Civic Si
Drivetrain FWD
Chassis Code EF/EG/EK
Bushing 1 Inner Diameter 10.2 mm
Bushing 1 Outer Diameter 31 mm
Bushing Quantity 12 Bushing
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 4
Kit Contents 12 Bushings, 6 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Suits models with cast arm - includes shock absorber to control arm bushings

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1989HondaCivic SiFWDSuits models with cast arm - includes shock absorber to control arm bushings
1990HondaCivic SiFWDSuits models with cast arm - includes shock absorber to control arm bushings
1991HondaCivic SiFWDSuits models with cast arm - includes shock absorber to control arm bushings
1992HondaCivic SiFWDSuits models with cast arm - includes shock absorber to control arm bushings
1993HondaCivic SiFWDSuits models with cast arm - includes shock absorber to control arm bushings
1994HondaCivic SiFWDSuits models with cast arm - includes shock absorber to control arm bushings
1995HondaCivic SiFWDSuits models with cast arm - includes shock absorber to control arm bushings
1996HondaCivic SiFWDSuits models with cast arm - includes shock absorber to control arm bushings
1997HondaCivic SiFWDSuits models with cast arm - includes shock absorber to control arm bushings
1998HondaCivic SiFWDSuits models with cast arm - includes shock absorber to control arm bushings
1999HondaCivic SiFWDSuits models with cast arm - includes shock absorber to control arm bushings
2000HondaCivic SiFWDSuits models with cast arm - includes shock absorber to control arm bushings
