Product Details

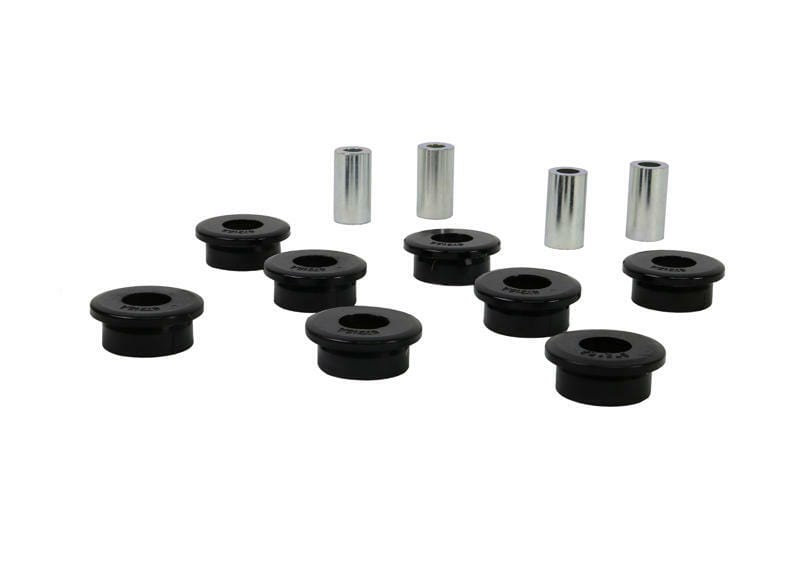

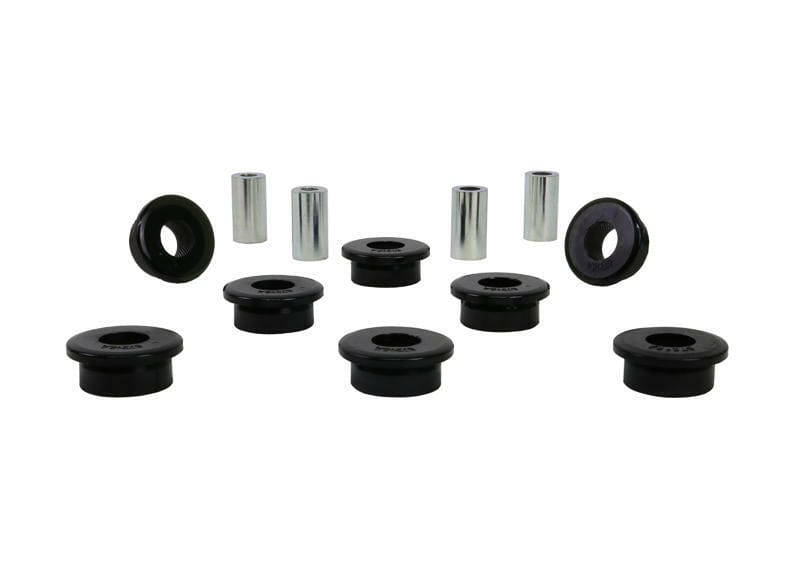

This Whiteline Rear Lower Outer Control Arm Bushing fits the 2000-2006 Honda CR-V SE (RD4). Whiteline's note for this fit: Suits models with cast arms. Position: rear. The kit contains 8 bushings and 4 tubes. Order it as part number W63382. Chassis code: RD4.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Whiteline rates the install as moderate and lists about 3 hours. Get the car aligned once it is back on the ground. We also list Front Control Arm Lower Inner Rear Bushing, Rear Sway Bar Link, and 16mm Adjustable Front Camber Bolts for the CR-V.

Features

  • Finish: A powder coated finish resists corrosion and wear.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Material: Built from polyurethane.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
Specifications
Part Number W63382
Part Name Control Arm Bushing
Vehicle 2000-2006 Honda CR-V SE
Drivetrain FWD/AWD
Chassis Code RD4
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 43.5 mm
Bushing 2 Inner Diameter 12.2 mm
Bushing Quantity 8 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 8 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Includes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2000HondaCR-VFWDIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2000HondaCR-VAWDIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2001HondaCR-VFWDIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2001HondaCR-VAWDIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2002HondaCR-VFWDIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2002HondaCR-VAWDIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2003HondaCR-VFWDIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2003HondaCR-VAWDIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2004HondaCR-VFWDIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2004HondaCR-VAWDIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2005HondaCR-VFWDIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2005HondaCR-VAWDIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2006HondaCR-VFWDIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2006HondaCR-VAWDIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
