Product Details

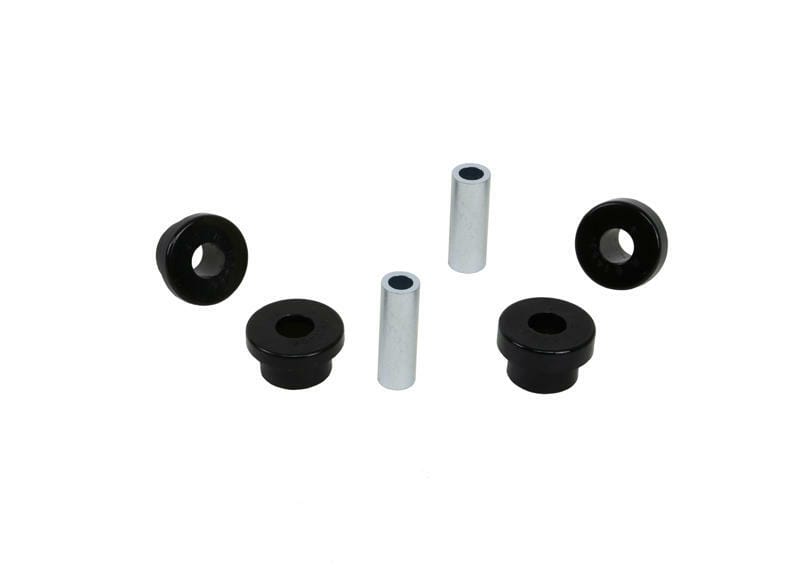

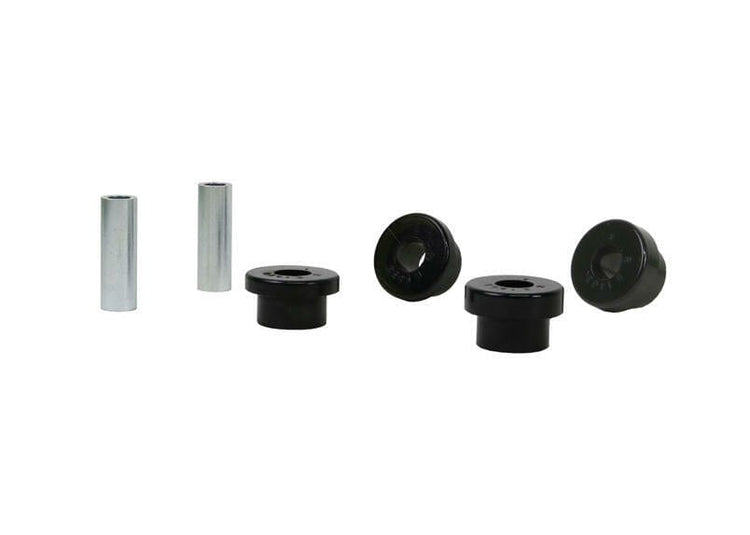

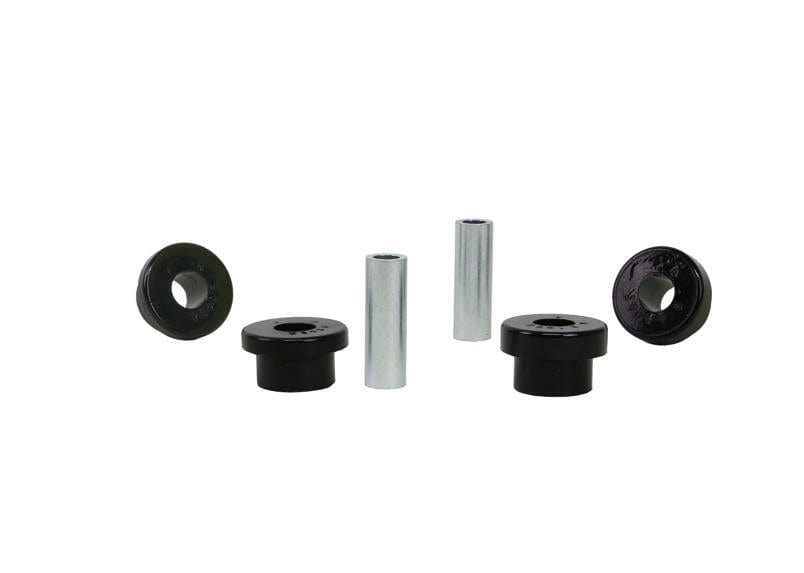

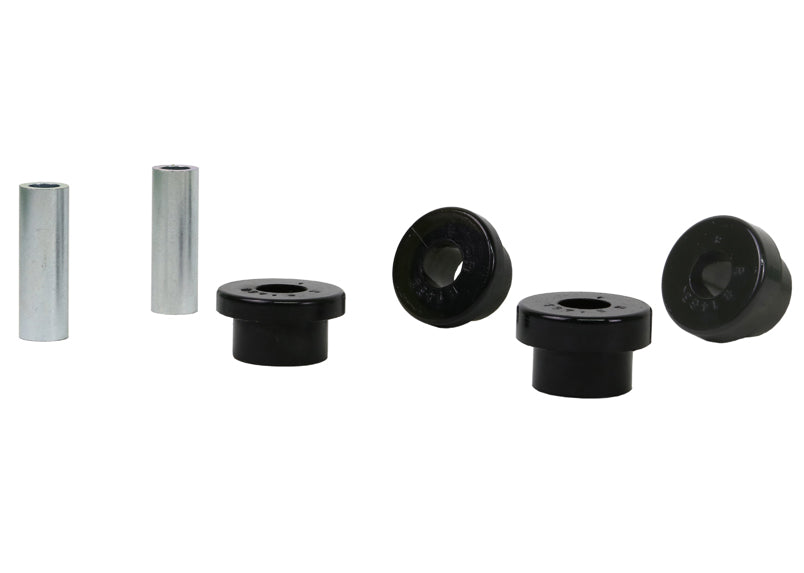

This Whiteline Rear Control Arm Lower Outer Bushing fits the 1990 Suzuki Swift GL, S (SA). Included: 4 bushings and 2 tubes. Whiteline part number: W61463. This part is for the rear of the vehicle.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a moderate job of about 3 hours. An alignment is required after installation. To go with it on the Swift, see 12mm Adjustable Front Camber Bolts, Front Lower Inner Front Control Arm Bushing Kit, and Front Sway Bar Link Lower Bushing.

Features

  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Material: Built from polyurethane.
Specifications
Part Number W61463
Part Name Control Arm Bushing
Vehicle 1990 Suzuki Swift GL, S
Chassis Code SA
Bushing 1 Inner Diameter 10.2 mm
Bushing 1 Outer Diameter 30.5 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1990SuzukiSwiftFWD
