Product Details

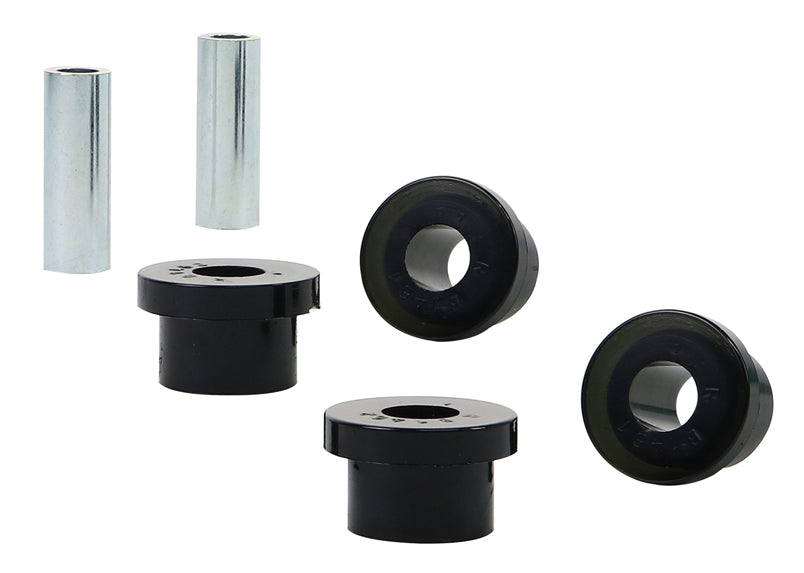

This Whiteline Rear Control Arm Lower Inner Rear Bushing fits the 1989 Suzuki Swift GTI (SA). The part number is W61461. In the box: 4 bushings and 2 tubes. Position: rear.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated moderate, with about 3 hours of work listed. An alignment is required after installation. To go with it on the Swift, see 12mm Adjustable Front Camber Bolts, Front Lower Inner Front Control Arm Bushing Kit, and Front Sway Bar Link Lower Bushing.
Features
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Material: Made from polyurethane.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
Specifications
| Part Number | W61461 |
| Part Name | Control Arm Bushing |
| Vehicle | 1989 Suzuki Swift GTI |
| Chassis Code | SA |
| Bushing 1 Inner Diameter | 10.2 mm |
| Bushing 1 Outer Diameter | 30.5 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
