Product Details

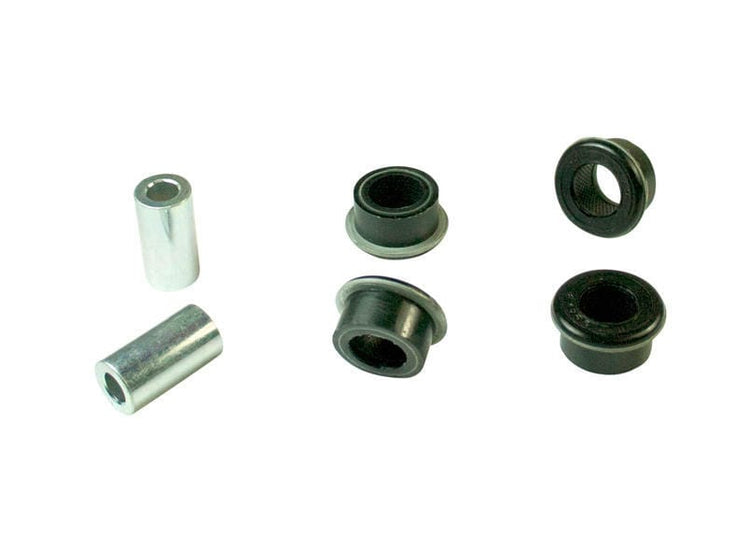

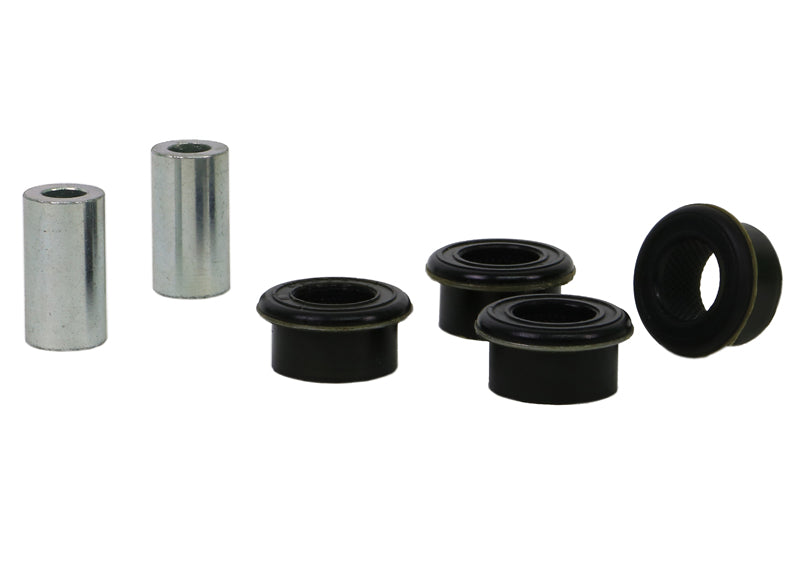

This Whiteline Rear Control Arm Lower Inner Bushing fits the 2013-2016 Scion FR-S Base (ZN6). Application note: Standard Replacement. Patent Pending: US-2014-009157-A1. This part is for the rear of the vehicle. Included: 4 bushings and 2 tubes. Order it as part number W63428.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as moderate and lists about 3 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the FR-S: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Material: Made from polyurethane.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
Part Number W63428
Part Name Control Arm Bushing
Vehicle 2013-2016 Scion FR-S Base
Chassis Code ZN6
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 33.8 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Standard Replacement. Patent Pending - US-2014-009157-A1

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2013ScionFR-SRWDStandard Replacement. Patent Pending - US-2014-009157-A1
2014ScionFR-SRWDStandard Replacement. Patent Pending - US-2014-009157-A1
2015ScionFR-SRWDStandard Replacement. Patent Pending - US-2014-009157-A1
2016ScionFR-SRWDStandard Replacement. Patent Pending - US-2014-009157-A1
