Product Details

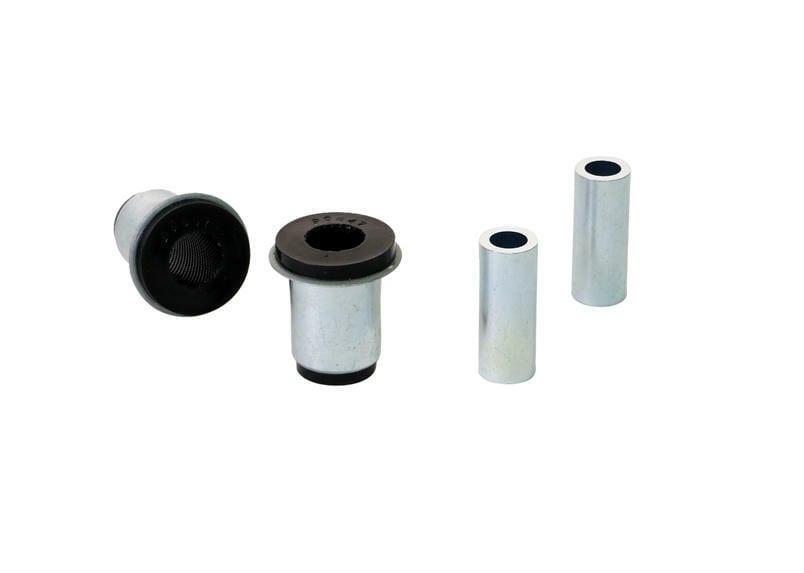

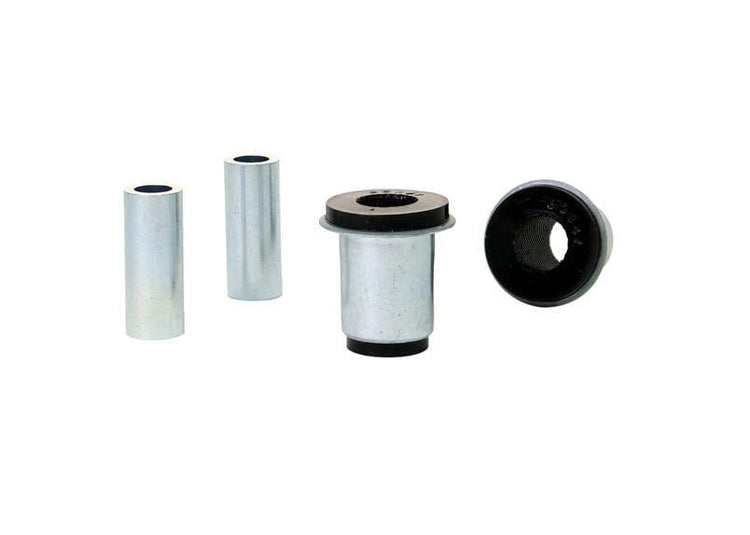

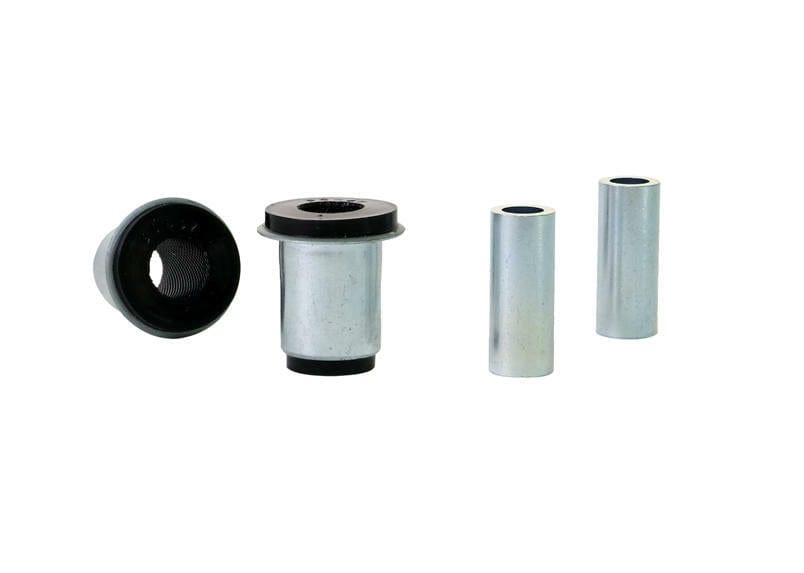

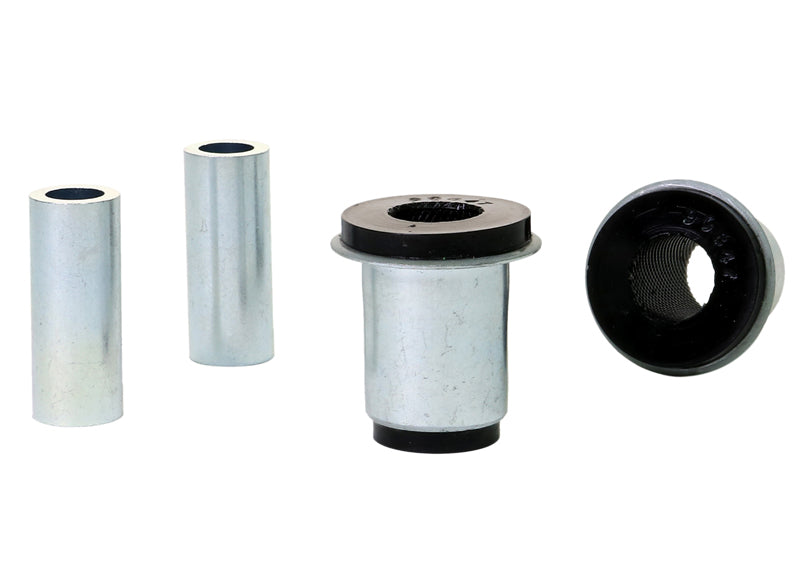

Here is the Whiteline Rear Control Arm Lower Inner Bushing for the 2010-2013 Lexus IS250 C. Placement: rear. Chassis code: XE20. In the box: 2 shell bushings and 2 tubes. Part number W63581. Trim named on the listing: C.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as difficult and lists about 3 hours. Plan on a wheel alignment afterward. To go with it on the IS250, see Front Control Arm Lower Inner Rear Bushing, Rear Differential Bushing - Front Mount Kit, and Heavy Duty Blade Adjustable 18mm Rear Sway Bar.
Features
- Install guide: Whiteline packs an install guide with it.
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Corrosion protection: Plated finish keeps rust off the hardware.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Material: The part is made of polyurethane.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
Specifications
| Part Number | W63581 |
| Part Name | Control Arm Bushing |
| Vehicle | 2010-2013 Lexus IS250 C |
| Chassis Code | XE20 |
| Bushing 1 Inner Diameter | 14.3 mm |
| Bushing 1 Outer Diameter | 35.5 mm |
| Bushing 2 Outer Diameter | 34.5 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
