Product Details

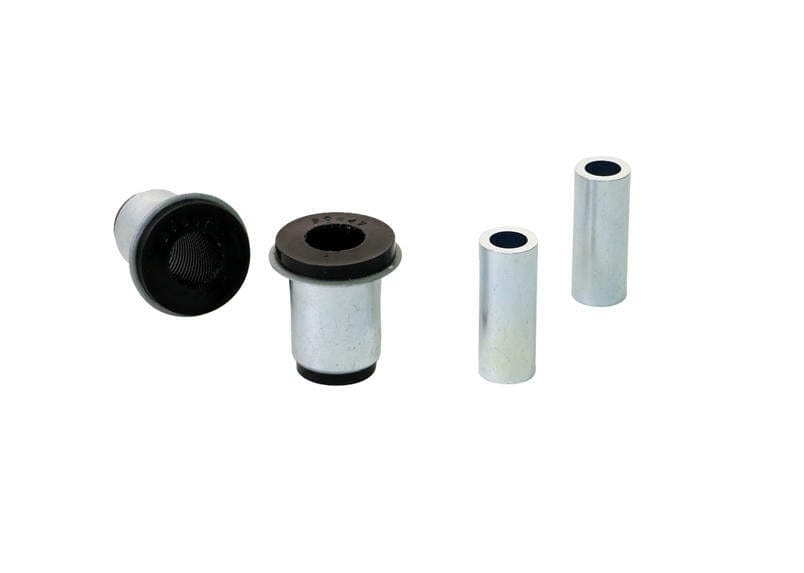

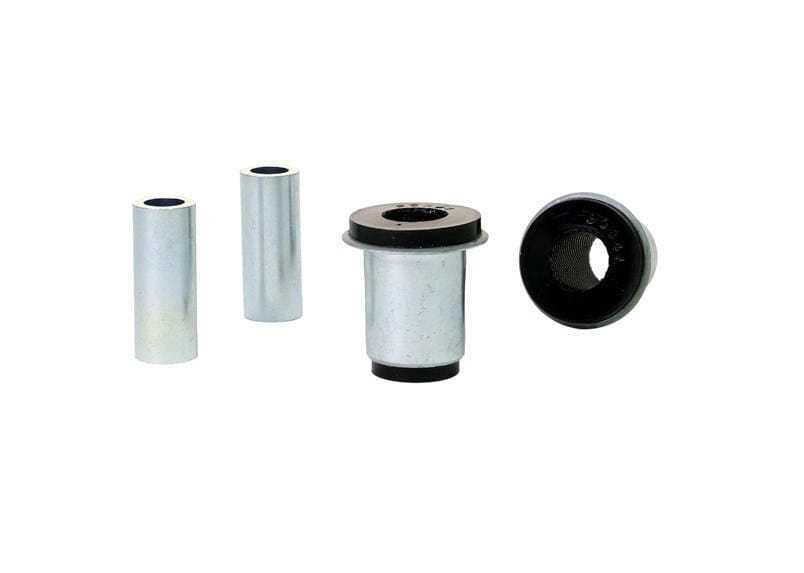

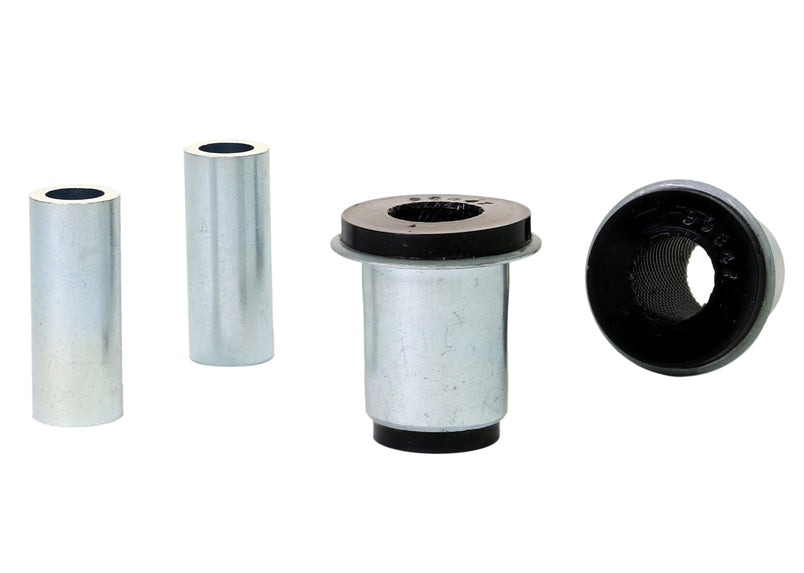

Looking for a rear control arm bushing for your 2006-2013 Lexus IS250 (XE20)? The Whiteline Rear Control Arm Lower Inner Bushing is made for it. This part is for the rear of the vehicle. In the box: 2 shell bushings and 2 tubes. Order it as part number W63581.
Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.
Installation is rated difficult, with about 3 hours of work listed. Get the car aligned once it is back on the ground. Working on the same car? We also list Front Control Arm Lower Inner Rear Bushing, Rear Differential Bushing - Front Mount Kit, and Heavy Duty Blade Adjustable 18mm Rear Sway Bar for the IS250.
Features
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
- Bonded design: The bushing is bonded for strength where loads are highest.
- Corrosion protection: A protective plating covers the metal components to guard against corrosion.
- Material: Polyurethane construction.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
Specifications
| Part Number | W63581 |
| Part Name | Control Arm Bushing |
| Vehicle | 2006-2013 Lexus IS250 |
| Chassis Code | XE20 |
| Bushing 1 Inner Diameter | 14.3 mm |
| Bushing 1 Outer Diameter | 35.5 mm |
| Bushing 2 Outer Diameter | 34.5 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
