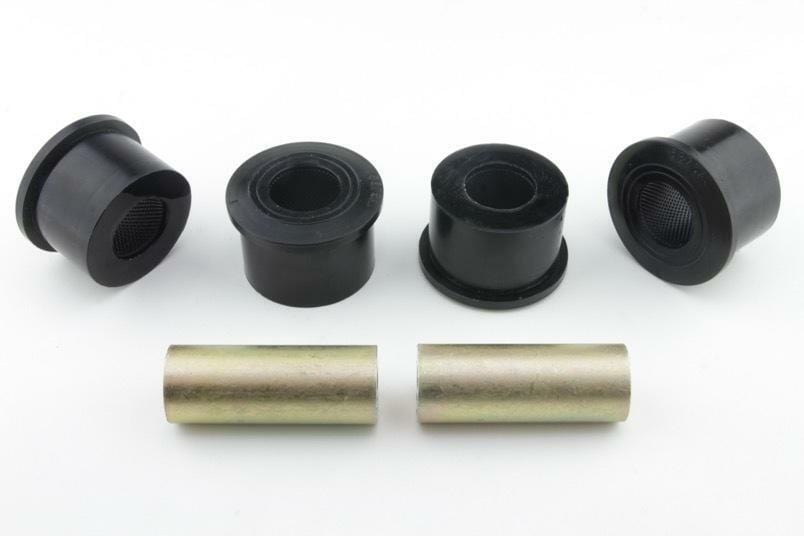

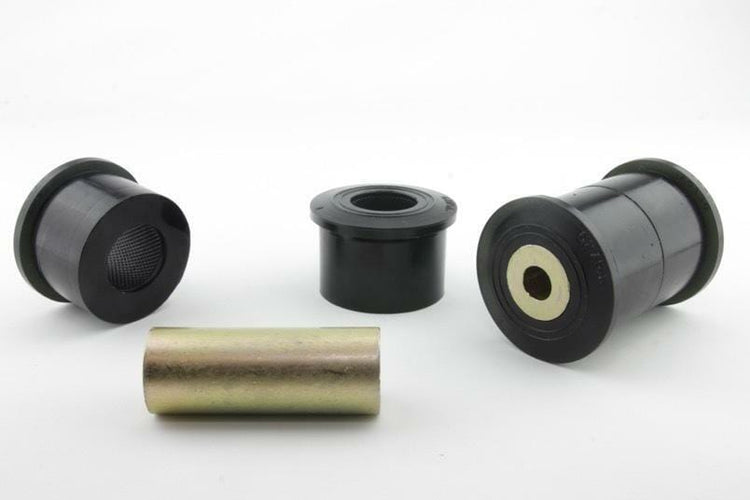

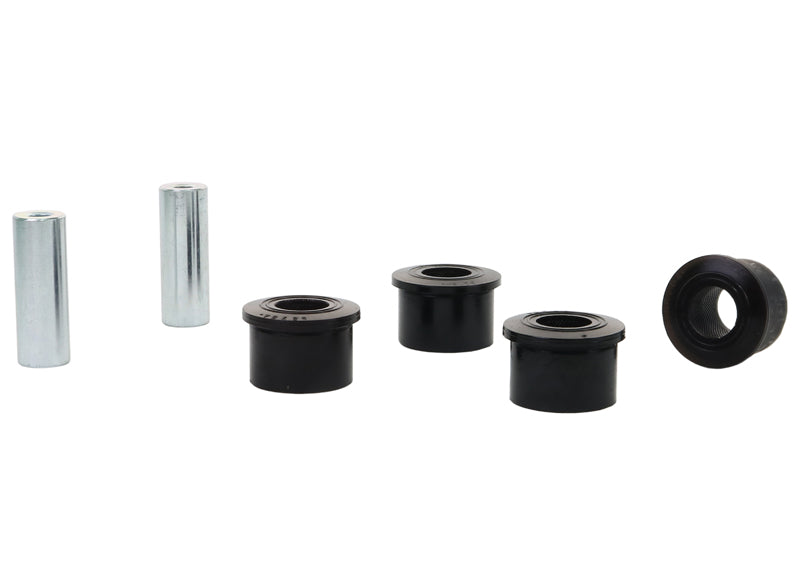

This Whiteline Rear Control Arm Lower Inner Bushing fits the 2005 Dodge Magnum SXT Special Edition (LX). Included: 4 bushings and 2 tubes. Application note: Suits inner mounting point only as outer is a spherical/rose joint. The part number is W63339. Position: rear.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. The polyurethane used here deflects much less than the original rubber under the same load.

Expect a moderate job of about 3 hours. An alignment is required after installation. Other Whiteline parts we list for the Magnum: Rear Subframe Mount Bushing, Front and Rear Sway Bar Kit, and Front Lower Radius Arm Bushing.

Features

  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Material: Polyurethane construction.
Specifications
Part Number W63339
Part Name Control Arm Bushing
Vehicle 2005 Dodge Magnum SXT Special Edition
Drivetrain RWD/AWD
Chassis Code LX
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 51.5 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Suits inner mounting point only as outer is a spherical/rose joint

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005DodgeMagnumRWDSuits inner mounting point only as outer is a spherical/rose joint
2005DodgeMagnumAWDSuits inner mounting point only as outer is a spherical/rose joint
