Product Details

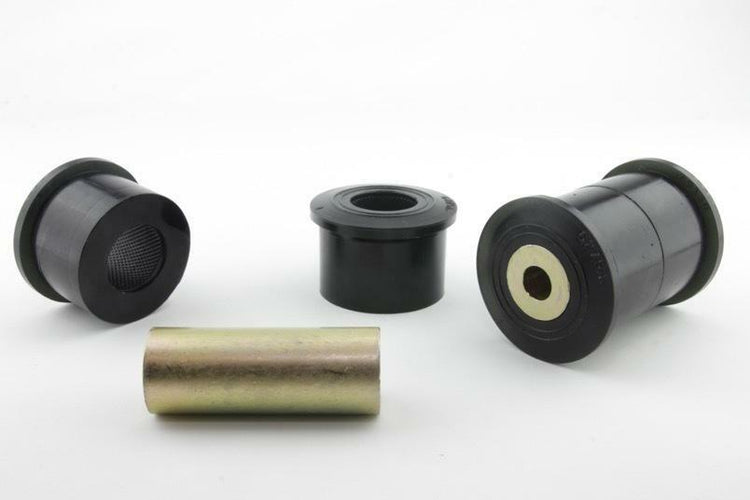

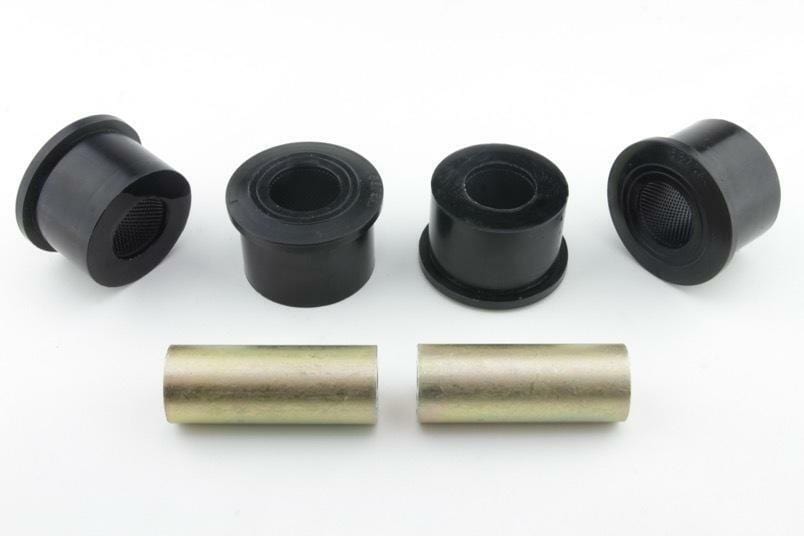

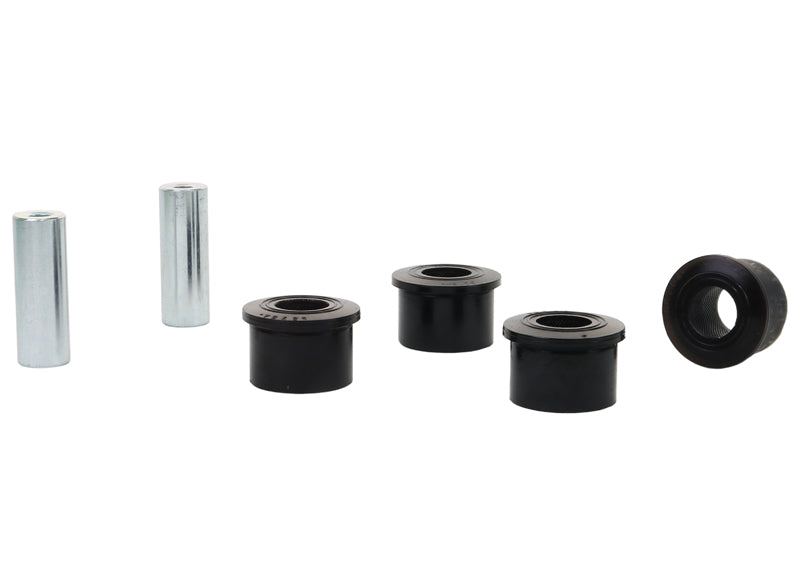

This Whiteline Rear Control Arm Lower Inner Bushing fits the 2005-2010 Chrysler 300 SRT8 C (LX). Position: rear. Part number W63339. Included: 4 bushings and 2 tubes. Application note: Suits inner mounting point only as outer is a spherical/rose joint.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.

Expect a moderate job of about 3 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the 300 SRT8: Rear Subframe Mount Bushing, Front and Rear Sway Bar Kit, and Front Lower Radius Arm Bushing.

Features

  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Material: Built from polyurethane.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
Specifications
Part Number W63339
Part Name Control Arm Bushing
Vehicle 2005-2010 Chrysler 300 SRT8 C
Drivetrain RWD
Chassis Code LX
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 51.5 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Suits inner mounting point only as outer is a spherical/rose joint

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005Chrysler300 SRT8RWDSuits inner mounting point only as outer is a spherical/rose joint
2006Chrysler300 SRT8RWDSuits inner mounting point only as outer is a spherical/rose joint
2007Chrysler300 SRT8RWDSuits inner mounting point only as outer is a spherical/rose joint
2008Chrysler300 SRT8RWDSuits inner mounting point only as outer is a spherical/rose joint
2009Chrysler300 SRT8RWDSuits inner mounting point only as outer is a spherical/rose joint
2010Chrysler300 SRT8RWDSuits inner mounting point only as outer is a spherical/rose joint
