Product Details

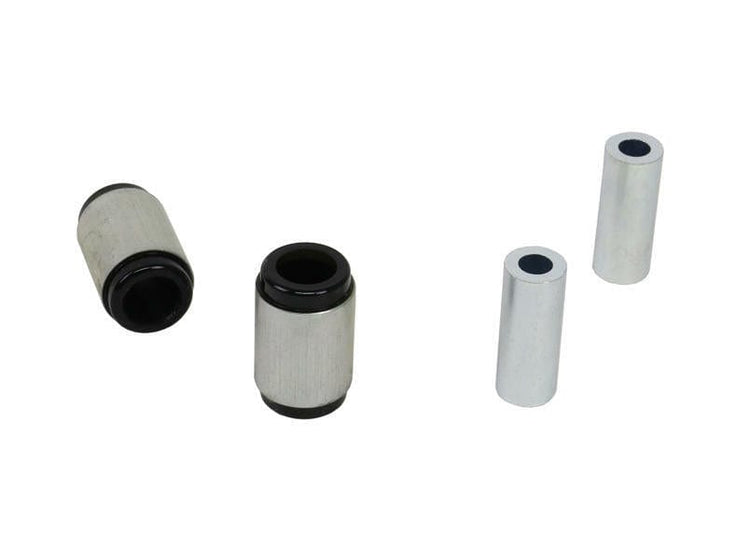

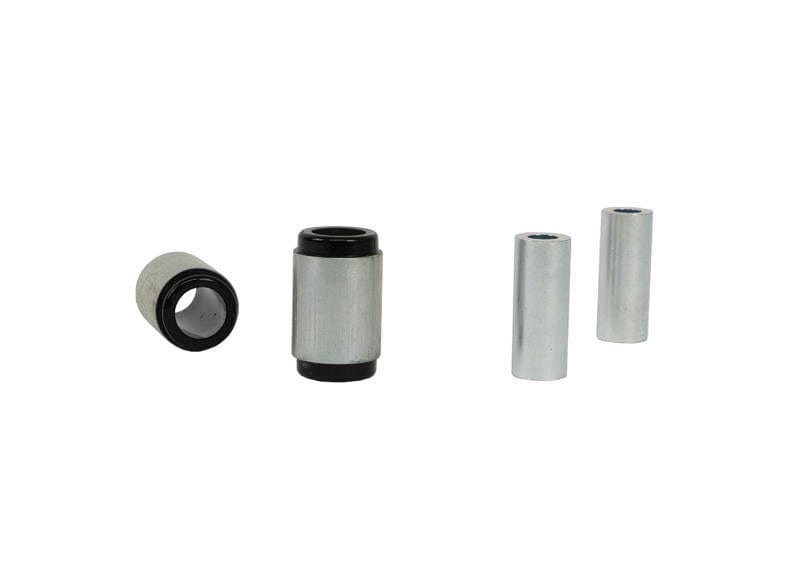

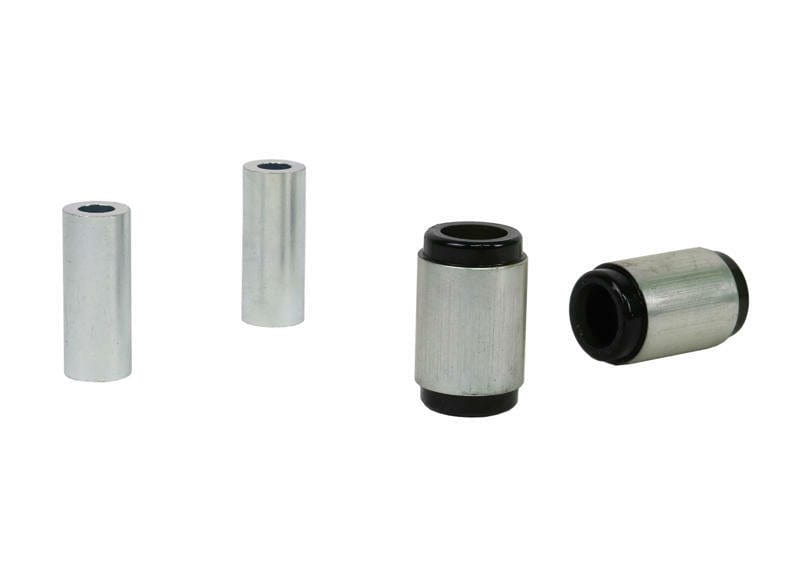

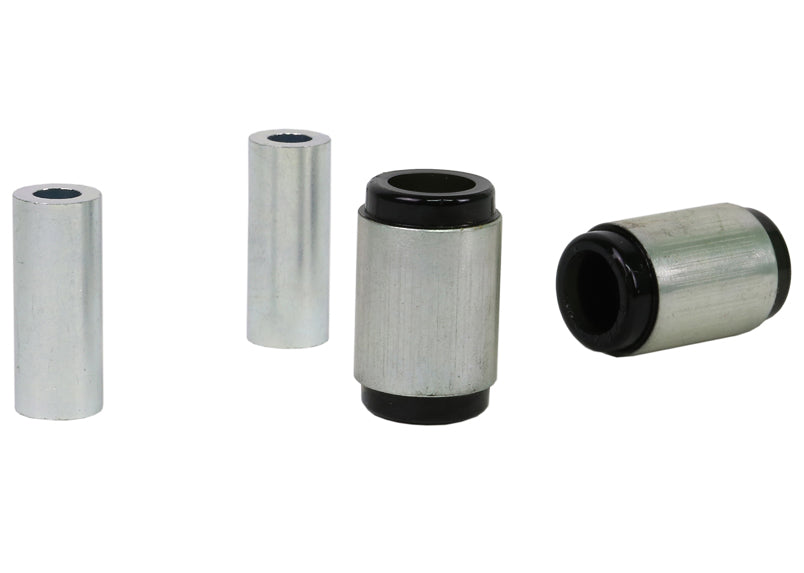

This Whiteline Rear Control Arm Lower Inner Bushing fits the 1996-1999 BMW 328is 3 Series (E36). You receive 2 shell bushings and 2 tubes. Placement: rear. Whiteline part number: W62625.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as difficult and lists about 4 hours. Get the car aligned once it is back on the ground. To go with it on the 328is 3 Series, see Adjustable Front Sway Bar Link, Front Strut Tower Brace, and Front Control Arm Lower Inner Rear Bushing.
Features
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Corrosion protection: Plated finish keeps rust off the hardware.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Bonded design: The bushing is bonded for strength where loads are highest.
- Material: Polyurethane construction.
Specifications
| Part Number | W62625 |
| Part Name | Control Arm Bushing |
| Vehicle | 1996-1999 BMW 328is 3 Series |
| Chassis Code | E36 |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 35.3 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 4 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
