Product Details

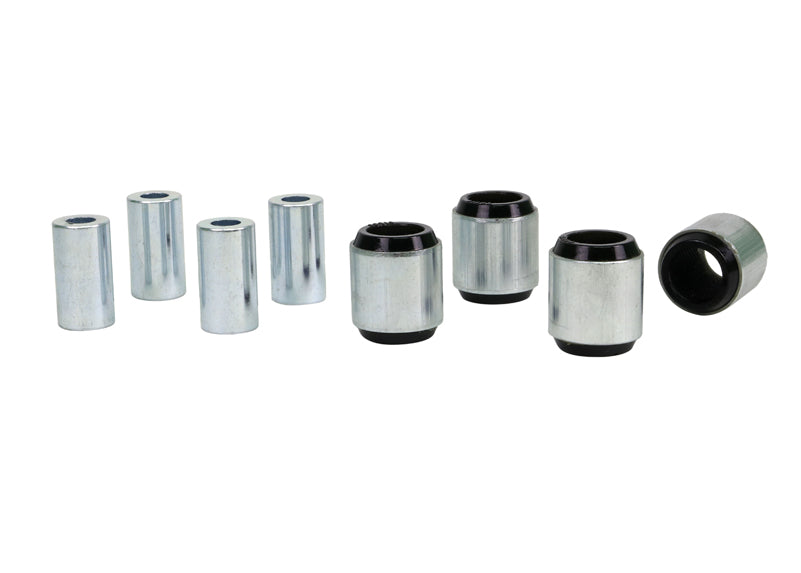

This Whiteline Rear Control Arm Lower Inner and Outer Bushing fits the 2017-2021 BMW 230i xDrive 2 Series. Whiteline's note for this fit: Fits OEM Arm 33-32-6-792-533. Part number W63594. It is listed for the F22/F23 chassis. You receive 4 shell bushings and 4 tubes. Position: rear.
Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.
Installation is rated moderate, with about 2 hours of work listed. Plan on a wheel alignment afterward. Working on the same car? We also list Adjustable Rear Sway Bar Link, Rear Subframe Mount Bushing, and Rear Differential Mount Bushing for the 230i xDrive 2 Series.
Features
- Material: Polyurethane construction.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Bonded design: The bushing is bonded for extra strength under heavy loads.
- Corrosion protection: Plated finish keeps rust off the hardware.
- Install guide: Written install instructions are included with the part.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
Specifications
| Part Number | W63594 |
| Part Name | Control Arm Bushing |
| Vehicle | 2017-2021 BMW 230i xDrive 2 Series |
| Chassis Code | F22/F23 |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 37 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Fits OEM Arm 33-32-6-792-533 |
